SRS Unit (View 251)

YEL
Under middle of dash
Connector A
- On dashboard wire harness B

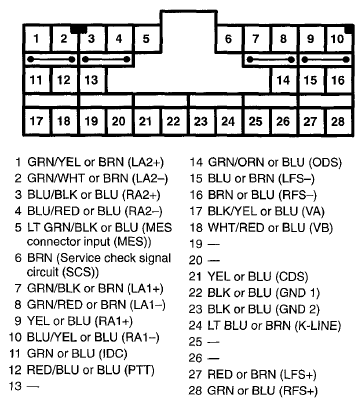

  Fig 1: SRS Unit Connector Terminal - Connector A (View 251)
Connector B
- On floor wire harness (right branch)

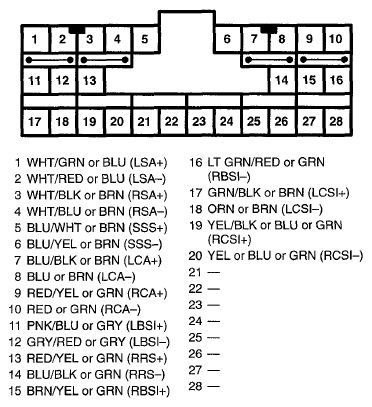

  Fig 2: SRS Unit Connector Terminal - Connector B (View 251)
Connector C
- On floor wire harness (right branch)

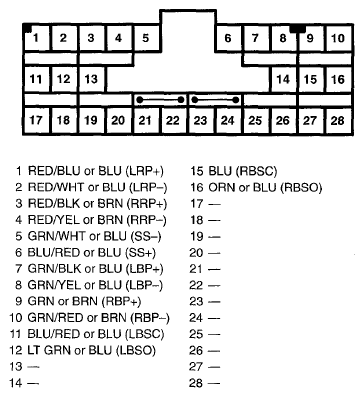

  Fig 3: SRS Unit Connector Terminal - Connector C (View 251)
