CMP Pulse Plate B Replacement

Remove the cylinder head cover (see CYLINDER HEAD COVER REMOVAL ).
Hold the exhaust camshaft with an open-end wrench, then loosen the bolt.

Fig 1: Holding Exhaust Camshaft With Open-End Wrench
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the camshaft position (CMP) pulse plate B.

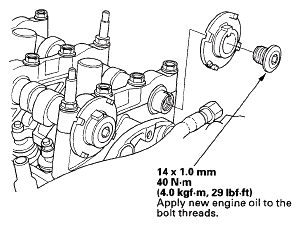

Fig 2: Camshaft Position (CMP) Pulse Plate B With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the CMP pulse plate B in the reverse order of removal.
