Lower Transmission Mount Removal and Installation: Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Install the lower transmission mount (A), then loosely install the new lower transmission mount mounting bolt (B) and tighten the lower transmission mount mounting bolts (C).
5-speed A/T model

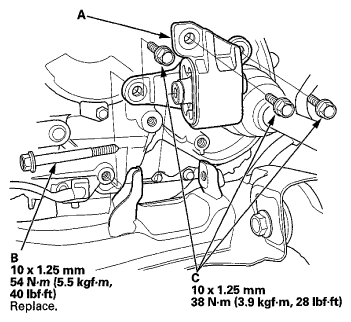

Fig 1: Transmission Mount Mounting Bolts With Torque Specifications (5-Speed A/T Model)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

6-speed A/T model

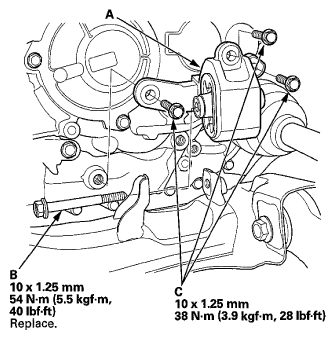

Fig 2: Transmission Mount Mounting Bolts With Torque Specifications (6-Speed A/T Model)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the transmission jack.
Tighten the lower transmission mount mounting bolts.
Install the front inner fender (see FRONT INNER FENDER REPLACEMENT ).
Install the splash shield (see FRONT SPLASH SHIELD REPLACEMENT ).
