Side Engine Mount Removal and Installation: Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Check the label on the PCM to see if it was made by Keihin or Continental. Refer to the Fuel and Emissions Systems' General Troubleshooting Information for more details (see GENERAL TROUBLESHOOTING INFORMATION ).

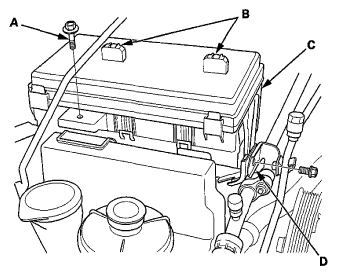

Remove the bolt (A) and the clamps (B) from the under-hood fuse/relay box (C).

Fig 1: Identifying Under-Hood Fuse/Relay Box Bolt And Clamps
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the A/C line bracket (D).

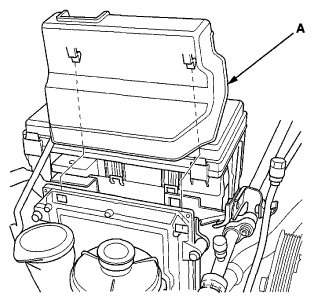

Remove the PCM cover (A).

Fig 2: Identifying PCM Cover (Keihin PCM)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 3: Identifying PCM Cover (Continental PCM)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the power steering reservoir (A) from the clamp.

Fig 4: Identifying Power Steering Reservoir
Courtesy of AMERICAN HONDA MOTOR CO., INC.

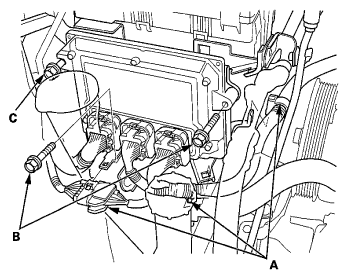

Keihin PCM: Remove the harness clamps (A) and the bolts (B), then loosen the bolt (C).

Fig 5: Identifying Harness Clamps Mounting Bolts (Keihin PCM)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

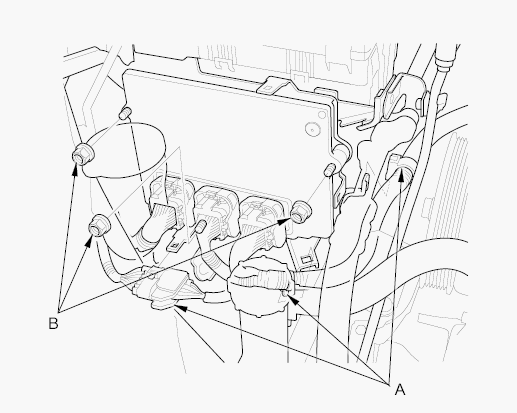

Continental PCM: Remove the harnes clamps (A) and the nuts (B).

Fig 6: Identifying Harness Clamps Mounting Bolts (Continental PCM)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

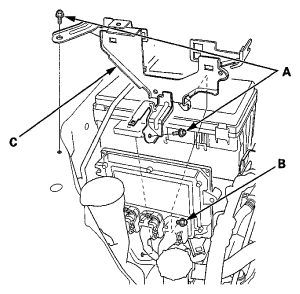

Keihin PCM: Remove the bolts (A) and loosen the bolt (B), then remove the PCM bracket (C).

Fig 7: Identifying PCM Bracket With Bolts (Keihin PCM)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

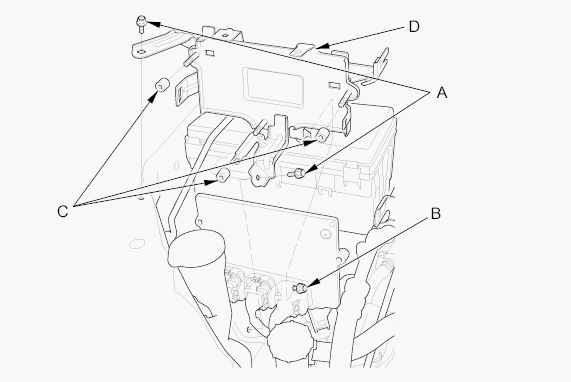

Continental PCM: Remove the bolts (A) and loosen the bolt (B), then remove the spacer (C) and the PCM bracket (D).

Fig 8: Identifying PCM Bracket With Bolts (Continental PCM)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Lift and support the engine with a jack and a wood block under the oil pan.
Remove the ground cable bracket (A), then remove the upper half of the side engine mount bracket (B).

Fig 9: Identifying Ground Cable Bracket And Side Engine Mount Bracket
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the wire harness bracket (A) and the side engine mount (B).

Fig 10: Identifying Wire Harness Bracket And Side Engine Mount
Courtesy of AMERICAN HONDA MOTOR CO., INC.
