Center Tray Replacement

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Remove these items:
- Center lower console
- Multi-purpose hook
Remove the center tray (A) from the center lower console (B).
1. Detach the harness clip (C).
2. Remove the screws.
3. Pull out the tray to detach the clip.

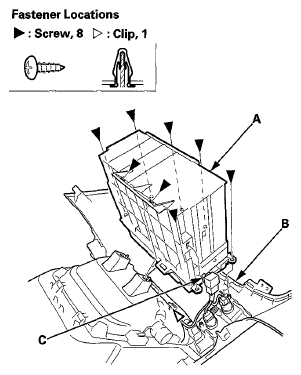

  Fig 1: Identifying Center Tray, Center Lower Console With Harness Clips
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the tray in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips into place securely.
