Power Mirror Replacement

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Take care not to scratch the door or the related parts.
  1. Lower the glass fully.
  2. Remove the door mirror cover (A)
    1. With your hand, carefully pull out the top edge of the door mirror cover to release the hooks (B) and detach the clips.
    2. With BSI: Disconnect the BSI alert indicator connector (C).
      NOTE: Be careful when removing and installing the door mirror cover, as its lower edge can damage the door panel.
      Fig 1: Identifying Door Mirror Cover With Hooks And Clips
      G06967571Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
  4. Disconnect the power mirror connector (A), and detach the harness clip (B).

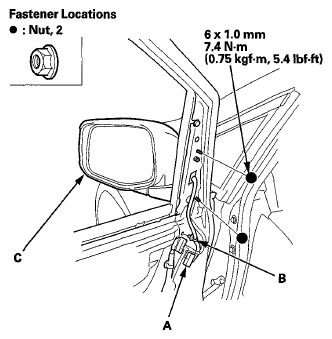

    Fig 2: Power Mirror Connector And Harness Clip With Torque Specifications
    G06967572Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. While holding the power mirror (C), remove the nuts securing the mirror.
  6. While holding the power mirror (A), detach the clip (B), then remove the power mirror.
    Fig 3: Identifying Power Mirror And Clip
    G06967573Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Install the mirror in the reverse order of removal, and note these items:
    • If the clips are damaged or stress-whitened, replace them with new ones.
    • Make sure each connector is plugged in properly.
    • Push the clips and the hooks into place securely.
