Power Tailgate Motor Test

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the tailgate, and remove the left rear side trim (see TRIM REMOVAL/INSTALLATION - REAR SIDE AREA ).
  2. Disconnect drive unit A (2P) connector (A).

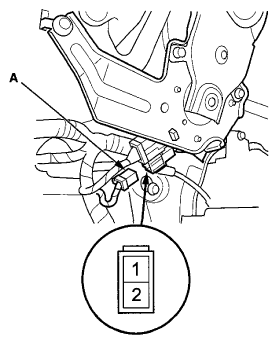

    Fig 1: Identifying Drive Unit (2P) Connector Terminals
    G06970394Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Close the tailgate manually.
  4. Check the motor operation by connecting battery power to the terminal No. 1 and ground to the terminal No. 2. The motor should run (tailgate open).
    NOTE: Be careful not to pinch your hands.
  5. After opening the tailgate, connect battery power to the terminal No. 2 and ground the terminal No. 1. The motor should run (tailgate closed).
  6. If the motor does not run or fails to run smoothly, replace the drive unit assembly.
