Component Location Index

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.

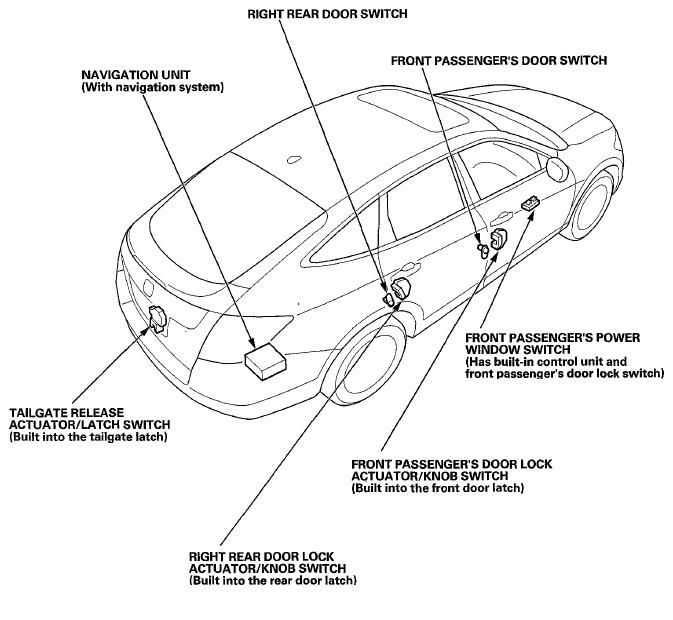

Fig 1: Identifying Keyless/Power Door Locks/Security System Component Location (1 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

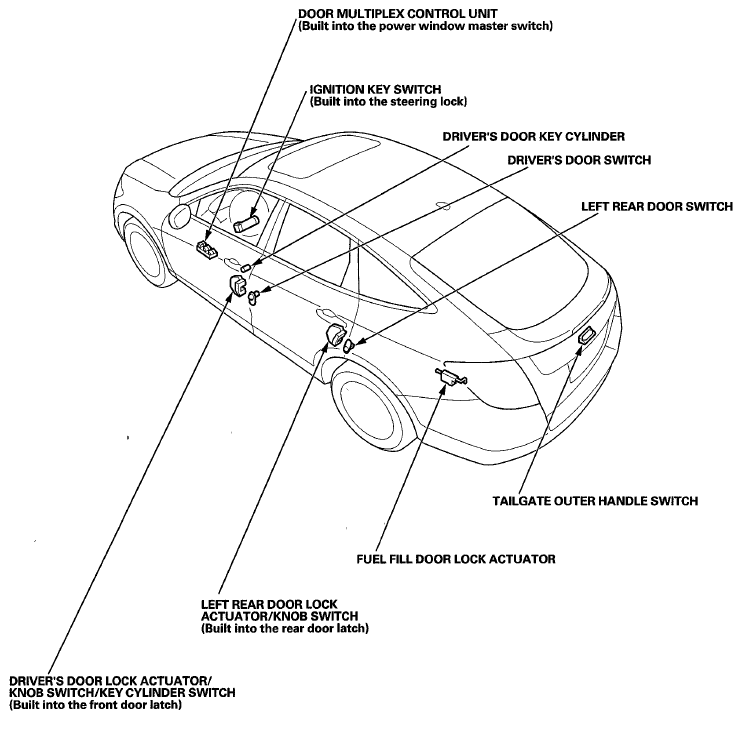

Fig 2: Identifying Keyless/Power Door Locks/Security System Component Location (2 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

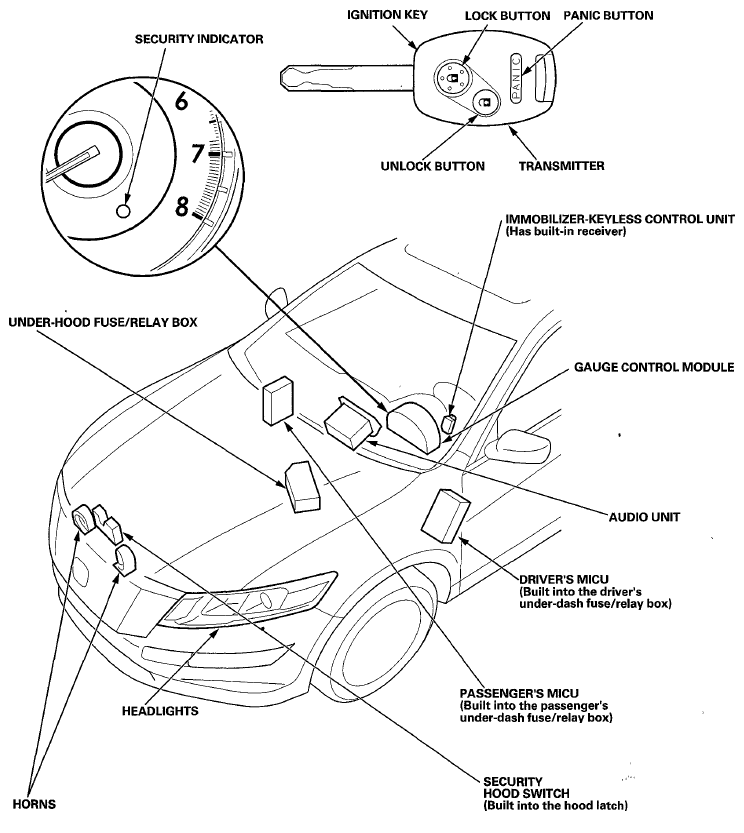

Fig 3: Identifying Keyless/Power Door Locks/Security System Component Location (3 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

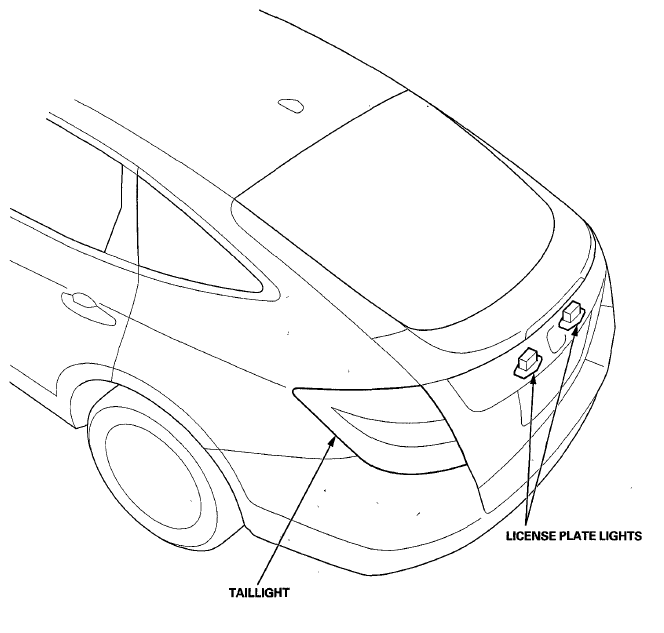

Fig 4: Identifying Keyless/Power Door Locks/Security System Component Location (4 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
