A/C Condenser Replacement

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Recover the refrigerant with a recovery/recycling/charging station (see REFRIGERANT RECOVERY  ).
  2. Remove the front bulkhead cover (see FRONT BULKHEAD COVER REPLACEMENT ).
  3. Remove the two mounting bolts (A) from the front grille.
    Fig 1: Front Grille Mounting Bolts With Torque Specifications
    G06968194Courtesy of AMERICAN HONDA MOTOR CO., INC.

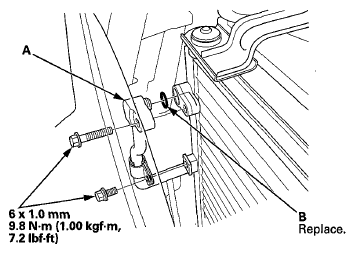

  4. Remove the bolts, then disconnect the discharge hose (A) from the A/C condenser. Remove the O-ring (B).
    Fig 2: Discharge Hose, O-Ring With Mounting Bolts Torque Specification
    G06968195Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Remove the bolt, then disconnect the front receiver line (A) from the A/C condenser. Remove the O-ring (B).
    Fig 3: Front Receiver Line, O-Ring With Mounting Bolt Torque Specification
    G06968196Courtesy of AMERICAN HONDA MOTOR CO., INC.

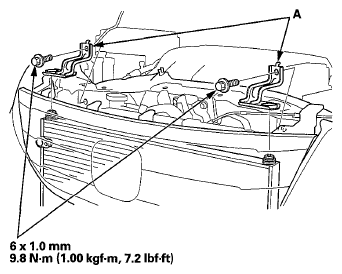

  6. Remove the bolts and the A/C condenser upper mount brackets (A).
    Fig 4: A/C Condenser Upper Mount Brackets With Mounting Bolts Torque Specification
    G06968197Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Remove the A/C condenser (A) by lifting it up. Be careful not to damage the radiator and A/C condenser fins when removing the A/C condenser.
    Fig 5: Removing A/C Condenser
    G06968198Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Install the A/C condenser in the reverse order of removal, and note these items:
    • If you're installing a new A/C condenser, add refrigerant oil (DENSO ND-OIL 8) (see A/C REFRIGERANT OIL REPLACEMENT  ).
    • Replace the O-rings with new ones at each fitting, and apply a thin coat of refrigerant oil before installing them. Be sure to use the correct O-rings for HFC-134a (R-134a) to avoid leakage.
    • Immediately after using the oil, reinstall the cap on the container, and seal it to avoid moisture absorption.
    • Do not spill the refrigerant oil on the vehicle; it may damage the paint; if the refrigerant oil contacts the paint, wash it off immediately.
    • Be careful not to damage the radiator or the A/C condenser fins when installing the A/C condenser.
    • Charge the system (see SYSTEM CHARGING  ).
