C451 (View 228)

GRY
Under middle of dash
Connects engine compartment wire harness (dashboard) to ECM/PCM wire harness

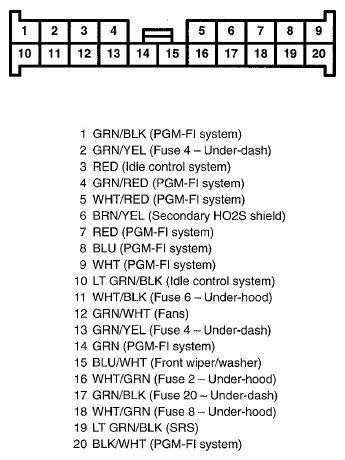

Fig 1: C451 Connector Terminal (View 228)
