C681 (View 219)

• WHT
• Left quarter panel
• Connects floor wire harness (left branch) to tailgate wire harness

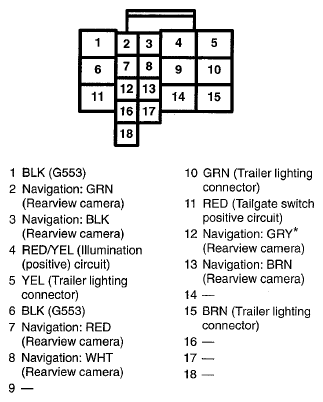

  Fig 1: C681 Connector Terminal (View 219)



* = The shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.
