Wiper/Washer Switch (View 208)
Wiper/Washer Switch (View 208)
GRY
In steering column cover
On dashboard wire harness B

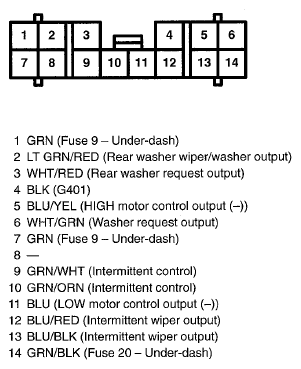

Fig 1: Wiper/Washer Switch Connector Terminal (View 208)
