Intake Manifold/Chamber Assembly Removal and Installation
›
Exploded View
Exploded View

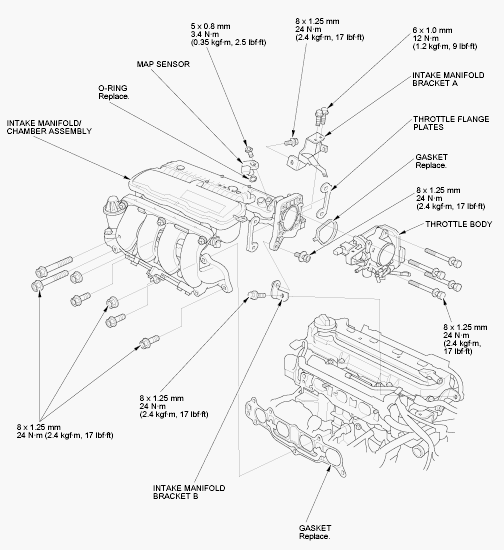

Fig 1: Exploded View Of Intake Manifold/Chamber Assembly With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
