Oil Pump Overhaul
›
Exploded View ('07 model)
Exploded View ('07 model)

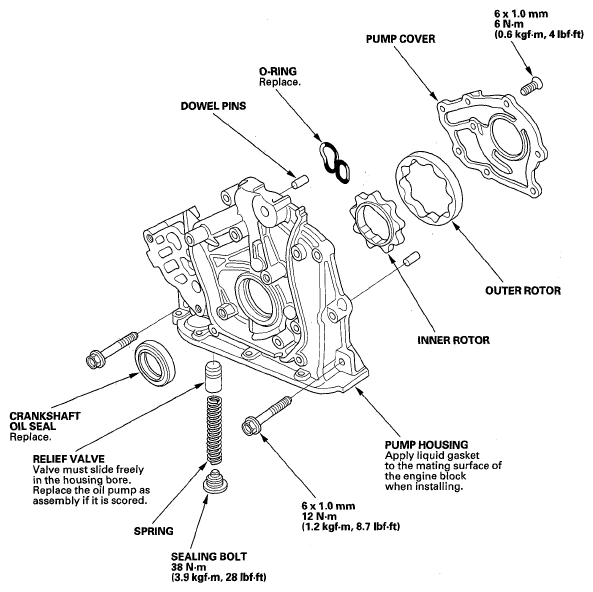

Fig 1: Exploded View Of Oil Pump - '07 Model With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
