Front Passenger's Power Window Switch/Door Lock Switch Connector End View
Front Passenger's Power Window Switch/Door Lock Switch Connector End View

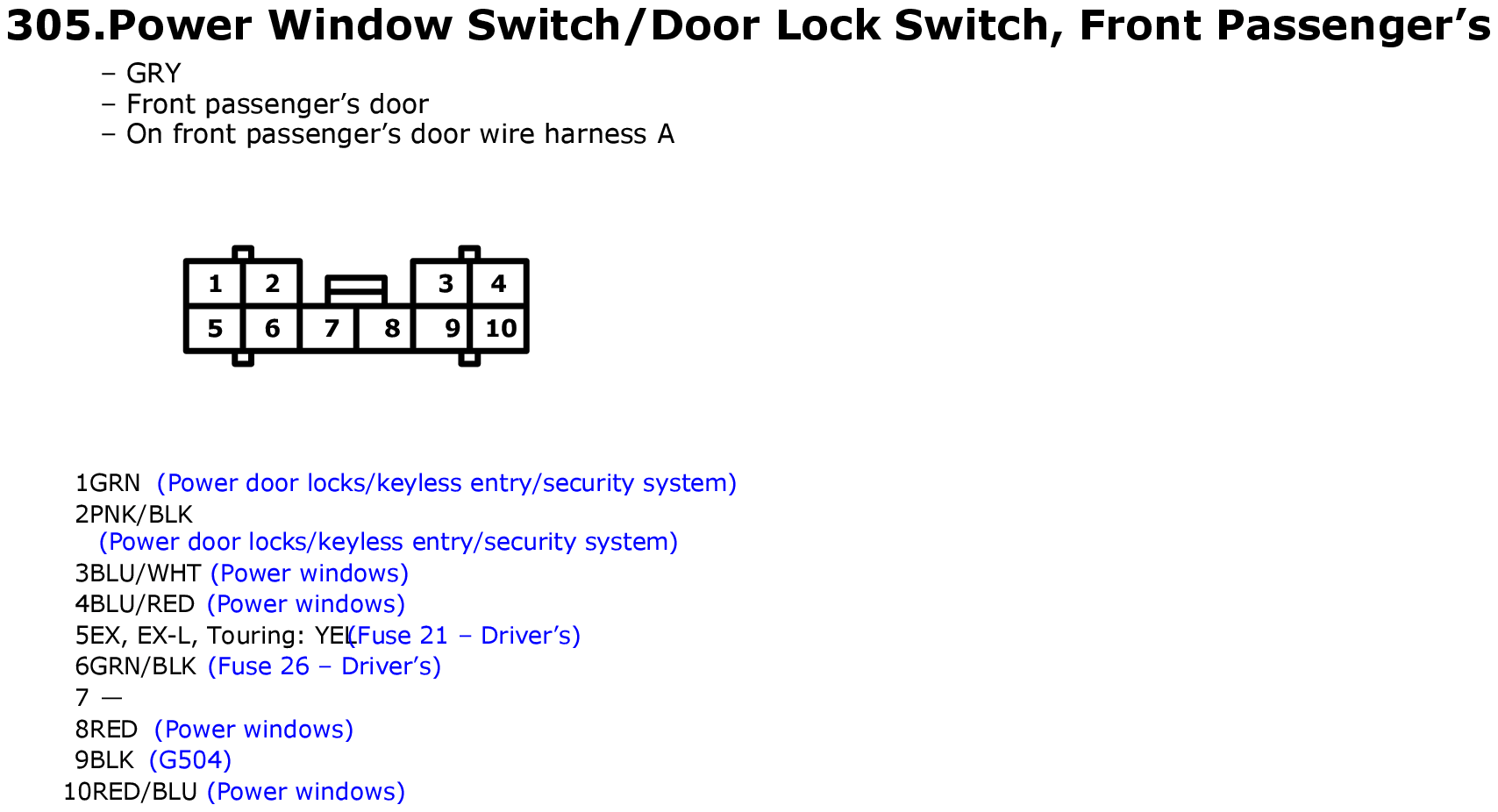

Fig 1: Front Passenger's Power Window Switch/Door Lock Switch Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.

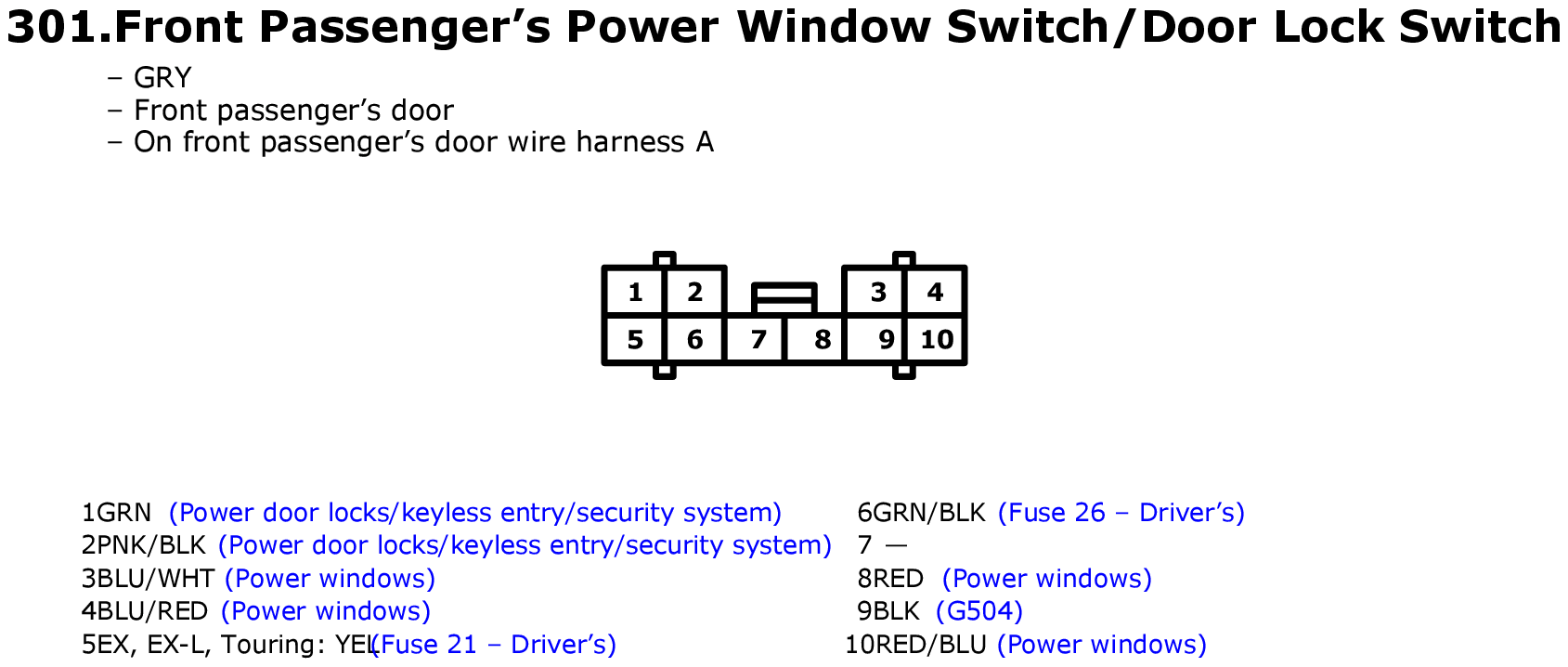

Fig 1: Front Passenger's Power Window Switch/Door Lock Switch Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
