Power Tailgate Control Unit (Touring) Connector End View
Power Tailgate Control Unit (Touring) Connector End View

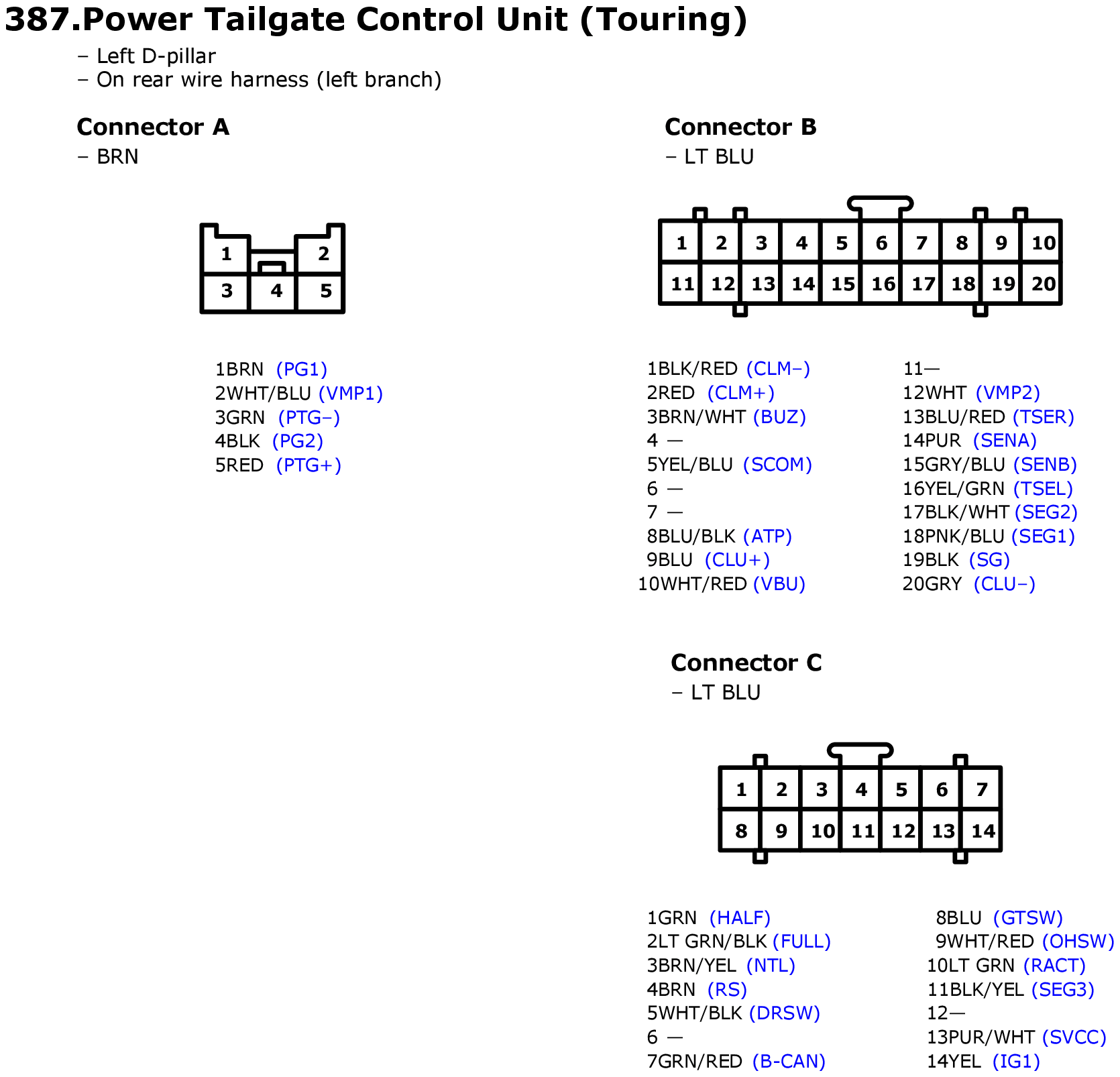

Fig 1: Power Tailgate Control Unit (Touring) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
