DTC P3497: Valve Pause System (VPS) Stuck Off Bank 2: Notes

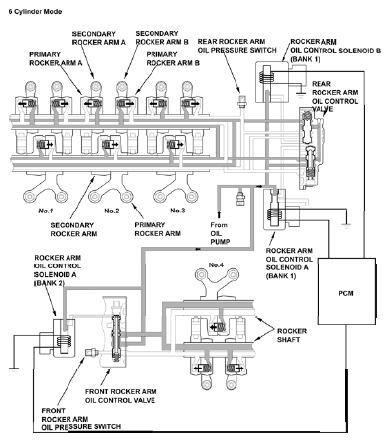

Fig 1: Valve Pause System (VPS) Stuck Off Bank 2 Operation Diagram (6 Cylinder Mode)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

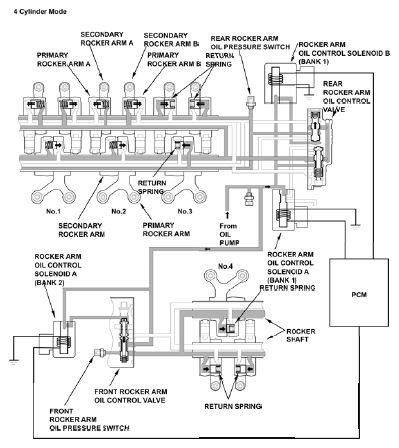

Fig 2: Valve Pause System (VPS) Stuck Off Bank 2 Operation Diagram (4 Cylinder Mode)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

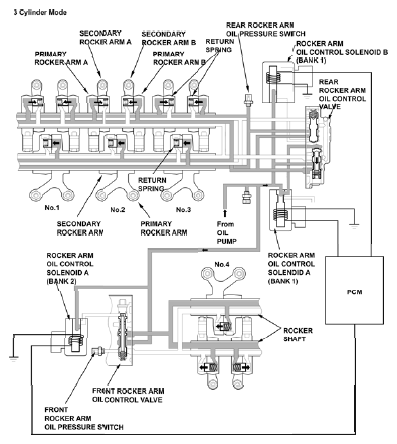

Fig 3: Valve Pause System (VPS) Stuck Off Bank 2 Operation Diagram (3 Cylinder Mode)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

REAR ROCKER ARM OIL PRESSURE SWITCH REFERENCE

PCM sends command to the rocker arm oil control solenoid			Activated cylinder mode	Rocker arm oil pressure switch (detected oil pressure)
				Rear switch 'OFF' (low)	Rear switch 'ON' (high)	Rear switch 'ON' (high)	Rear switch 'OFF' (low)
Solenoid A (Bank 1)	Solenoid B (Bank 1)	Solenoid A (Bank 2)		Front switch 'OFF' (low)	Front switch 'OFF' (low)	Front switch 'ON' (high)	Front switch 'ON' (high)
OFF	OFF	OFF	6 cylinder mode (no cylinders are paused)	Normal	Failure (P3400)	Failure (P3400 and P3497)	Failure (P3497)
OFF	ON	ON	4 cylinder mode (2 cylinders are paused)	Failure (P3400 and (P3497)	Failure (P3497)	Normal	Failure (P3400)
ON	OFF	OFF	3 cylinder mode (3 cylinders are paused)	Failure (P3400)	Normal	Failure (P3497)	Failure (P3400 and P3497)
