Pilot EX, 3.5 3
›
Repair and Diagnosis
›
Transmission
›
Automatic Trans
›
Automatic Transmission
›
Transfer Assembly
›
Disassembly
›
Exploded View
Exploded View

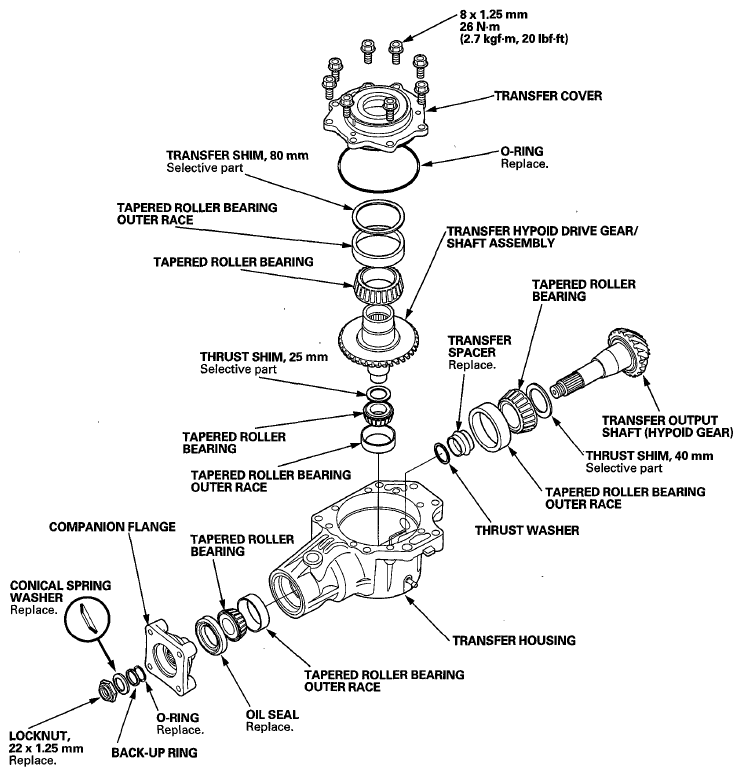

Fig 1: Identifying Transfer Assembly Replacement Components
