Hatch Glass Disassembly/Reassembly

NOTE:

• Put on gloves to protect your hands.
• Place the hatch glass on a padded surface to prevent damage.
• Do not damage the rear window defogger grid lines or terminals.
• Remove the bolts with a T30 Torx bit.

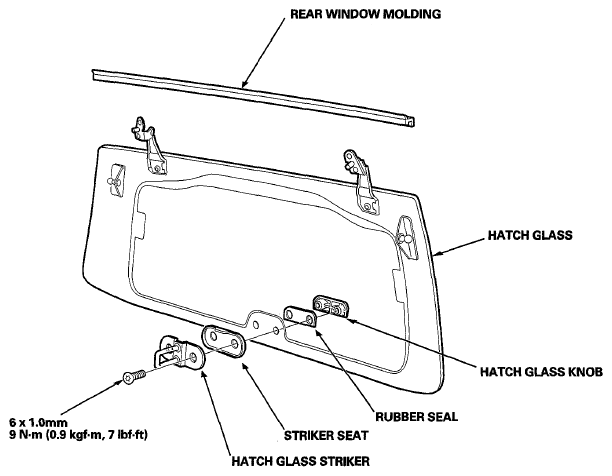

Fig 1: Identifying Hatch Glass Replacement Components With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.
