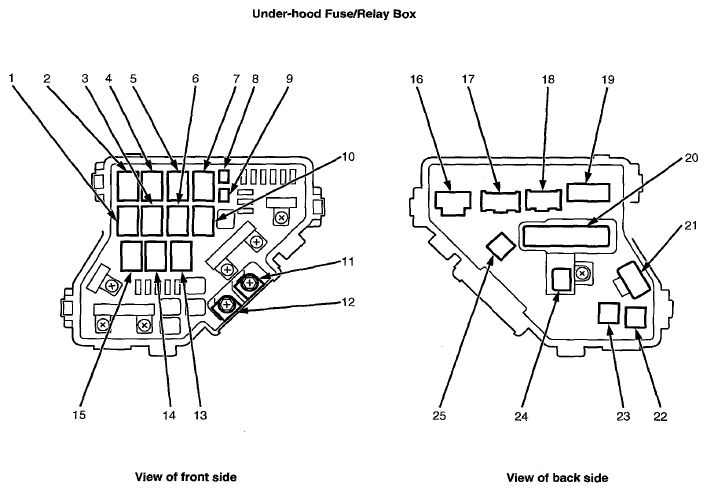

| 1 |
A/C Condenser Fan Relay |
4 |
|
|
| 2 |
Fan Control Relay |
5 |
|
|
| 3 |
Front Blower Motor Relay |
4 |
|
|
| 4 |
ACM Control Relay |
5 |
|
|
| 5 |
PGM-FI Sub-Relay |
4 |
|
|
| 6 |
Rear Window Defogger Relay |
4 |
|
|
| 7 |
Ignition Coil Relay |
4 |
|
|
| 8 |
A/C Condenser Fan Diode |
2 |
(Plugs directly into the fuse/relay box) |
|
| 9 |
Radiator Fan Diode |
2 |
(Plugs directly into the fuse/relay box) |
|
| 10 |
A/C Compressor Clutch Relay |
4 |
|
|
| 11 |
T1 |
- |
Starter Cable (see STARTER CABLE |
|
| 12 |
T101 |
- |
Engine Wire Harness (see
KNOCK SENSOR SUB-HARNESS
) |
|
| 13 |
PGM-FI Main Relay 1 |
4 |
|
|
| 14 |
ETCS Control Relay |
4 |
|
|
| 15 |
Radiator Fan Relay |
4 |
|
|
| 16 |
C |
2 |
Not Used |
|
| 17 |
E |
10 |
Right Engine Compartment Wire Harness (see
RIGHT ENGINE COMPARTMENT WIRE HARNESS
) |
|
| 18 |
D |
8 |
Right Engine Compartment Wire Harness (see
RIGHT ENGINE COMPARTMENT WIRE HARNESS
) |
|
| 19 |
J |
4 |
Right Engine Compartment Wire Harness (see
RIGHT ENGINE COMPARTMENT WIRE HARNESS
) |
|
| 20 |
F |
20 |
Right Engine Compartment Wire Harness (see
RIGHT ENGINE COMPARTMENT WIRE HARNESS
) |
|
| 21 |
K |
2 |
Right Engine Compartment Wire Harness (see
RIGHT ENGINE COMPARTMENT WIRE HARNESS
) |
|
| 22 |
G |
1 |
Right Engine Compartment Wire Harness (see
RIGHT ENGINE COMPARTMENT WIRE HARNESS
) |
|
| 23 |
H |
1 |
Right Engine Compartment Wire Harness (see
RIGHT ENGINE COMPARTMENT WIRE HARNESS
) |
|
| 24 |
A (ELD Unit) |
3 |
Right Engine Compartment Wire Harness (see
RIGHT ENGINE COMPARTMENT WIRE HARNESS
) |
|
| 25 |
B |
1 |
Not Used |
|
