A/T Interlock System
›
Circuit Diagram
Circuit Diagram

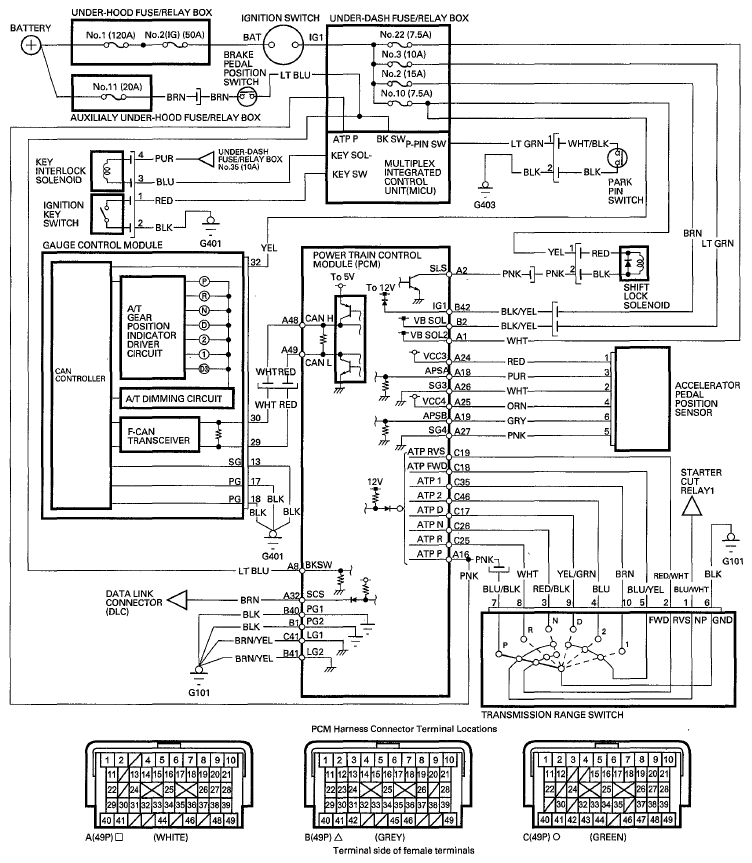

Fig 1: Identifying A/T Interlock System - Circuit Diagram
