Honda
›
2009
›
Pilot EX, 3.5 4
›
Repair and Diagnosis
›
Transmission
›
Automatic Trans
›
Automatic Transmission
›
A/T Interlock System
›
Component Location Index
Component Location Index

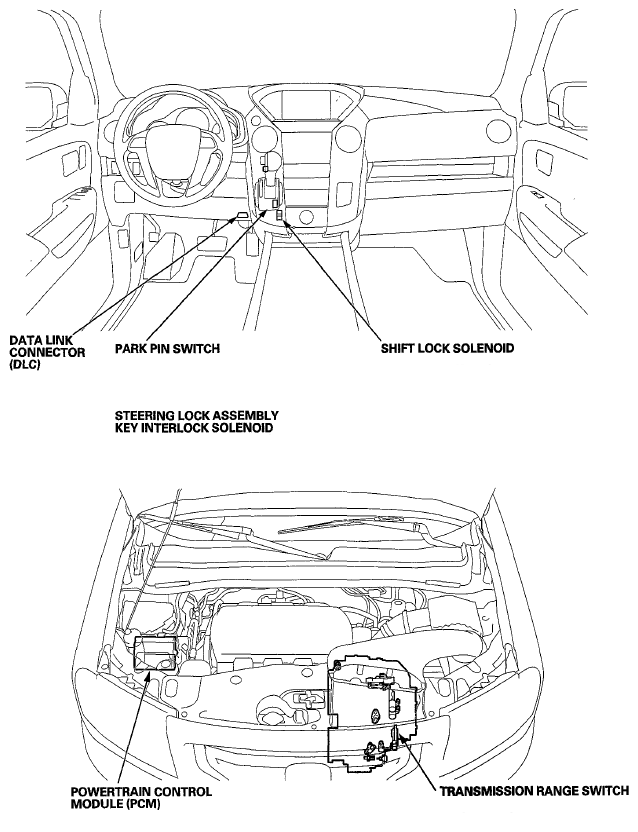

Fig 1: Identifying A/T Interlock System Replacement Components
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
