Washer Motor Test

Remove the right inner fender (see INNER FENDER REPLACEMENT ).
Disconnect the 2P connector (A) from the washer motor (B).

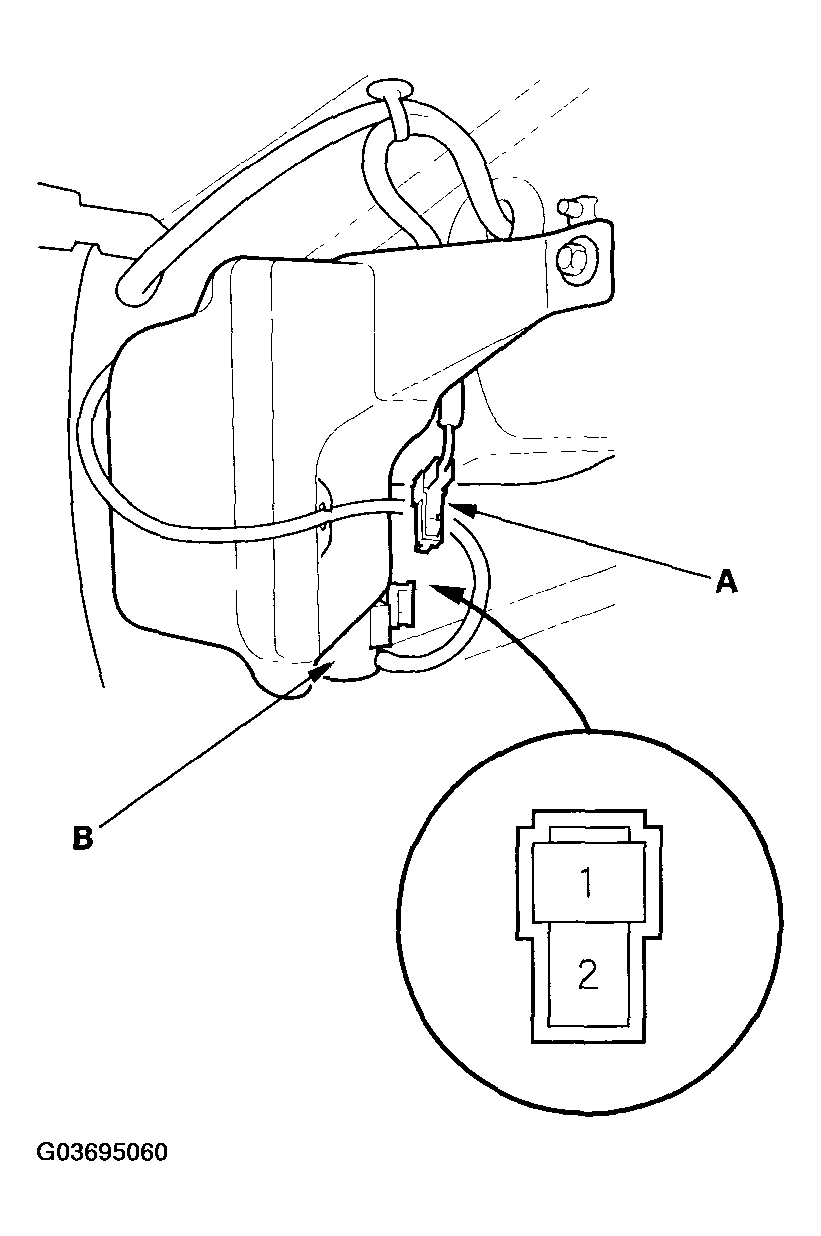

Fig 1: Identifying 2P Connector & Washer Motor
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Test the washer motor by connecting battery power to terminal No. 1 and ground to terminal No. 2.
If the motor does not run or fails to run smoothly, replace the motor.
