Special Tools Required
KTC trim tool set SOJATP2014*
*Available through the American Honda Tool and Equipment Program; call 888-424-6857
NOTE:
- Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.
- Take care not to scratch the front seat, dashboard and related parts.
- Remove the shift knob by turning it counterclockwise.

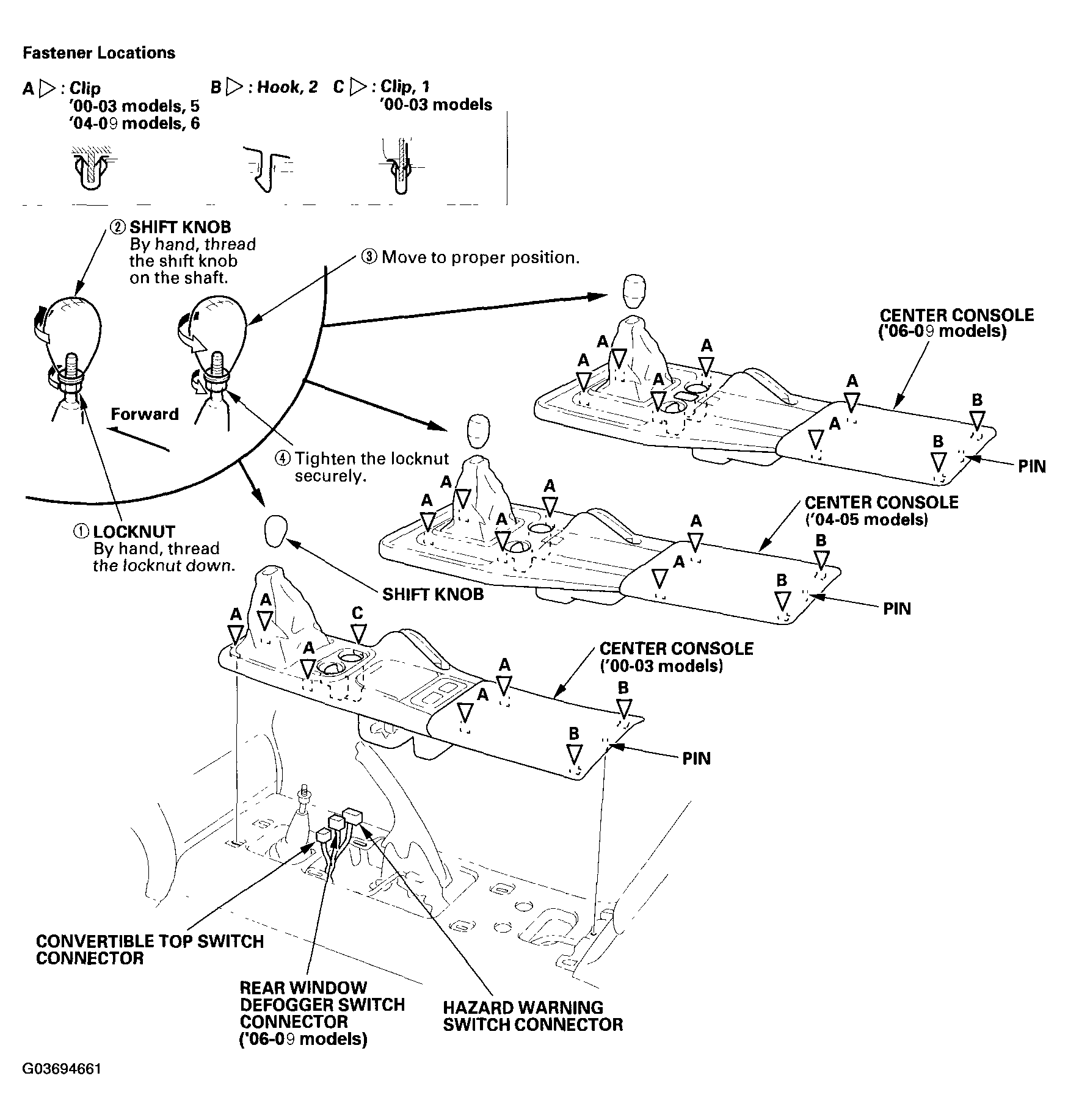

- Remove the center console as shown below.
- Install the center console in the reverse order of removal, and note these items:
- Replace any damaged clips.
- Make sure the connectors are plugged in properly.
- Push the clips and hooks into place securely.
- Install the shift knob in numbered sequence.
