Propeller Shaft Installation: Notes

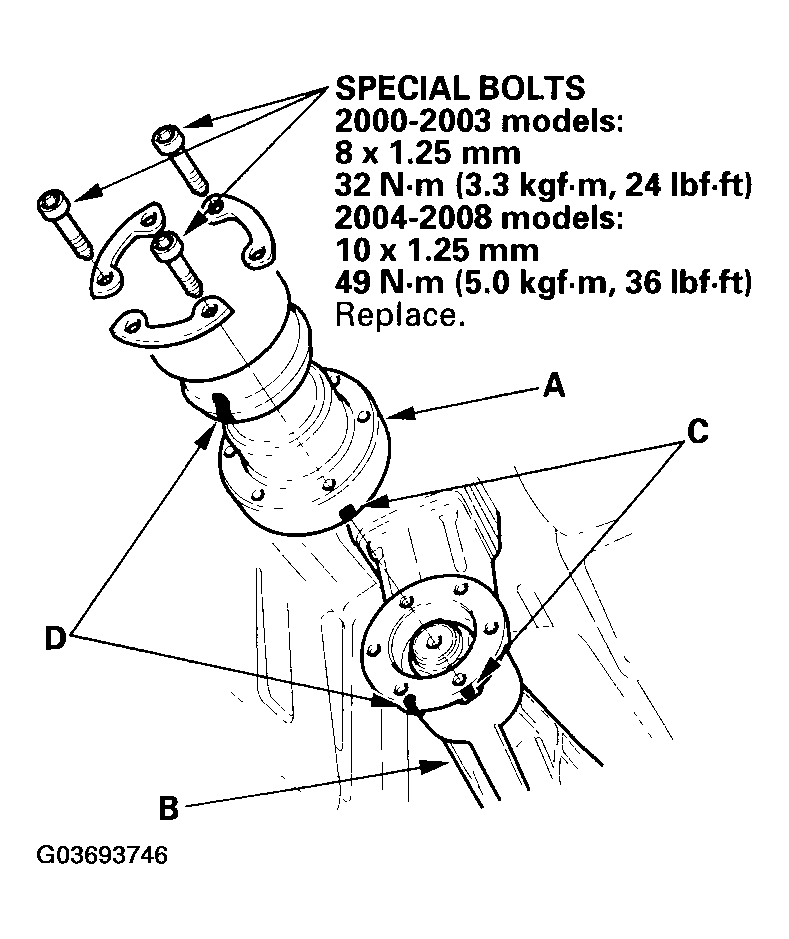

Install the propeller shaft (A) onto the rear differential (B) by aligning the reference marks (C).
NOTE: When the propeller shaft is replaced, align the white marks (D) on the new propeller shaft with the white mark on the differential.

Fig 1: Installing Propeller Shaft Onto Rear Differential With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

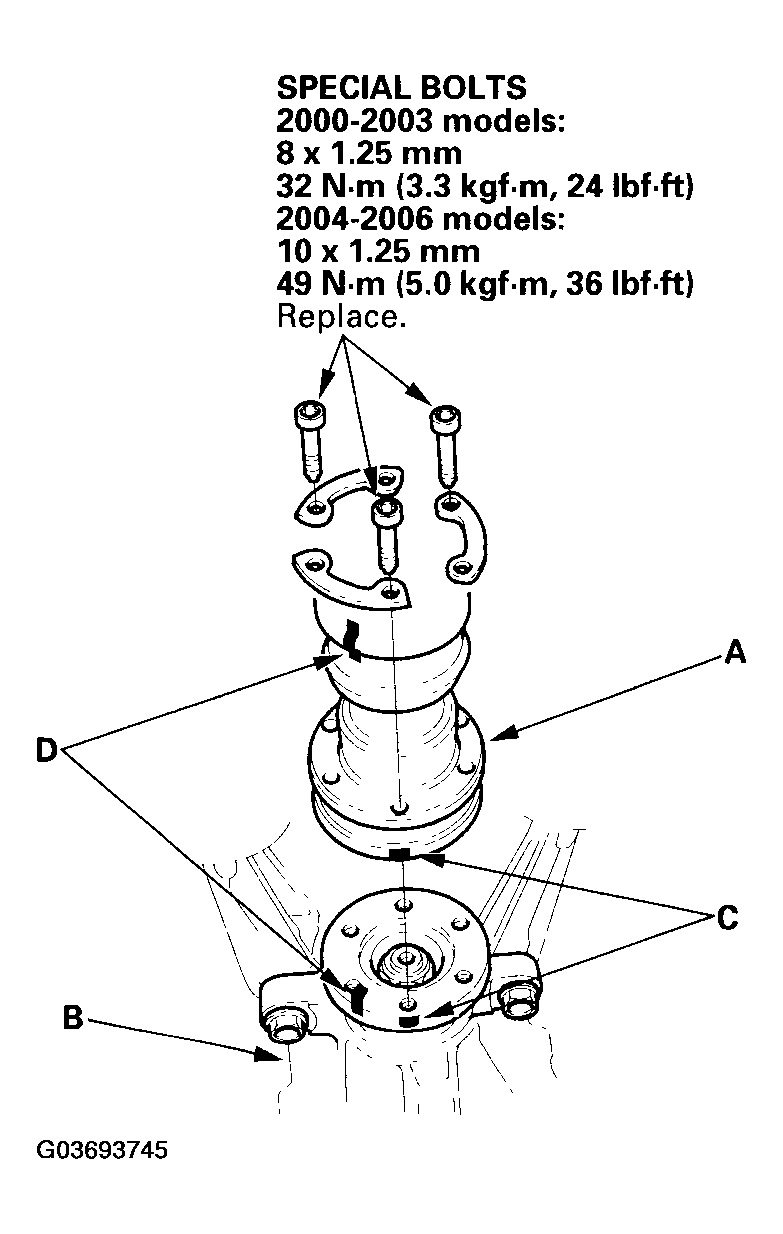

Install the propeller shaft (A) onto the transmission (B) by aligning the reference marks (C).
NOTE: When the propeller shaft is replaced, align the white marks (D) on the new propeller shaft with the white mark on the transmission.

Fig 2: Installing Propeller Shaft Onto Transmission By Aligning Reference Marks With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

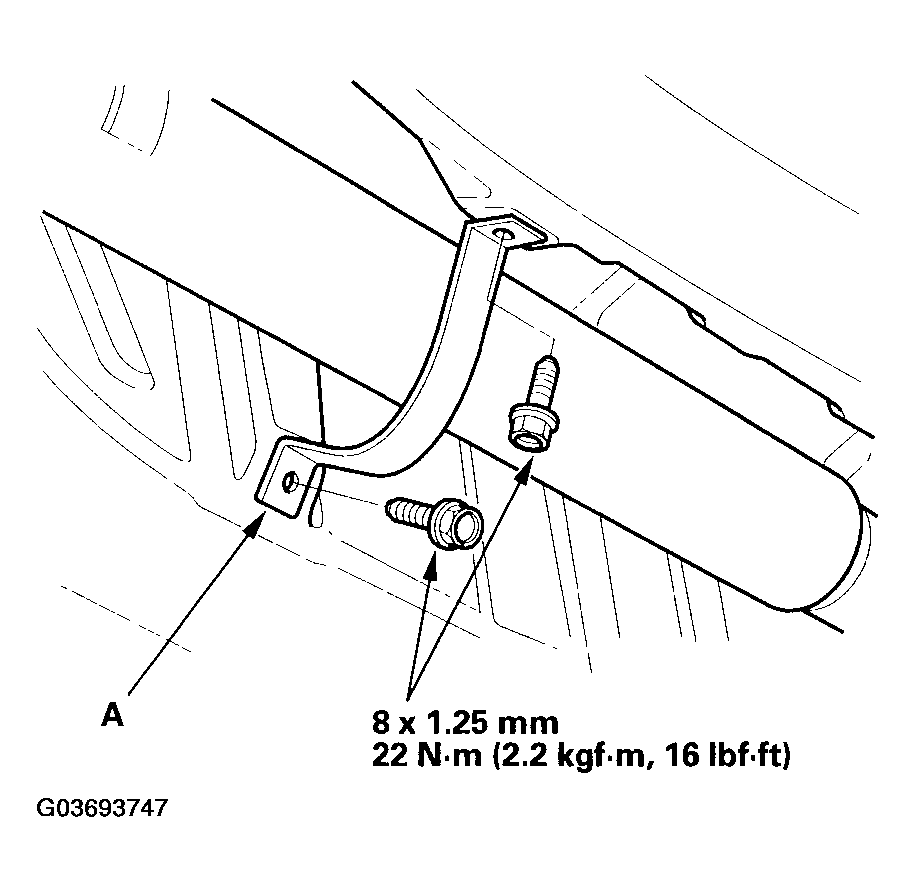

Install the propeller shaft protector (A).

Fig 3: Installing Propeller Shaft Protector With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Test-drive the vehicle
