Auxiliary Under-Hood Fuse Box Connector End View
Auxiliary Under-Hood Fuse Box Connector End View

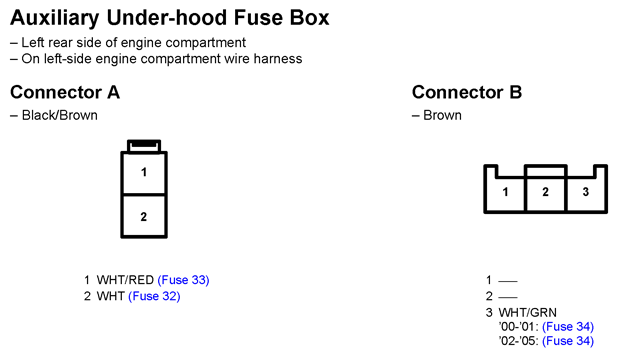

Fig 1: Auxiliary Under-Hood Fuse Box Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
