Convertible Top Motor Emergency Connector End View
Convertible Top Motor Emergency Connector End View

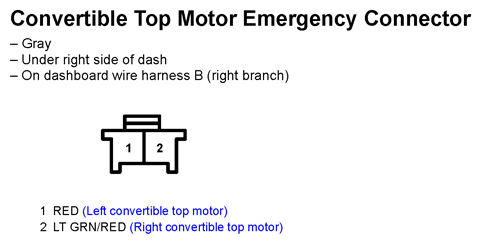

Fig 1: Convertible Top Motor Emergency Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
