DRL Sub-control Unit (USA) Connector End View
DRL Sub-control Unit (USA) Connector End View

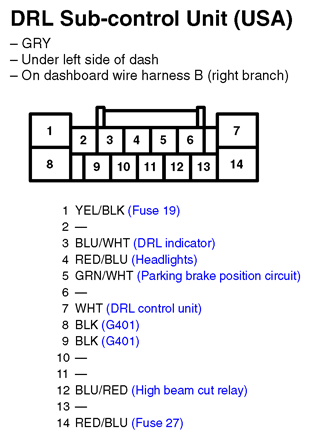

Fig 1: DRL Sub-control Unit (USA) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
