Door Latch, Driver's Connector End View
Door Latch, Driver's Connector End View

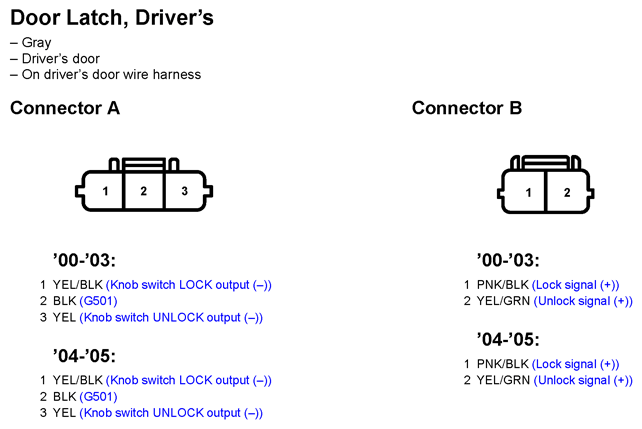

Fig 1: Door Latch, Driver's Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
