IG2 Relay and Accessory Power Socket Relay Connector End View
IG2 Relay and Accessory Power Socket Relay Connector End View

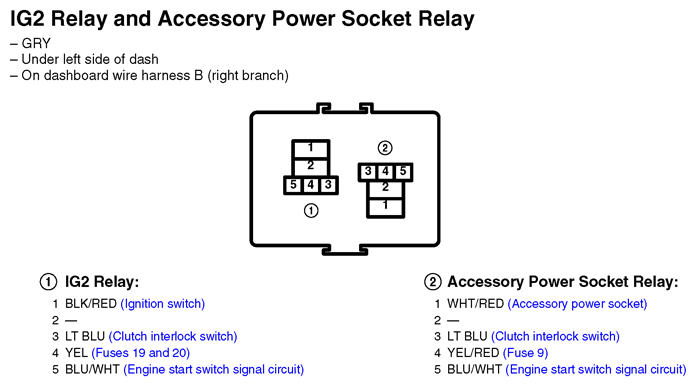

Fig 1: IG2 Relay and Accessory Power Socket Relay Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
