Output Shaft (Countershaft) Speed Sensor Connector End View
Output Shaft (Countershaft) Speed Sensor Connector End View

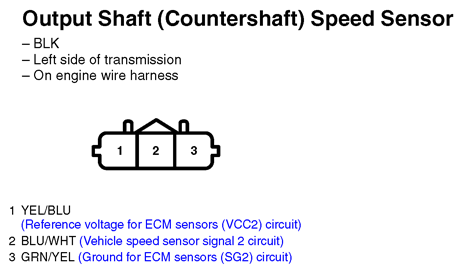

Fig 1: Output Shaft (Countershaft) Speed Sensor Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
