PGM-FI Main Relay Connector End View
PGM-FI Main Relay Connector End View

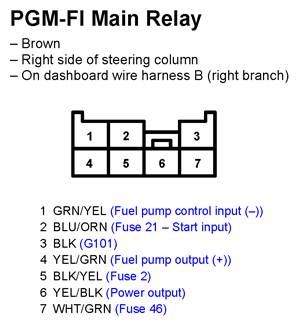

Fig 1: PGM-FI Main Relay Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
