XM Receiver (USA) Connector End View
XM Receiver (USA) Connector End View

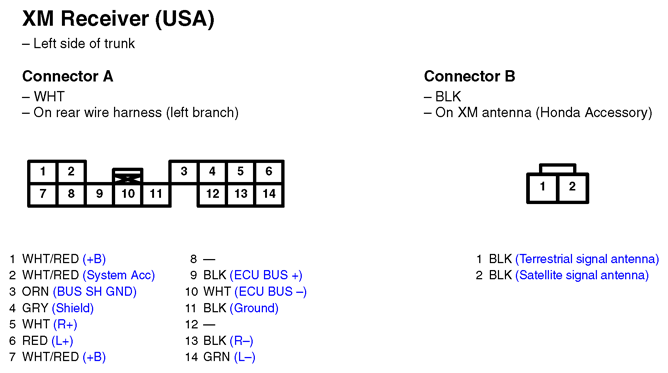

Fig 1: XM Receiver (USA) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
