Water Pump Inspection

Loosen the water pump pulley bolts.
Remove the drive belt (see DRIVE BELT REPLACEMENT ).
Remove the water pump pulley.

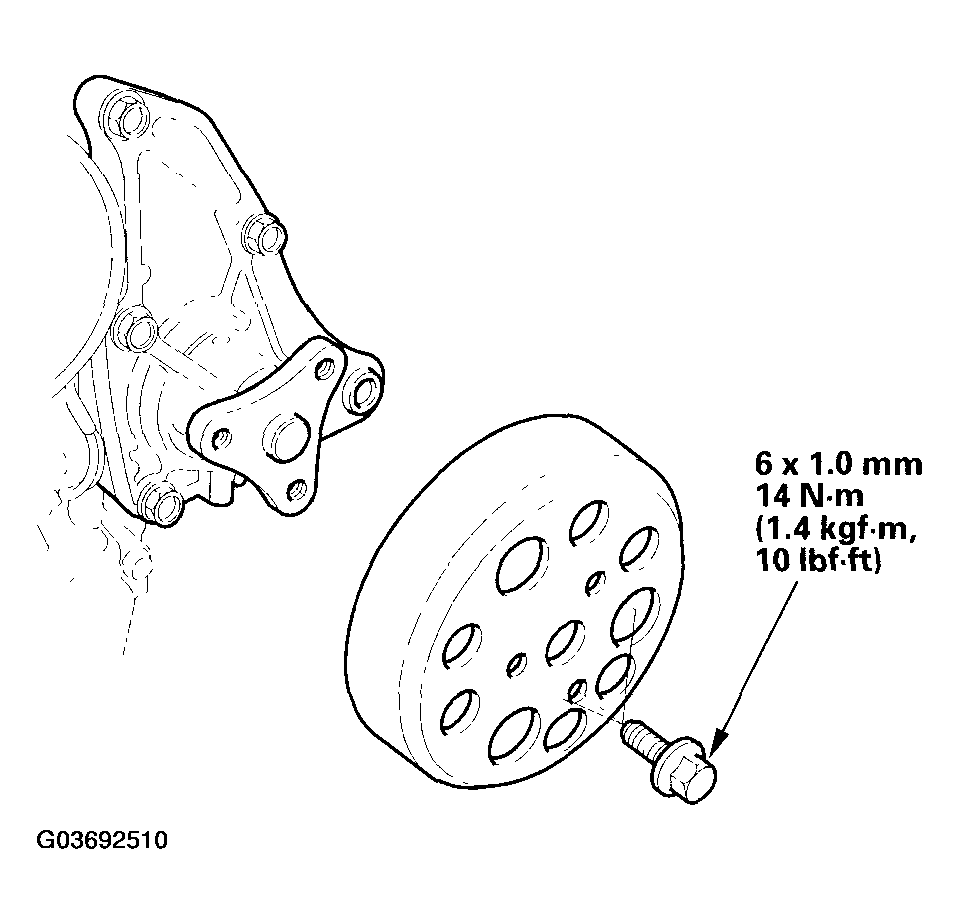

Fig 1: Water Pump Pulley With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Turn the water pump counterclockwise. Check that it turns freely.
Check for signs of seal leakage. A small amount of "weeping" from the bleed holes (A) is normal.

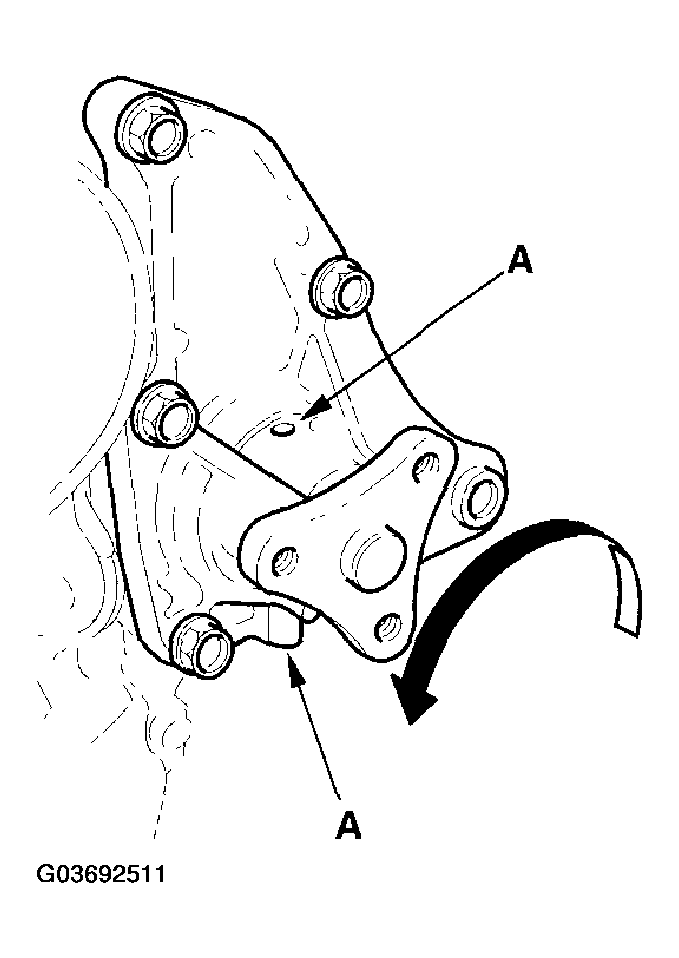

Fig 2: Checking Signs Of Seal Leakage
Courtesy of AMERICAN HONDA MOTOR CO., INC.
