Component Location Index

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 Honda S2000, 2007 Honda S2000, 2006 Honda S2000, 2005 Honda S2000, and 2004 Honda S2000. However, it is still accessible from the selected car via links, so may be relevant.

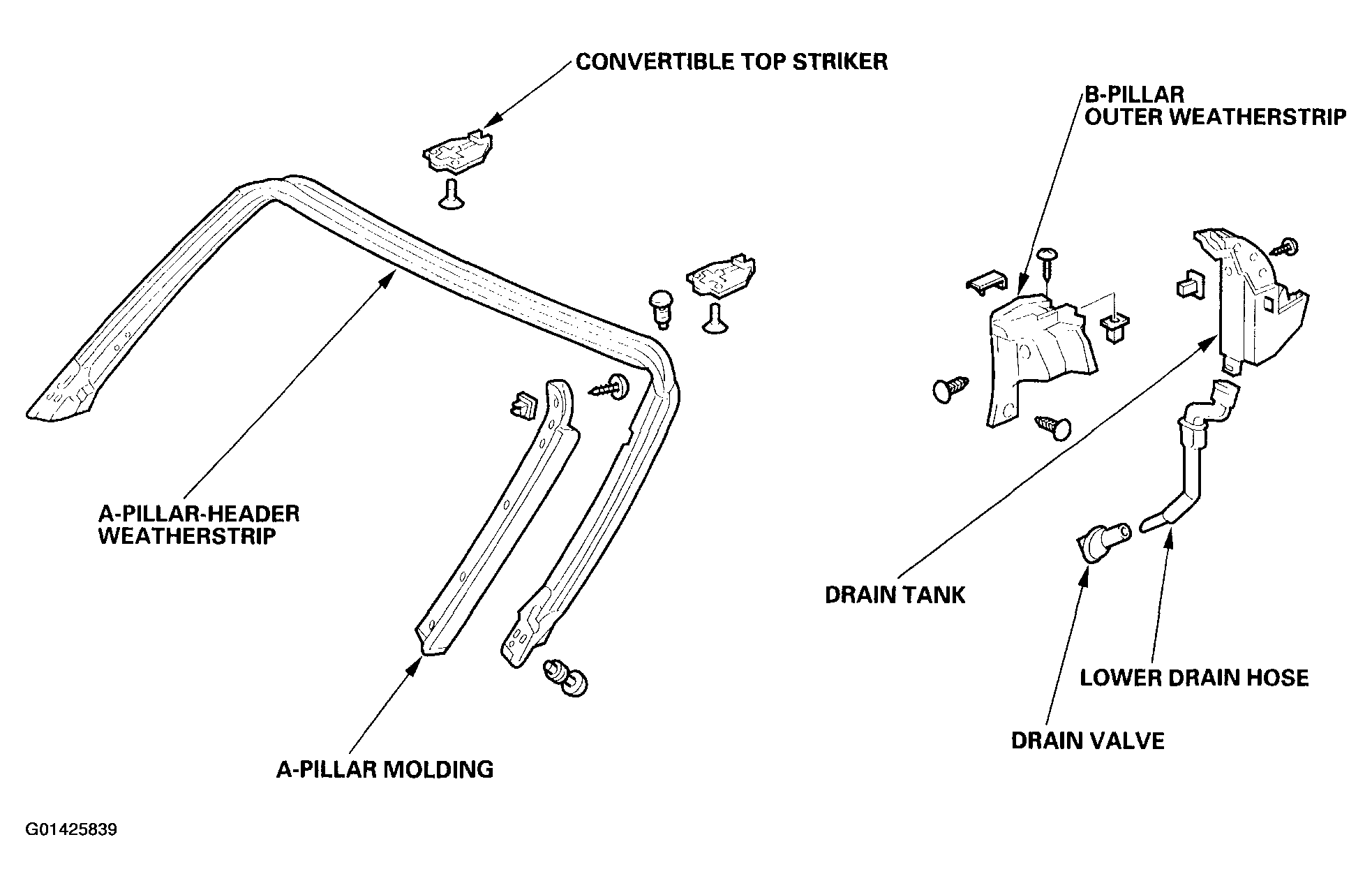

Fig 1: Identifying Convertible Top Replacement Components (1 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

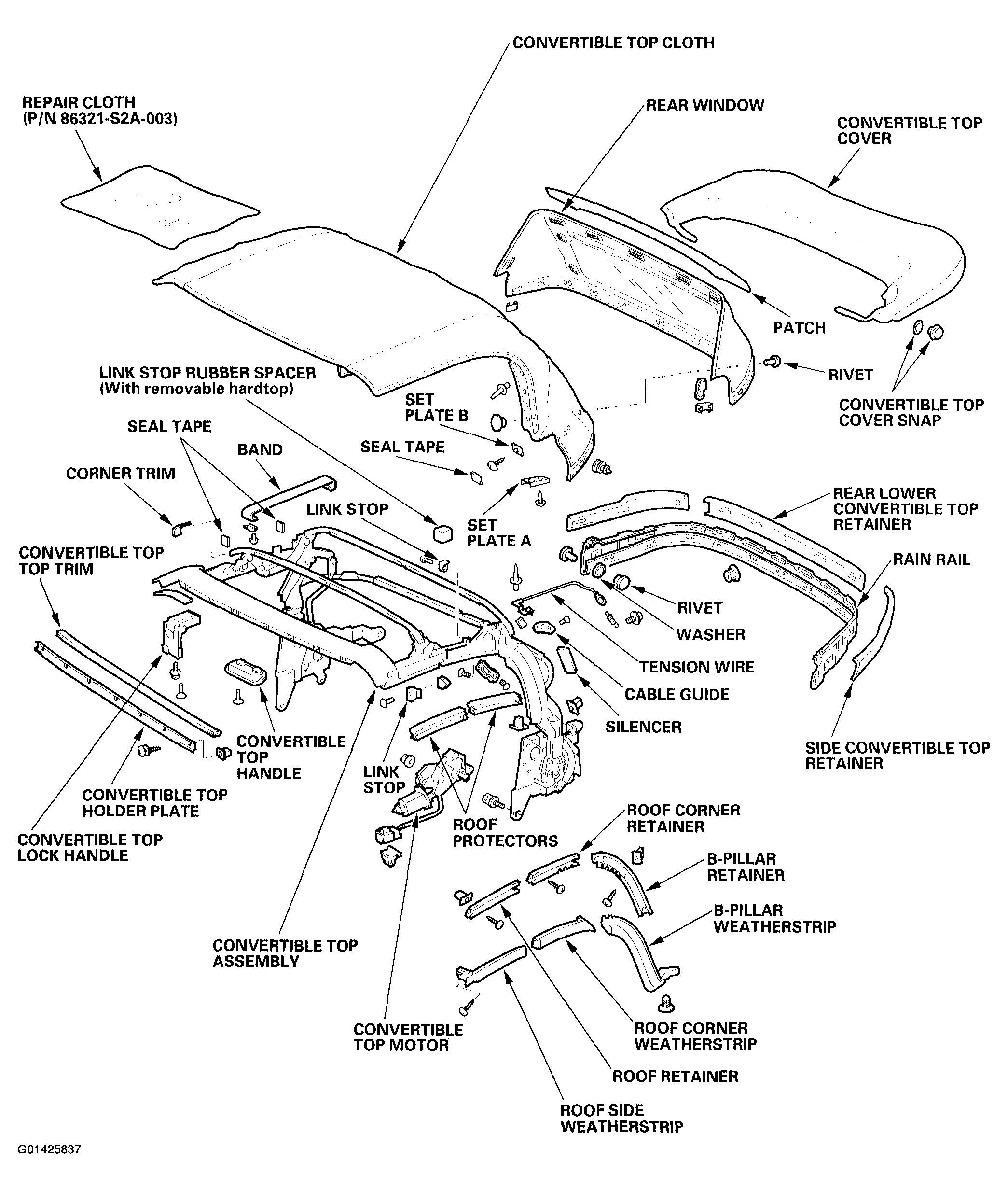

Fig 2: Identifying Convertible Top Replacement Components (2 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

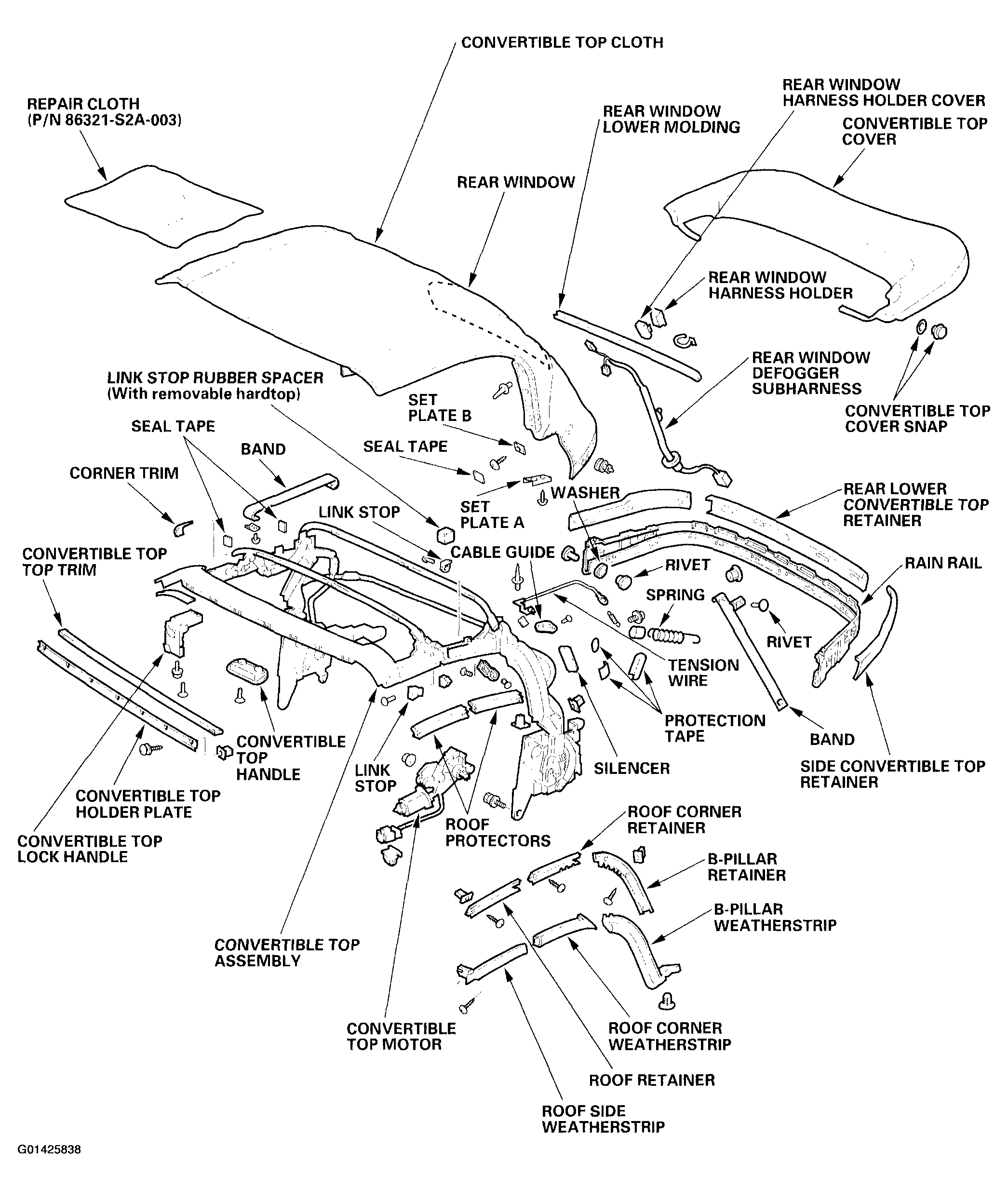

Fig 3: Identifying Convertible Top Replacement Components (3 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
