Convertible Top Assembly Replacement

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 Honda S2000, 2007 Honda S2000, 2006 Honda S2000, 2005 Honda S2000, and 2004 Honda S2000. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Have an assistant help you remove the convertible top assembly.
Take care not to scratch the top cloth and body.
Put on gloves to protect your hands.
If the top does not move with the convertible top switch, disconnect the emergency connector near the passenger's kick panel (see CONVERTIBLE TOP MOTOR TEST ), and move the top by hand.

Remove both rear tray side trims (see TRIM REMOVAL/INSTALLATION - REAR TRAY AREA ).
Remove the top in the numbered sequence.
Install the convertible top in the reverse order of removal, and note these items:
- Make sure the connectors are plugged in properly.
- Check operation of the top.
- Check that each top lock handle works smoothly. If necessary, adjust the hook position (see CONVERTIBLE TOP LOCK HANDLE OPERATION LOAD ADJUSTMENT ).
- Check that each door glass contacts the weatherstrips evenly.
- Check for water leaks (see step 17 in DOOR GLASS ADJUSTMENT ).
- Test-drive and check for wind noise and rattles.

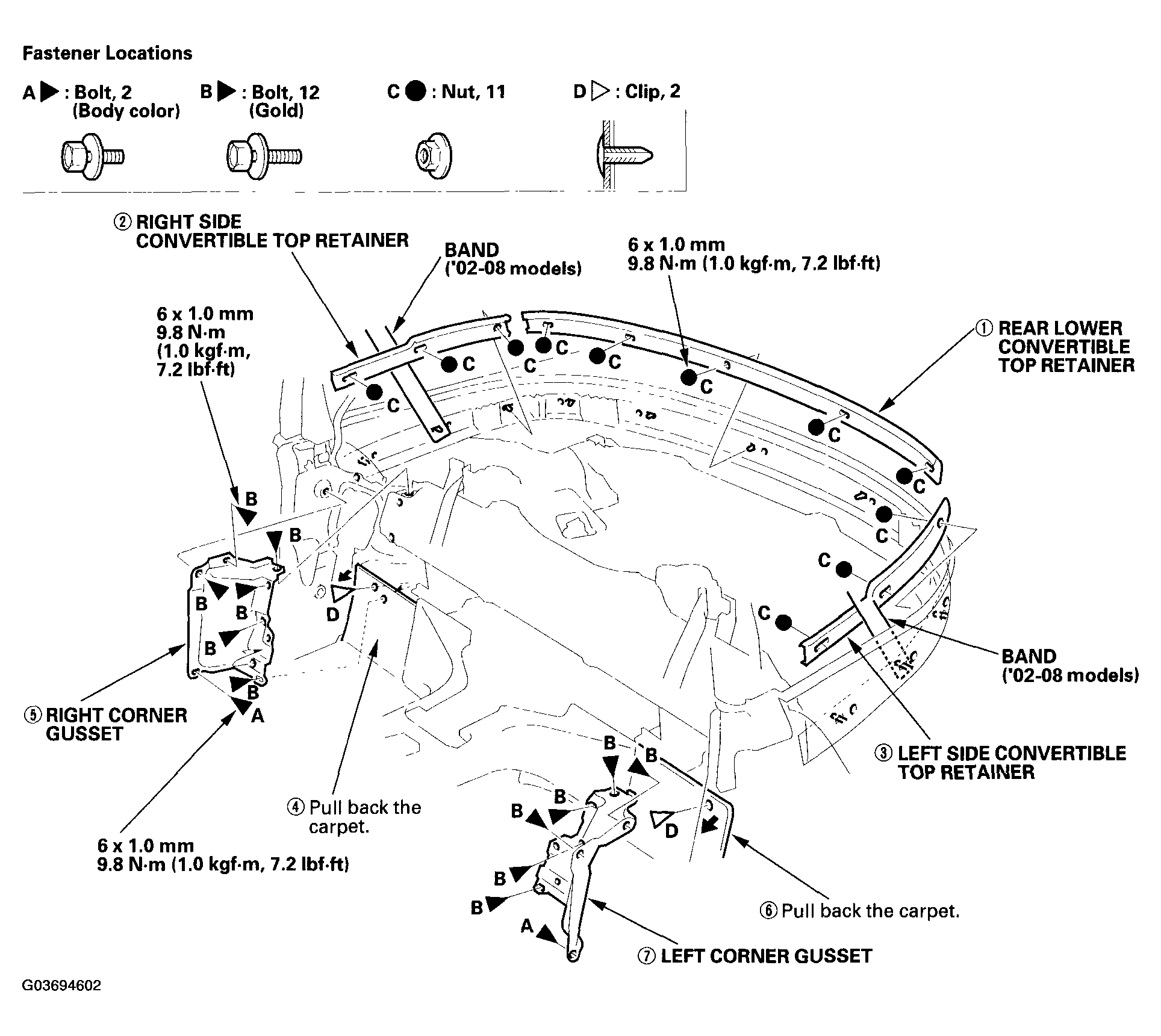

  Fig 1: Bolts, Nuts & Clips Of Convertible Top Assembly (1 Of 2) With Torque Specifications
  Courtesy of AMERICAN HONDA MOTOR CO., INC.

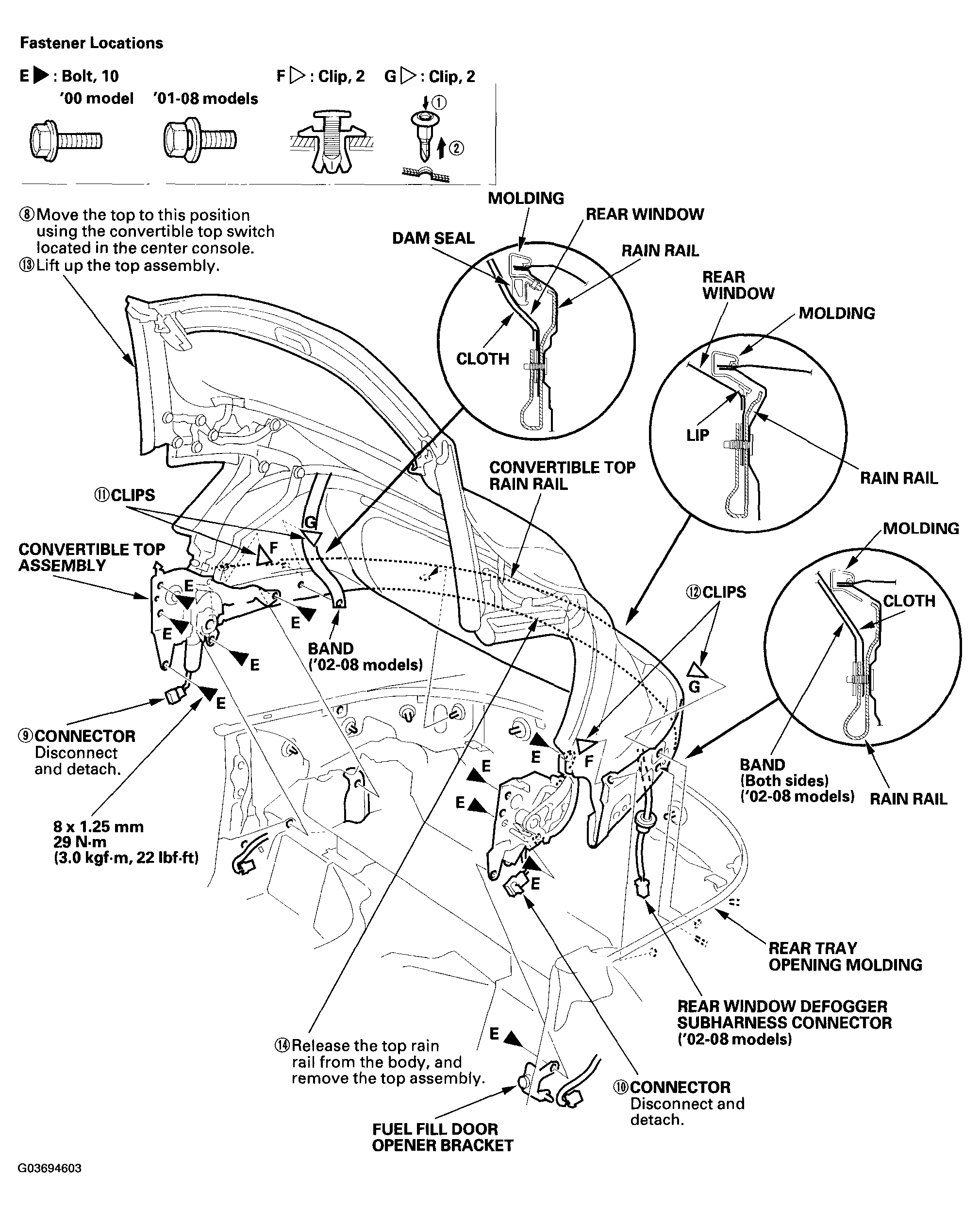

  Fig 2: Bolts, Nuts & Clips Of Convertible Top Assembly (2 Of 2) With Torque Specifications
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
