Component Location Index

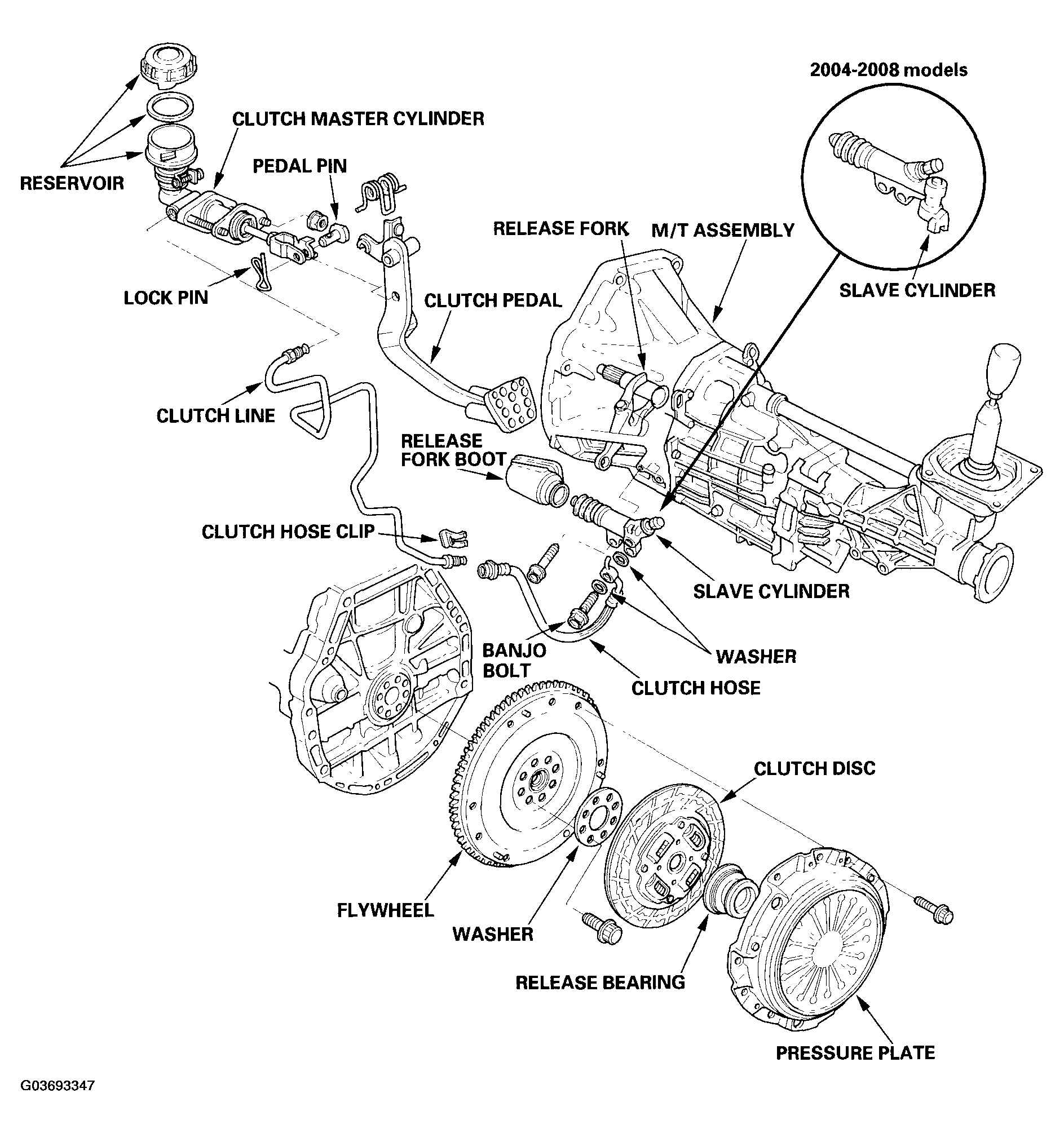

Fig 1: Identifying Clutch Component Location Index
G03693347Courtesy of AMERICAN HONDA MOTOR CO., INC.
