Component Location Index
Component Location Index

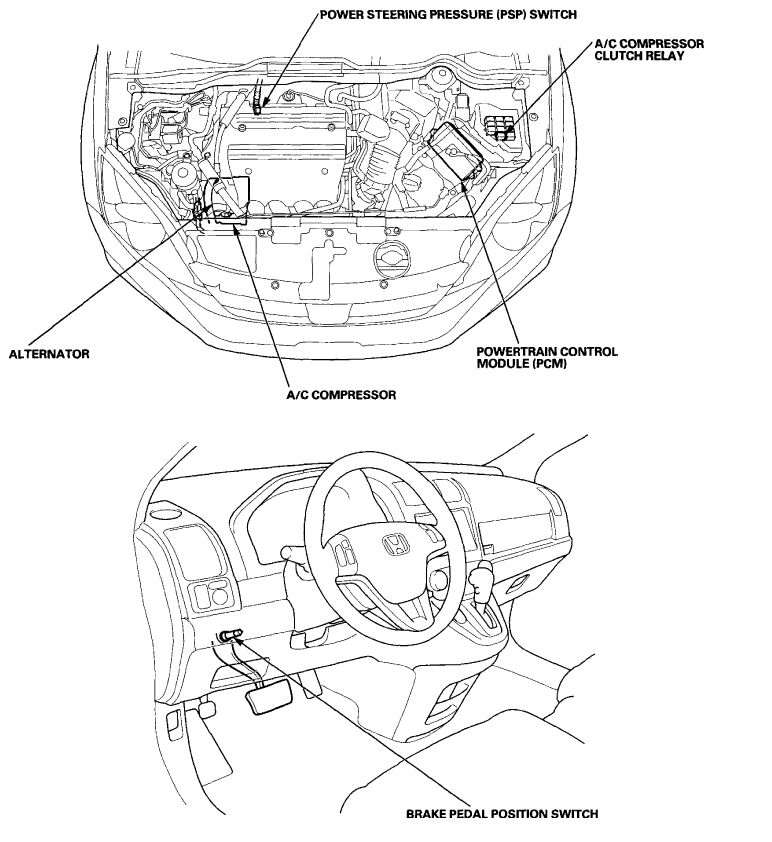

Fig 1: Identifying Idle Control System Component Location
Courtesy of AMERICAN HONDA MOTOR CO., INC.
