MAF Sensor/IAT Sensor Replacement

  1. Disconnect the MAF sensor/IAT sensor connector (A).

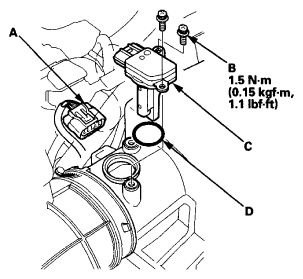

    Fig 1: MAF Sensor/IAT Sensor Connector, Screws And MAF Sensor/IAT Sensor With Torque Specification
    G06610408
  2. Remove the screws (B).
  3. Remove the MAF sensor/IAT sensor (C).
  4. Install the parts in the reverse order of removal with a new O-ring (D).
