MAP Sensor Replacement

Disconnect the MAP sensor connector (A).

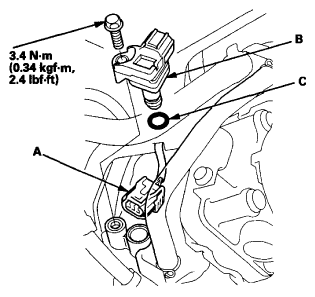

Fig 1: MAP Sensor Connector And MAP Sensor With Torque Specification
Remove the MAP sensor (B).
Install the parts in the reverse order of removal with a new O-ring (C).
