Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

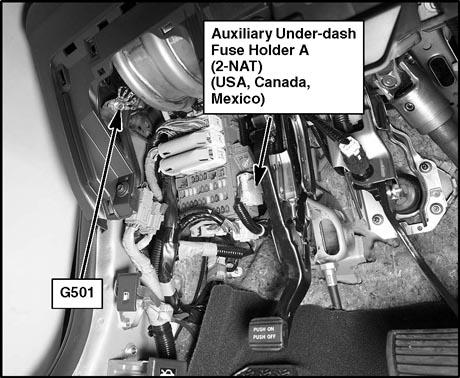

| Auxiliary Under-Dash Fuse Holder A | Under left side of dash. See Figure. |
| Auxiliary Under-Hood Relay Box | Left side of engine compartment. See Figure. |
| Back-Up Sensor In-Line Fuse | Right side of cargo area. |

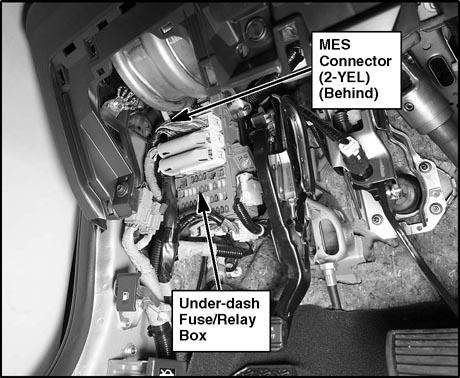

| Under-Dash Fuse/Relay Box | Under left side of dash. See Figure. |

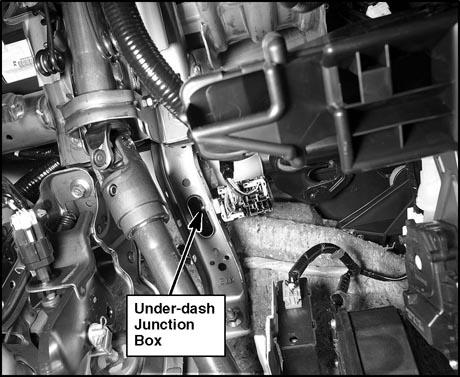

| Under-Dash Junction Box | Under left side of dash. See Figure. |

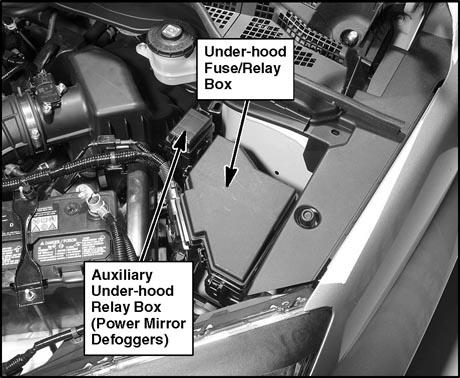

| Under-Hood Fuse/Relay Box | On left side of engine compartment. See Figure. |
