Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Underhood Fuse/Relay Box

G00453647

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Underdash Fuse/Relay Box

G00453648

Courtesy of AMERICAN HONDA MOTOR CO., INC.

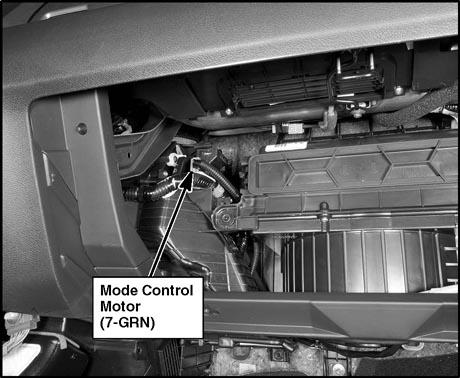

Fig 3: Behind Glove Box

G00477264

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 4: Behind Glove Box

G00444995

Courtesy of AMERICAN HONDA MOTOR CO., INC.

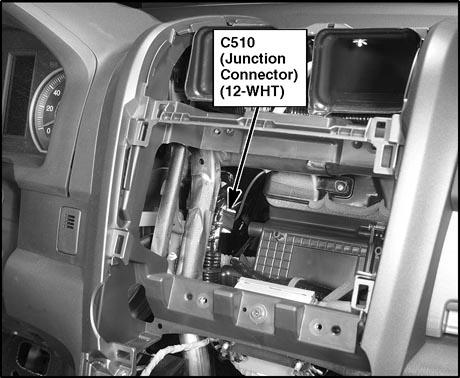

Fig 5: Under Middle Of Dash

G00477252

Courtesy of AMERICAN HONDA MOTOR CO., INC.

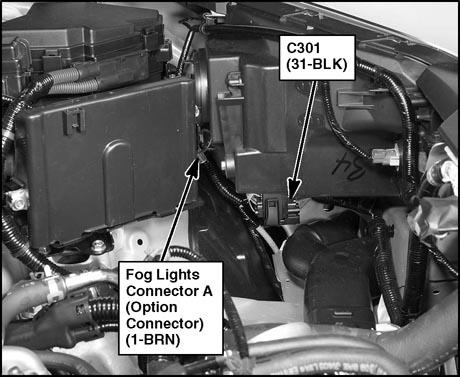

Fig 6: Left Side Of Engine Compartment

G00477205

Courtesy of AMERICAN HONDA MOTOR CO., INC.

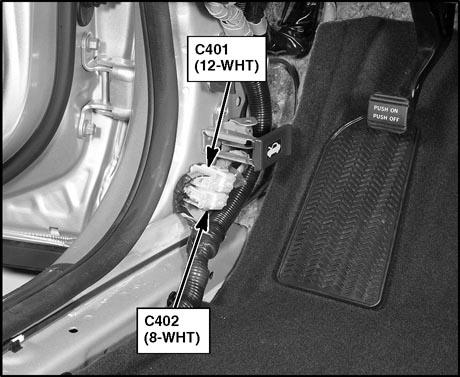

Fig 7: Behind Left Kick Panel

G00477237

Courtesy of AMERICAN HONDA MOTOR CO., INC.

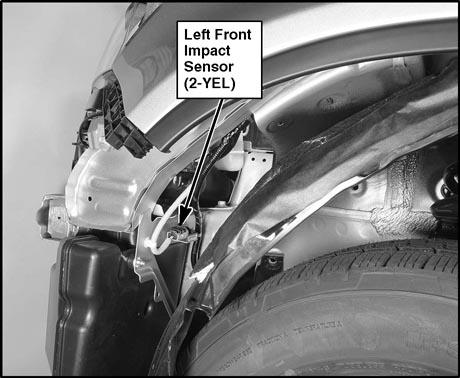

Fig 8: Behind Left Side Of Front Bumper

G00477221

Courtesy of AMERICAN HONDA MOTOR CO., INC.

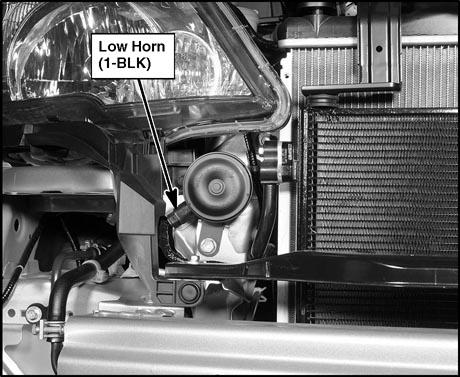

Fig 9: Behind Right Side Of Front Bumper

G00477219

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 10: Behind Middle Of Front Bumper

G00453659

Courtesy of AMERICAN HONDA MOTOR CO., INC.

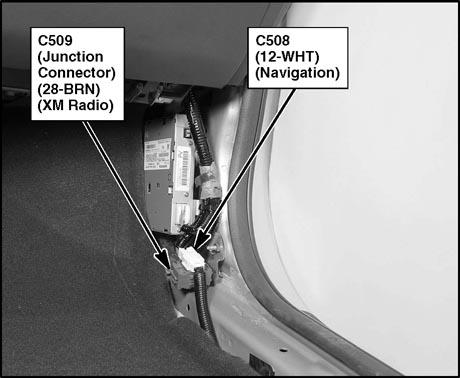

Fig 11: Behind Right Kick Panel

G00477270

Courtesy of AMERICAN HONDA MOTOR CO., INC.

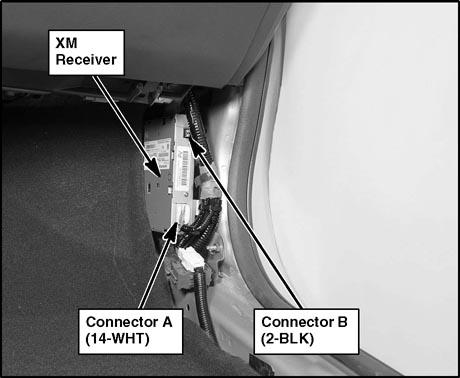

Fig 12: Behind Right Kick Panel (W/XM Radio)

G00477269

Courtesy of AMERICAN HONDA MOTOR CO., INC.

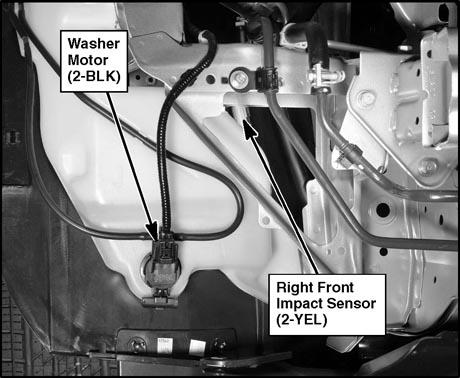

Fig 13: Behind Right Side Of Front Bumper

G00477213

Courtesy of AMERICAN HONDA MOTOR CO., INC.

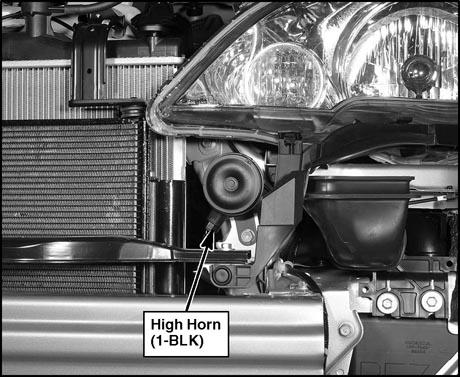

Fig 14: Behind Left Side Of Front Bumper

G00477220

Courtesy of AMERICAN HONDA MOTOR CO., INC.

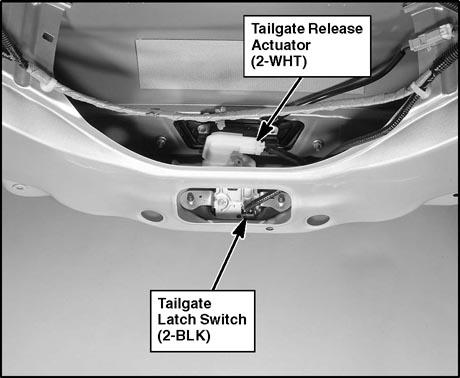

Fig 15: Bottom Of Tailgate

G00477317

Courtesy of AMERICAN HONDA MOTOR CO., INC.

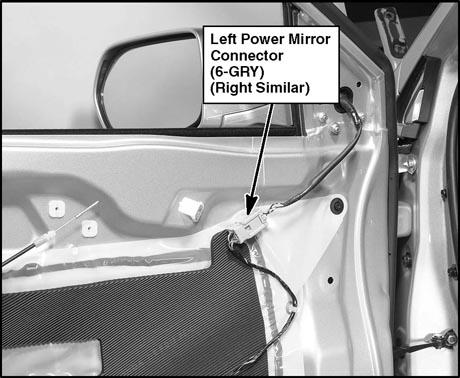

Fig 16: Driver's Door

G00477290

Courtesy of AMERICAN HONDA MOTOR CO., INC.

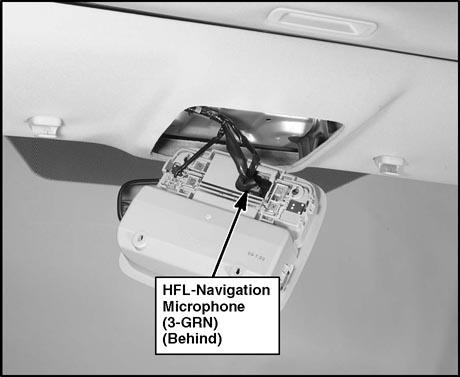

Fig 17: Center Front Of Roof (W/Navigation)

G00477311

Courtesy of AMERICAN HONDA MOTOR CO., INC.

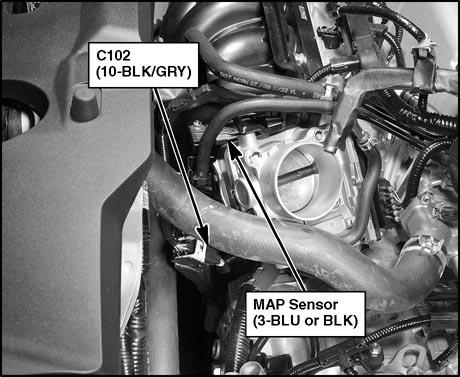

Fig 18: Left Side Of Engine

G00477201

Courtesy of AMERICAN HONDA MOTOR CO., INC.

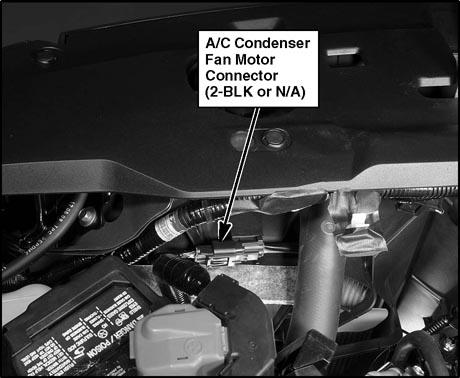

Fig 19: Front Of Engine Compartment

G00477204

Courtesy of AMERICAN HONDA MOTOR CO., INC.

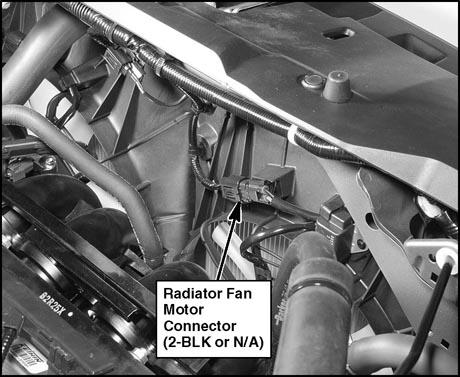

Fig 20: Front Of Engine Compartment

G00477202

Courtesy of AMERICAN HONDA MOTOR CO., INC.

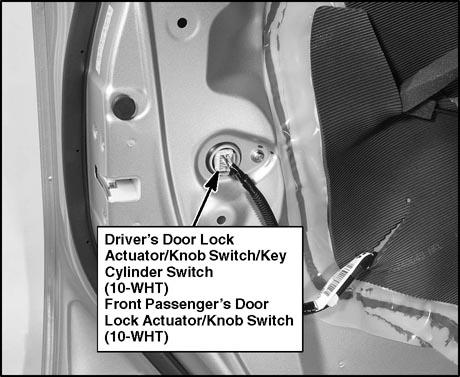

Fig 21: Driver's Door (Front Passenger's Similar)

G00477292

Courtesy of AMERICAN HONDA MOTOR CO., INC.

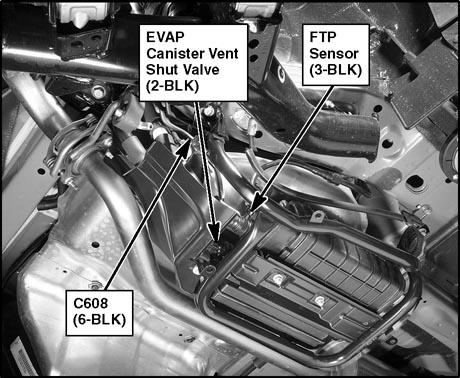

Fig 22: Under Right Rear Of Vehicle

G00477301

Courtesy of AMERICAN HONDA MOTOR CO., INC.

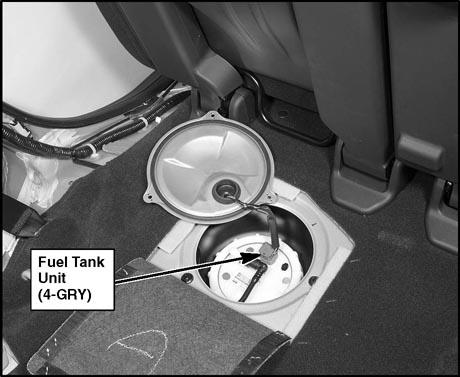

Fig 23: Left Side Of Rear Seat

G00477303

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 24: Left Side Of Front Passenger's Seat Back

G00477289

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 25: Under Steering Column Cover

G00444998

Courtesy of AMERICAN HONDA MOTOR CO., INC.

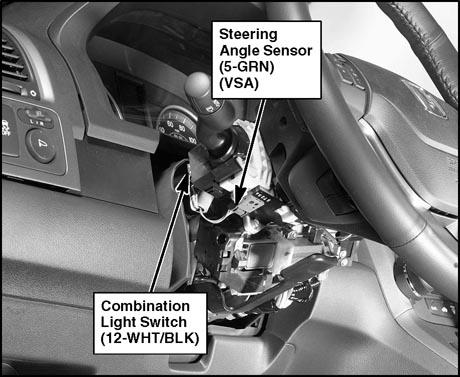

Fig 26: Under Steering Column Cover

G00477234

Courtesy of AMERICAN HONDA MOTOR CO., INC.

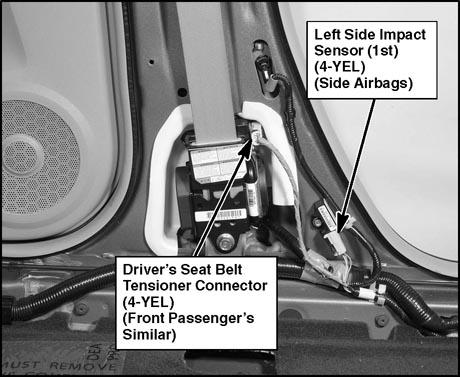

Fig 27: Left "B" Pillar

G00477296

Courtesy of AMERICAN HONDA MOTOR CO., INC.

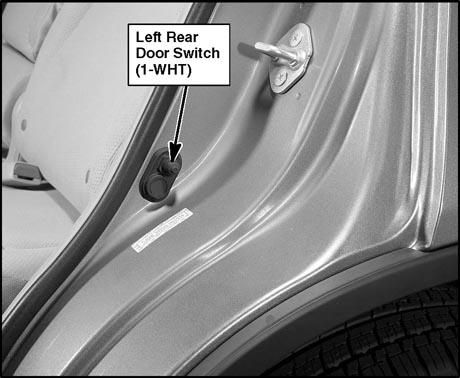

Fig 28: Left "C" Pillar (Right Similar)

G00477302

Courtesy of AMERICAN HONDA MOTOR CO., INC.

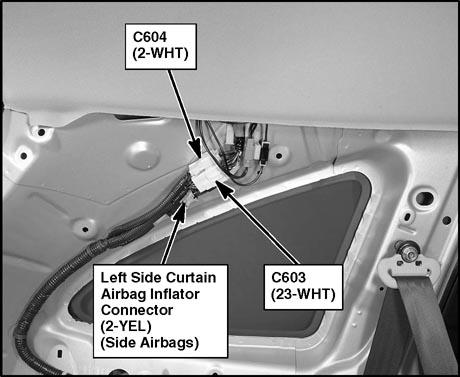

Fig 29: Left "D" Pillar

G00477308

Courtesy of AMERICAN HONDA MOTOR CO., INC.

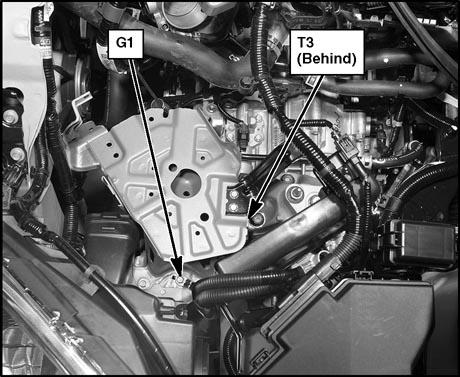

Fig 30: Left Front Of Engine Compartment

G00477200

Courtesy of AMERICAN HONDA MOTOR CO., INC.

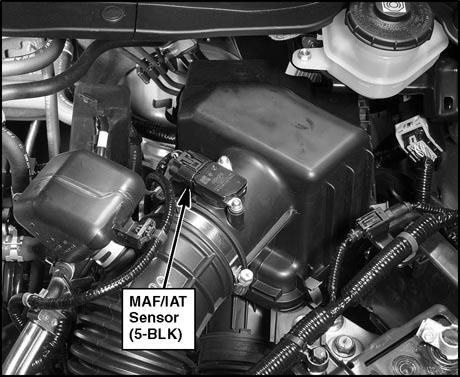

Fig 31: Left Side Of Engine Compartment

G00477210

Courtesy of AMERICAN HONDA MOTOR CO., INC.

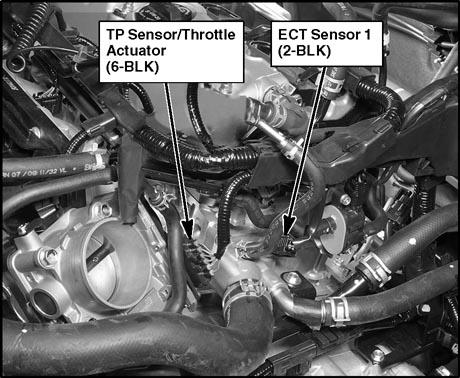

Fig 32: Left Rear Of Engine

G00477197

Courtesy of AMERICAN HONDA MOTOR CO., INC.

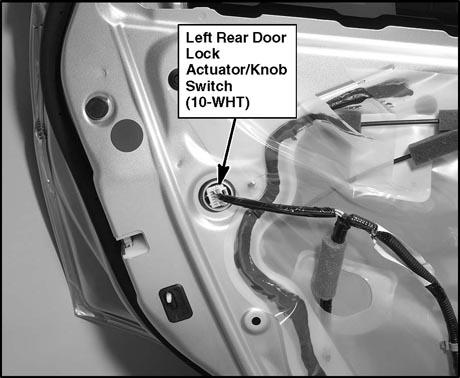

Fig 33: Left Rear Door

G00477293

Courtesy of AMERICAN HONDA MOTOR CO., INC.

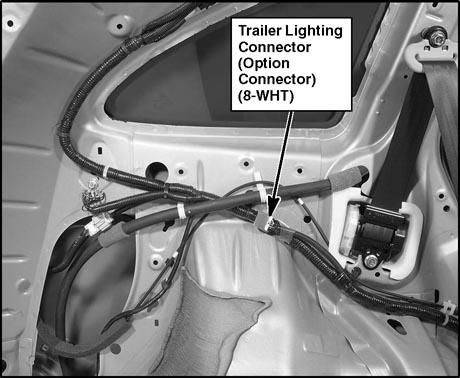

Fig 34: Left Side Of Cargo Area

G00477306

Courtesy of AMERICAN HONDA MOTOR CO., INC.

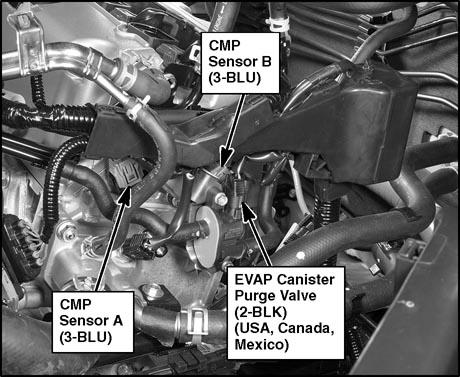

Fig 35: Left Side Of Engine

G00477196

Courtesy of AMERICAN HONDA MOTOR CO., INC.

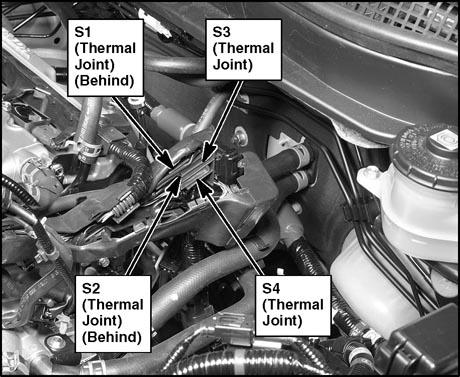

Fig 36: Left Side Of Engine Compartment

G00477194

Courtesy of AMERICAN HONDA MOTOR CO., INC.

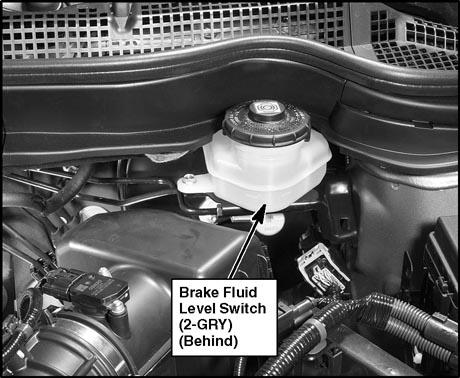

Fig 37: Left Side Of Engine Compartment

G00477211

Courtesy of AMERICAN HONDA MOTOR CO., INC.

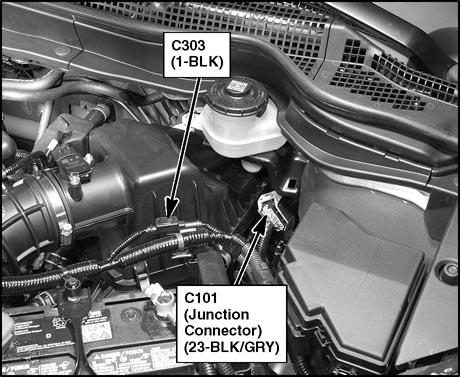

Fig 38: Left Side Of Engine Compartment

G00477209

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 39: Left Side Of Engine Compartment

G00477207

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 40: Left Side Of Engine Compartment

G00477206

Courtesy of AMERICAN HONDA MOTOR CO., INC.

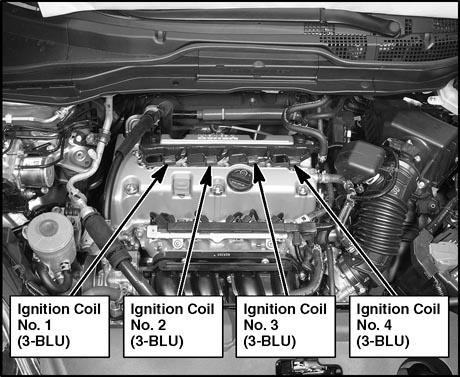

Fig 41: Middle Of Engine

G00477190

Courtesy of AMERICAN HONDA MOTOR CO., INC.

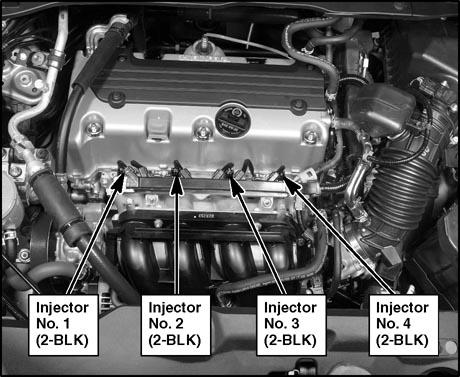

Fig 42: Middle Of Engine

G00477191

Courtesy of AMERICAN HONDA MOTOR CO., INC.

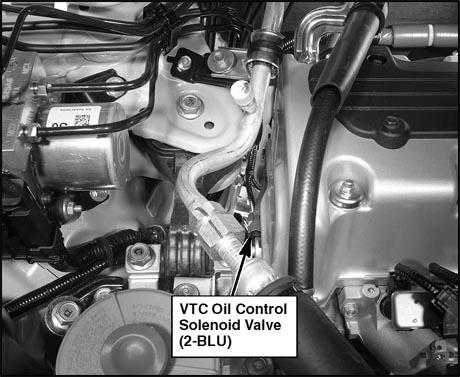

Fig 43: Right Side Of Engine

G00477182

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 44: Center Of Roof

G00477312

Courtesy of AMERICAN HONDA MOTOR CO., INC.

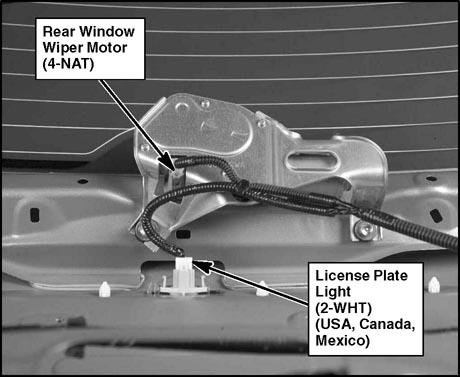

Fig 45: Middle Of Tailgate

G00477315

Courtesy of AMERICAN HONDA MOTOR CO., INC.

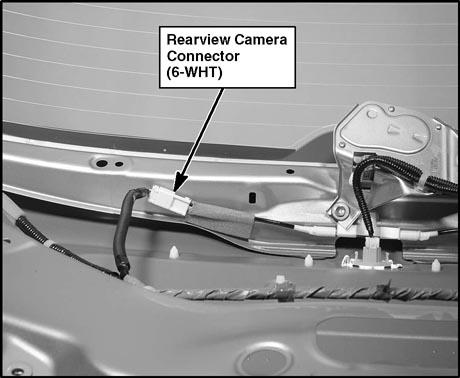

Fig 46: Middle Of Tailgate (W/Navigation)

G00477316

Courtesy of AMERICAN HONDA MOTOR CO., INC.

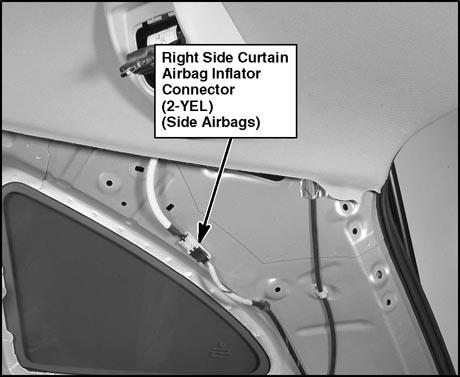

Fig 47: Right "D" Pillar

G00477309

Courtesy of AMERICAN HONDA MOTOR CO., INC.

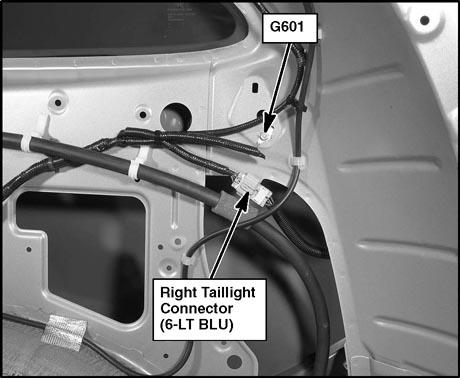

Fig 48: Right Side Of Cargo Area

G00477310

Courtesy of AMERICAN HONDA MOTOR CO., INC.

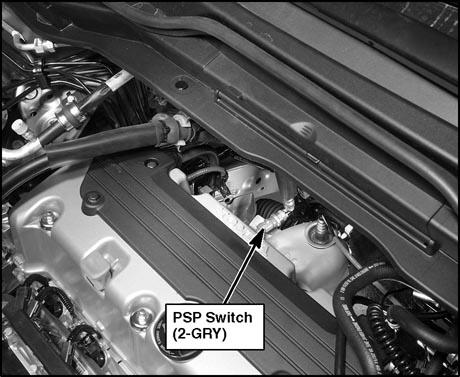

Fig 49: Right Side Of Engine Compartment

G00477189

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 50: Right Side Of Engine Compartment

G00477180

Courtesy of AMERICAN HONDA MOTOR CO., INC.

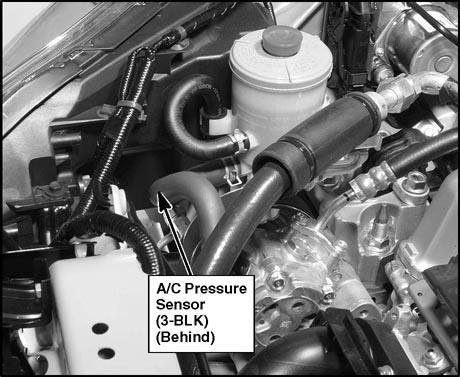

Fig 51: Right Side Of Engine Compartment

G00477183

Courtesy of AMERICAN HONDA MOTOR CO., INC.

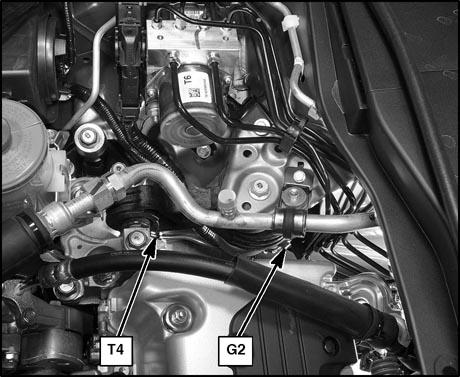

Fig 52: Right Side Of Engine Compartment

G00477181

Courtesy of AMERICAN HONDA MOTOR CO., INC.

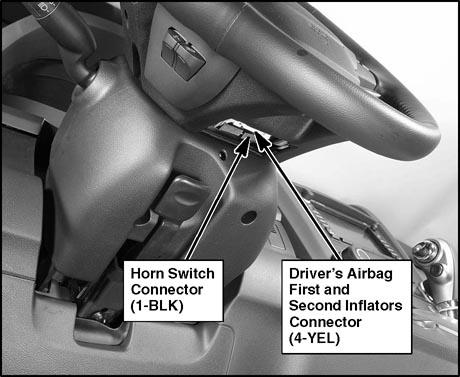

Fig 53: Steering Wheel

G00477233

Courtesy of AMERICAN HONDA MOTOR CO., INC.

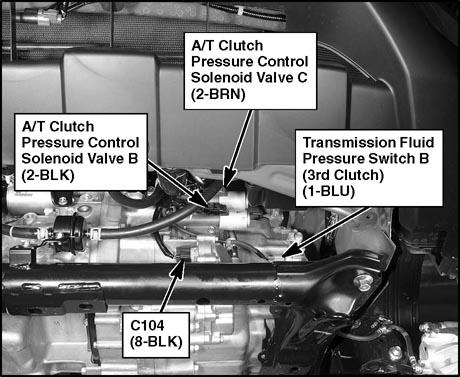

Fig 54: Transmission Housing

G00477225

Courtesy of AMERICAN HONDA MOTOR CO., INC.

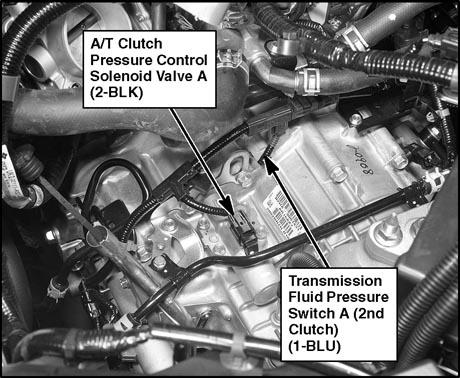

Fig 55: Transmission Housing

G00477199

Courtesy of AMERICAN HONDA MOTOR CO., INC.

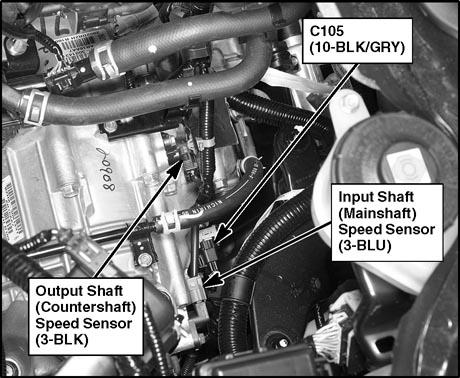

Fig 56: Transmission Housing

G00477198

Courtesy of AMERICAN HONDA MOTOR CO., INC.

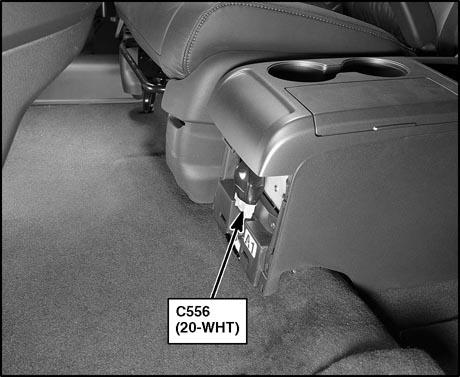

Fig 57: Under Center Console

G00477299

Courtesy of AMERICAN HONDA MOTOR CO., INC.

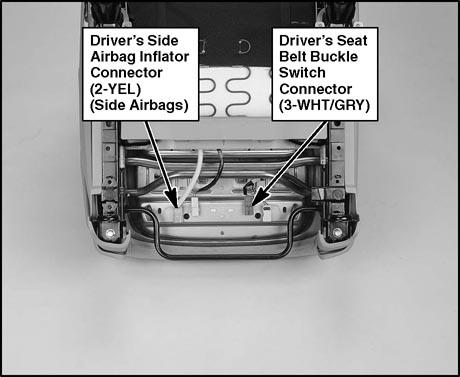

Fig 58: Under Driver's Seat

G00477272

Courtesy of AMERICAN HONDA MOTOR CO., INC.

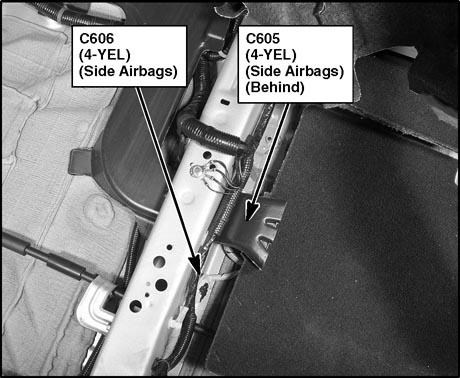

Fig 59: Left Side Of Floor

G00477298

Courtesy of AMERICAN HONDA MOTOR CO., INC.

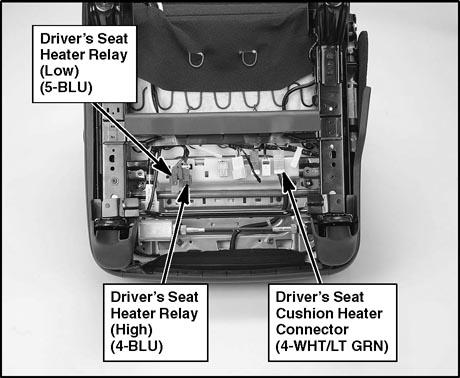

Fig 60: Under Driver's Seat

G00477275

Courtesy of AMERICAN HONDA MOTOR CO., INC.

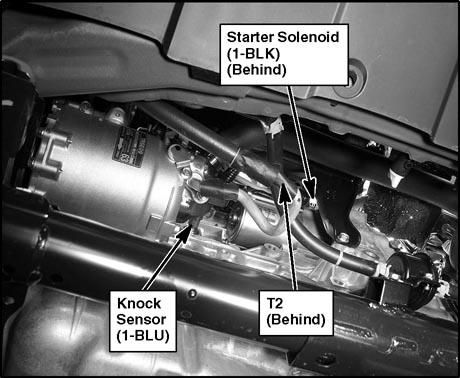

Fig 61: Under Front Of Engine

G00477228

Courtesy of AMERICAN HONDA MOTOR CO., INC.

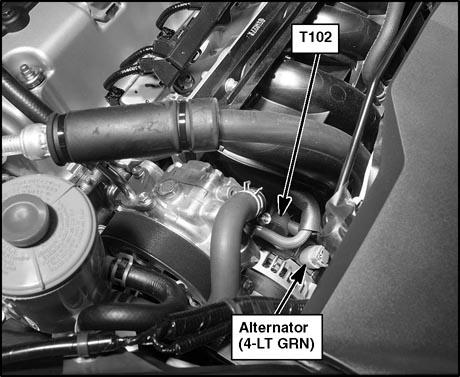

Fig 62: Right Side Of Engine

G00477184

Courtesy of AMERICAN HONDA MOTOR CO., INC.

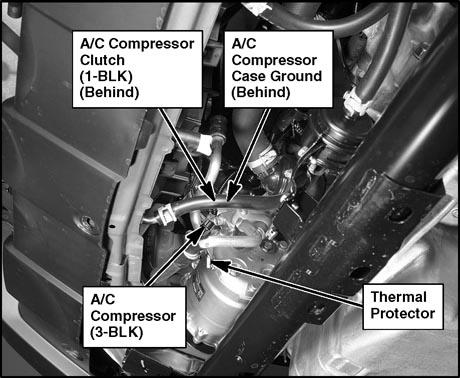

Fig 63: Left Front Of Engine

G00477229

Courtesy of AMERICAN HONDA MOTOR CO., INC.

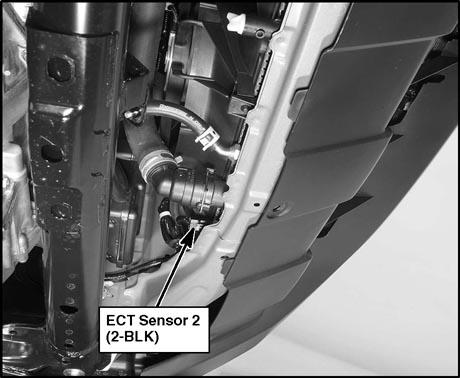

Fig 64: Under Front Of Engine Compartment

G00477227

Courtesy of AMERICAN HONDA MOTOR CO., INC.

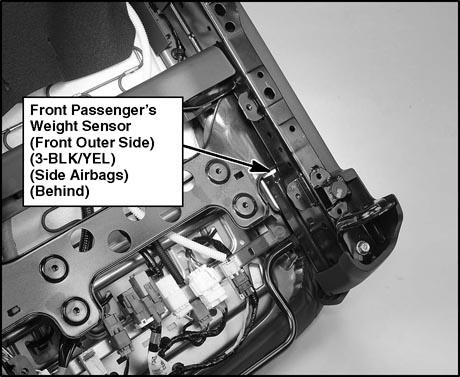

Fig 65: Under Front Passenger's Seat

G00477288

Courtesy of AMERICAN HONDA MOTOR CO., INC.

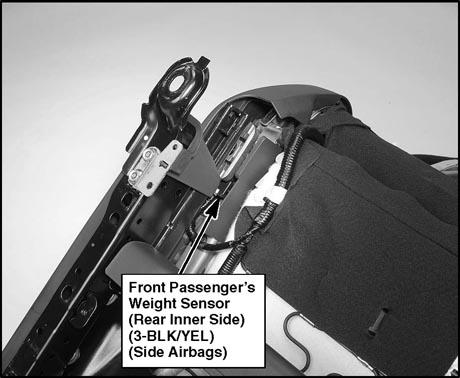

Fig 66: Under Front Passenger's Seat

G00477286

Courtesy of AMERICAN HONDA MOTOR CO., INC.

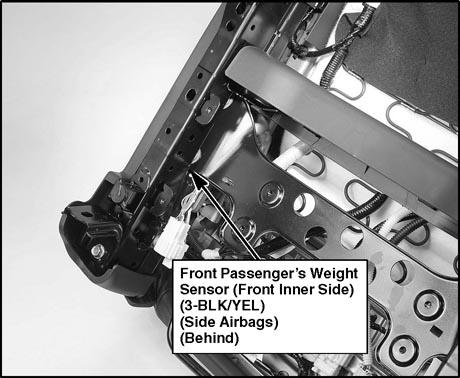

Fig 67: Under Front Passenger's Seat

G00477285

Courtesy of AMERICAN HONDA MOTOR CO., INC.

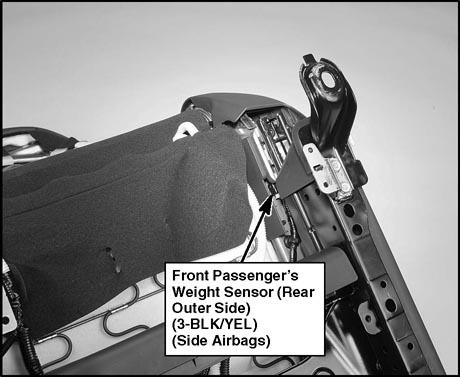

Fig 68: Under Front Passenger's Seat

G00477287

Courtesy of AMERICAN HONDA MOTOR CO., INC.

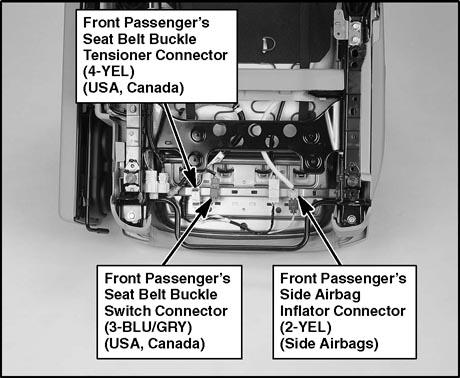

Fig 69: Under Front Passenger's Seat

G00477280

Courtesy of AMERICAN HONDA MOTOR CO., INC.

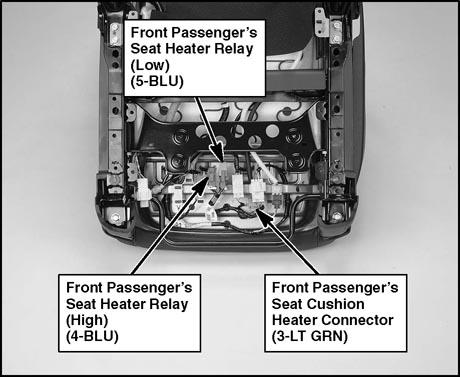

Fig 70: Under Front Passenger's Seat

G00477284

Courtesy of AMERICAN HONDA MOTOR CO., INC.

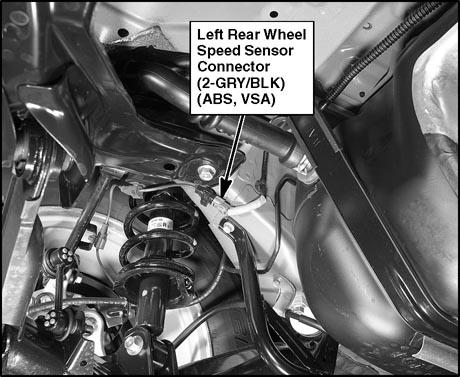

Fig 71: Under Left Rear Of Vehicle (Right Similar)

G00477304

Courtesy of AMERICAN HONDA MOTOR CO., INC.

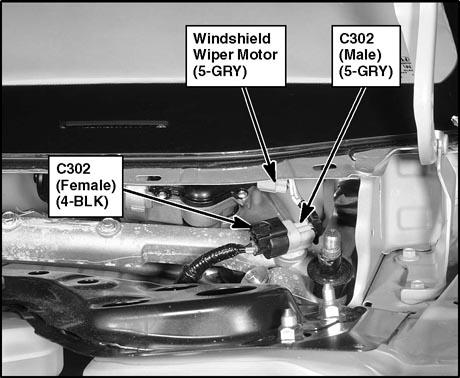

Fig 72: Under Left Side Of Cowl Cover

G00477212

Courtesy of AMERICAN HONDA MOTOR CO., INC.

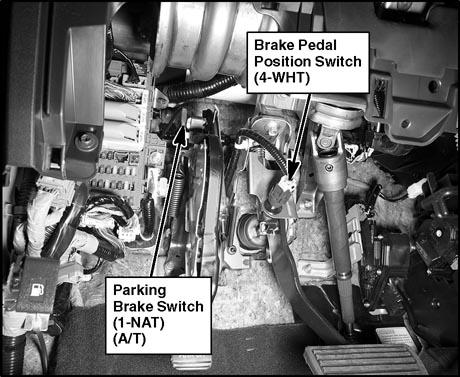

Fig 73: Under Left Side Of Dash

G00477242

Courtesy of AMERICAN HONDA MOTOR CO., INC.

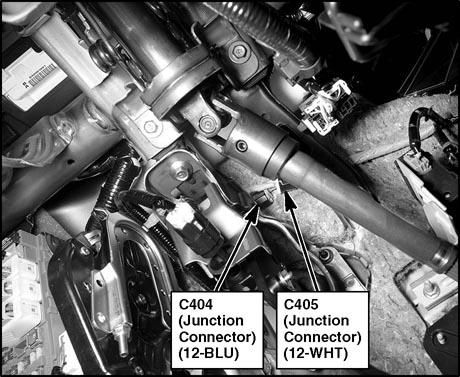

Fig 74: Under Left Side Of Dash

G00477243

Courtesy of AMERICAN HONDA MOTOR CO., INC.

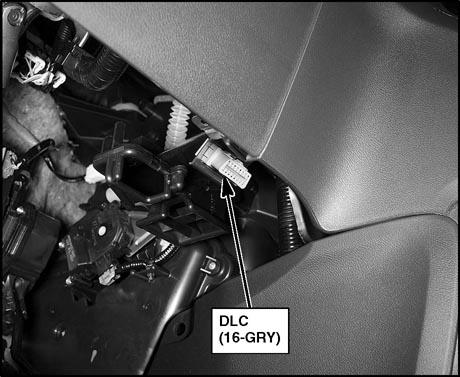

Fig 75: Under Left Side Of Dash

G00477248

Courtesy of AMERICAN HONDA MOTOR CO., INC.

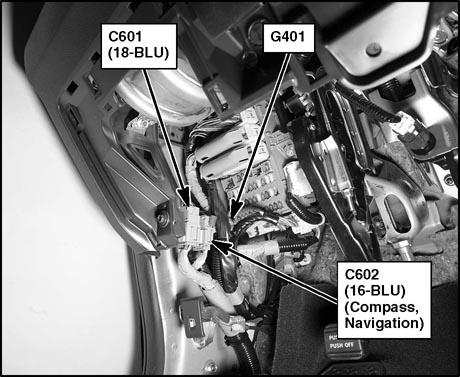

Fig 76: Behind Left Kick Panel

G00477238

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 77: Under Left Side Of Dash

G00477240

Courtesy of AMERICAN HONDA MOTOR CO., INC.

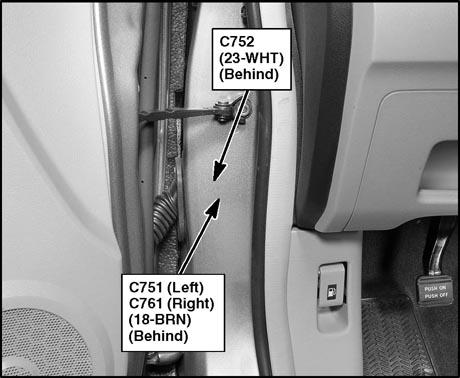

Fig 78: Left "A" Pillar

G00477236

Courtesy of AMERICAN HONDA MOTOR CO., INC.

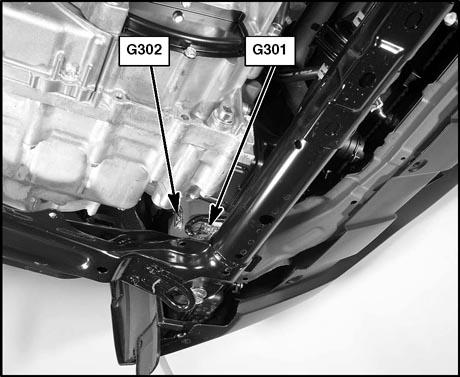

Fig 79: Under Left Side Of Engine Compartment

G00477224

Courtesy of AMERICAN HONDA MOTOR CO., INC.

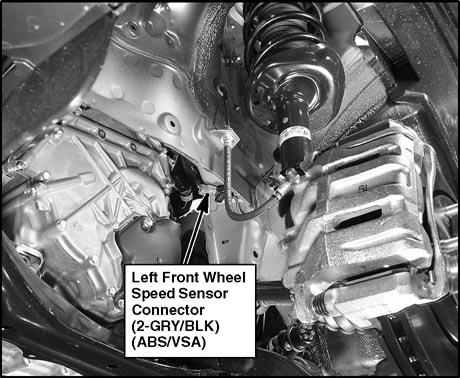

Fig 80: Under Left Side Of Engine Compartment

G00477222

Courtesy of AMERICAN HONDA MOTOR CO., INC.

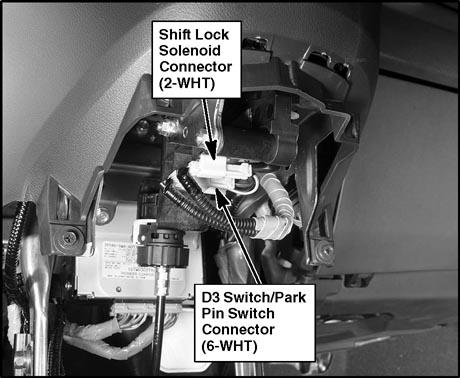

Fig 81: Under Middle Of Dash

G00477259

Courtesy of AMERICAN HONDA MOTOR CO., INC.

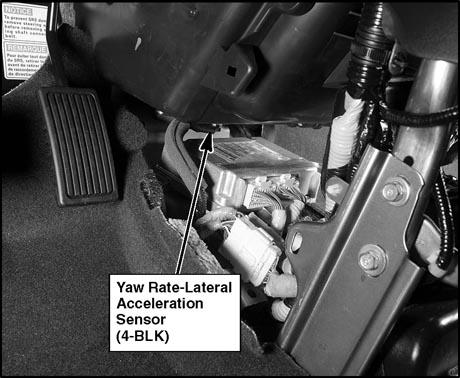

Fig 82: Under Middle Of Dash

G00477255

Courtesy of AMERICAN HONDA MOTOR CO., INC.

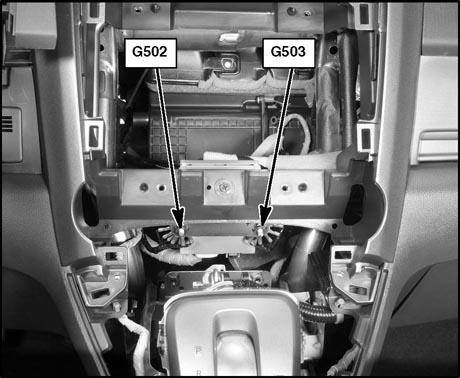

Fig 83: Under Middle Of Dash

G00477253

Courtesy of AMERICAN HONDA MOTOR CO., INC.

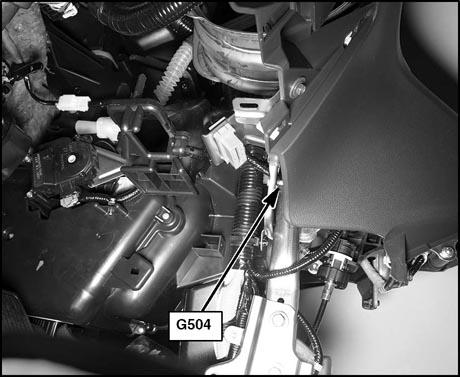

Fig 84: Under Middle Of Dash

G00477258

Courtesy of AMERICAN HONDA MOTOR CO., INC.

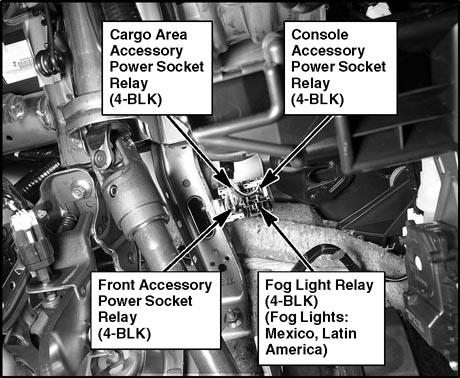

Fig 85: Under Left Side Of Dash

G00477245

Courtesy of AMERICAN HONDA MOTOR CO., INC.

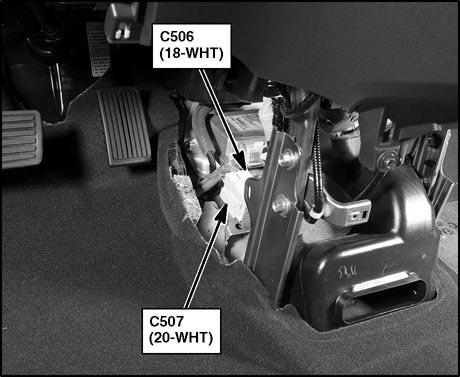

Fig 86: Under Middle Of Dash

G00477257

Courtesy of AMERICAN HONDA MOTOR CO., INC.

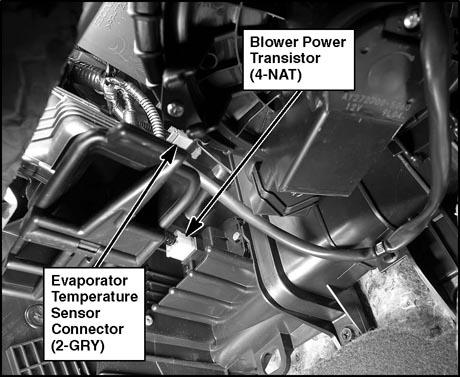

Fig 87: Under Right Side Of Dash

G00477267

Courtesy of AMERICAN HONDA MOTOR CO., INC.

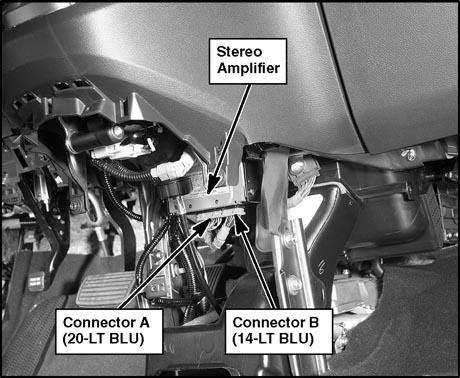

Fig 88: Under Middle Of Dash

G00477261

Courtesy of AMERICAN HONDA MOTOR CO., INC.

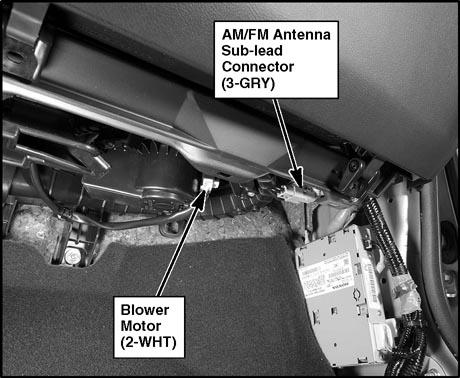

Fig 89: Under Right Side Of Dash

G00477268

Courtesy of AMERICAN HONDA MOTOR CO., INC.

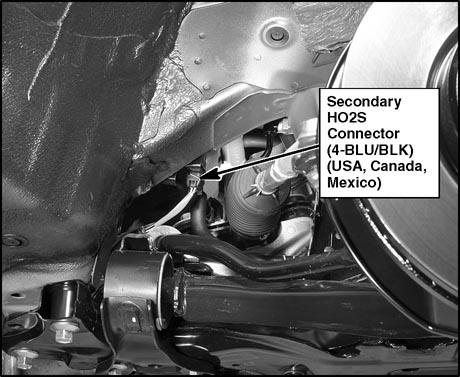

Fig 90: Under Right Side Of Engine Compartment

G00477187

Courtesy of AMERICAN HONDA MOTOR CO., INC.

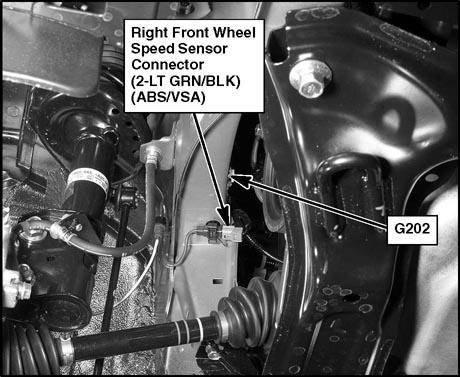

Fig 91: Under Right Side Of Engine Compartment

G00477186

Courtesy of AMERICAN HONDA MOTOR CO., INC.

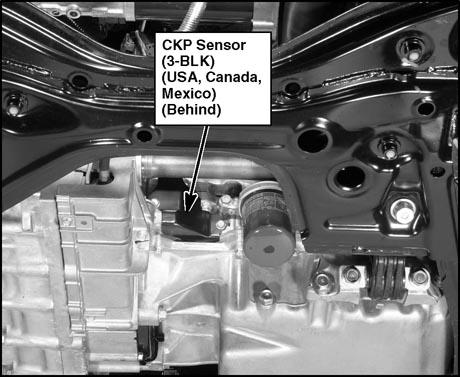

Fig 92: Under Middle Rear Of Engine

G00477226

Courtesy of AMERICAN HONDA MOTOR CO., INC.

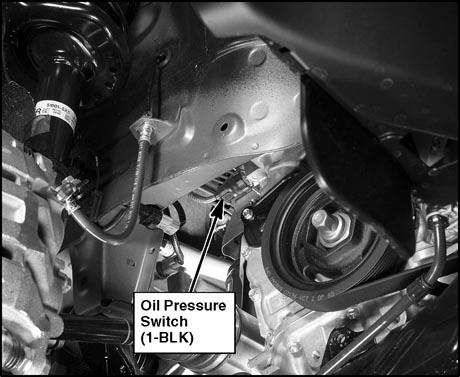

Fig 93: Under Right Side Of Engine

G00477185

Courtesy of AMERICAN HONDA MOTOR CO., INC.

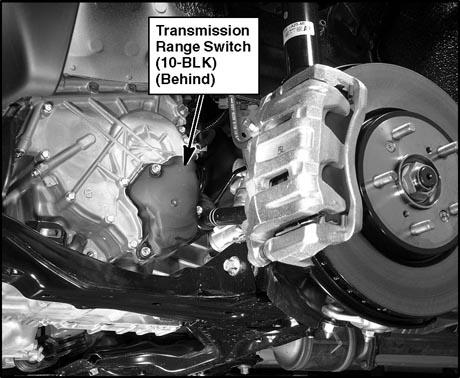

Fig 94: On Transmission

G00477223

Courtesy of AMERICAN HONDA MOTOR CO., INC.

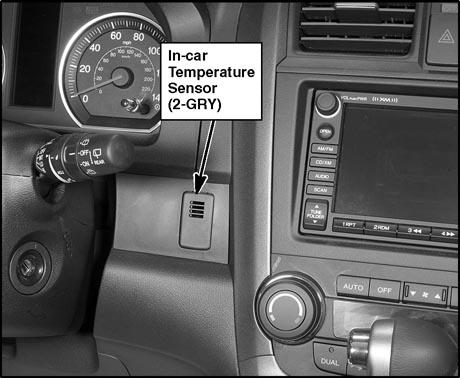

Fig 95: Left Side Of Dash

G00477231

Courtesy of AMERICAN HONDA MOTOR CO., INC.

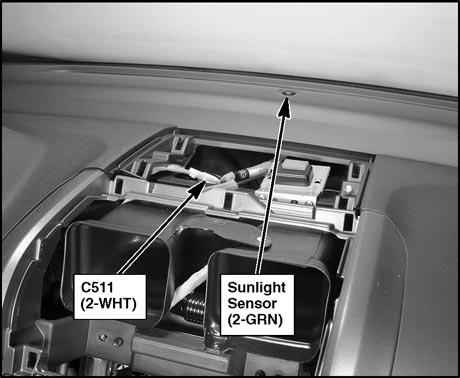

Fig 96: Middle Of Dash

G00477251

Courtesy of AMERICAN HONDA MOTOR CO., INC.

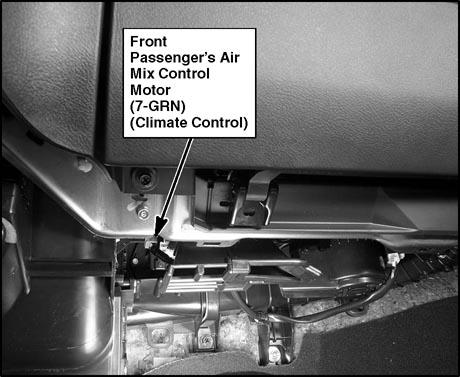

Fig 97: Under Right Side Of Dash

G00477266

Courtesy of AMERICAN HONDA MOTOR CO., INC.

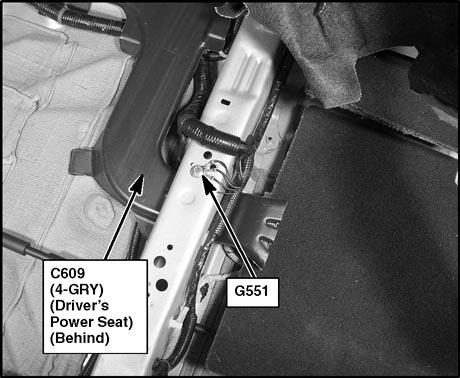

Fig 98: Left Side Of Floor

G00477297

Courtesy of AMERICAN HONDA MOTOR CO., INC.

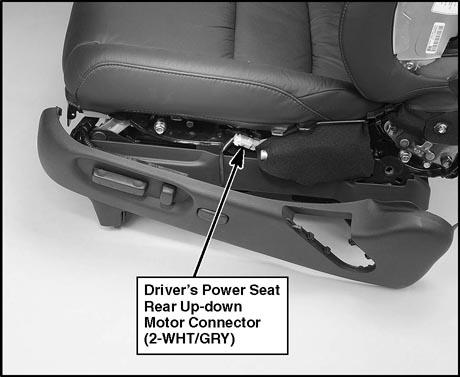

Fig 99: Left Side Of Driver's Seat

G00477276

Courtesy of AMERICAN HONDA MOTOR CO., INC.

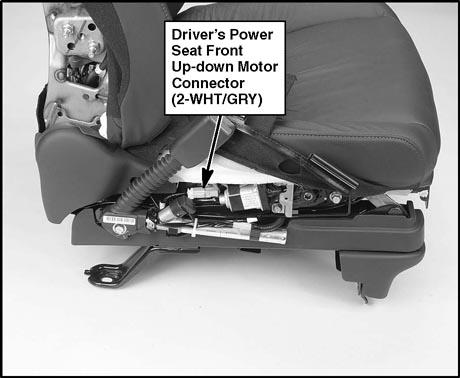

Fig 100: Right Side Of Driver's Seat

G00477279

Courtesy of AMERICAN HONDA MOTOR CO., INC.

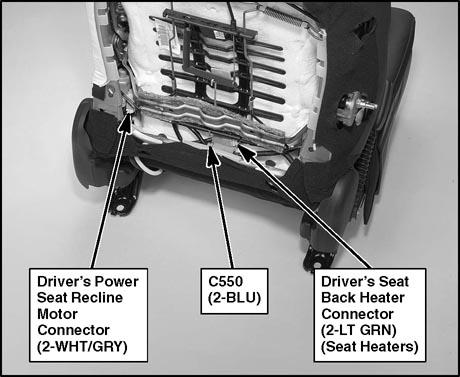

Fig 101: Behind Driver's Seat Back

G00477277

Courtesy of AMERICAN HONDA MOTOR CO., INC.

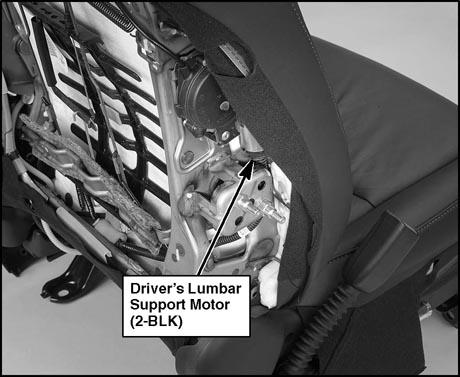

Fig 102: Right Side Of Driver's Seat Back

G00477278

Courtesy of AMERICAN HONDA MOTOR CO., INC.

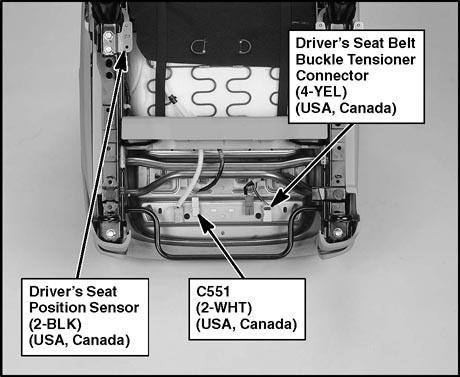

Fig 103: Under Driver's Seat (W/O Driver's Power Seat)

G00477271

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 104: Under Left Side Of Dash

G00477246

Courtesy of AMERICAN HONDA MOTOR CO., INC.

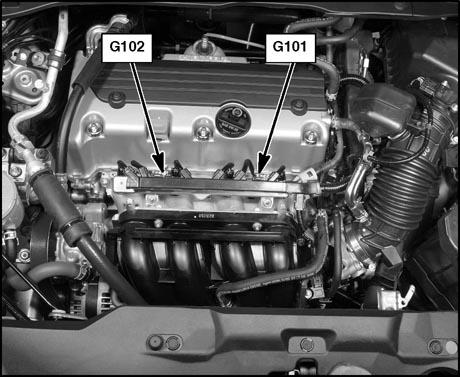

Fig 105: Middle Of Engine

G00477192

Courtesy of AMERICAN HONDA MOTOR CO., INC.

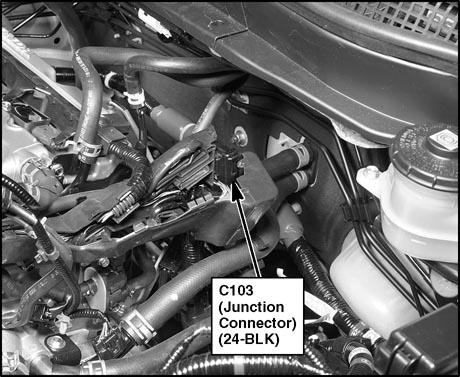

Fig 106: Left Side Of Engine Compartment

G00477193

Courtesy of AMERICAN HONDA MOTOR CO., INC.

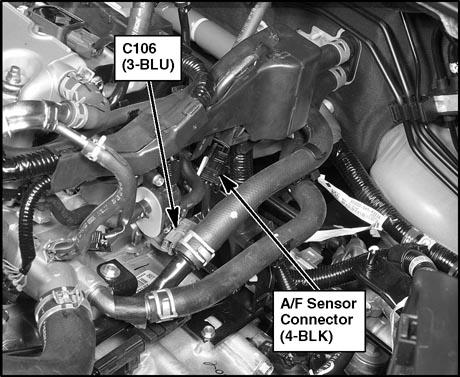

Fig 107: Left Side Of Engine Compartment

G00477195

Courtesy of AMERICAN HONDA MOTOR CO., INC.

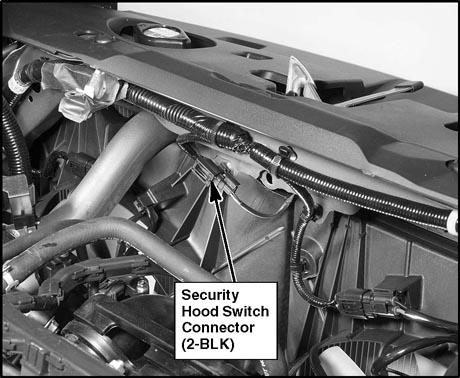

Fig 108: Front Of Engine Compartment

G00477203

Courtesy of AMERICAN HONDA MOTOR CO., INC.

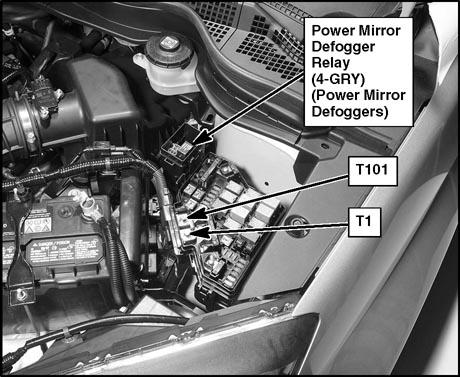

Fig 109: Left Side Of Engine Compartment

G00477208

Courtesy of AMERICAN HONDA MOTOR CO., INC.

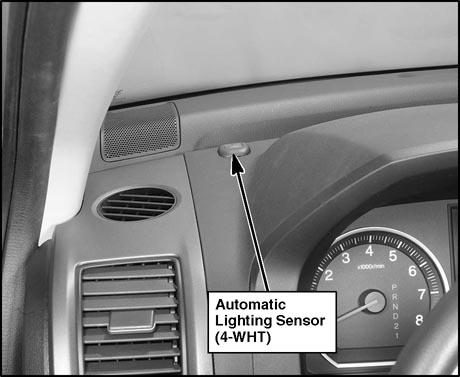

Fig 110: Left Side Of Dash

G00477230

Courtesy of AMERICAN HONDA MOTOR CO., INC.

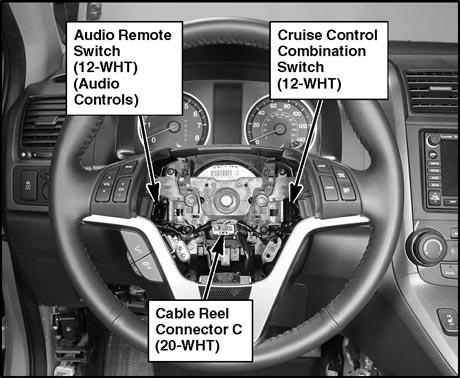

Fig 111: In Steering Wheel

G00477232

Courtesy of AMERICAN HONDA MOTOR CO., INC.

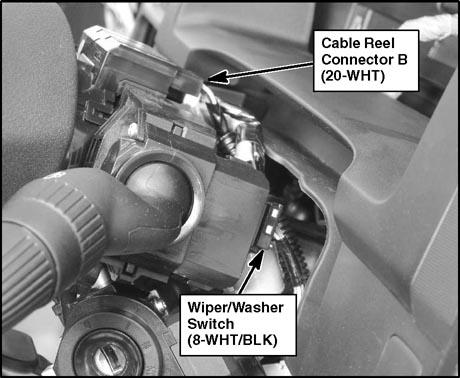

Fig 112: In Steering Column Cover

G00477235

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 113: Under Left Side Of Dash

G00477239

Courtesy of AMERICAN HONDA MOTOR CO., INC.

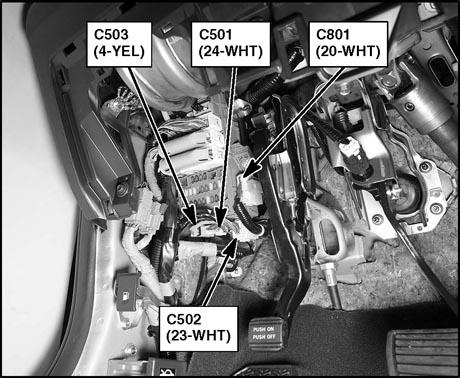

Fig 114: Under Left Side Of Dash

G00477241

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 115: Under Left Side Of Dash

G00477244

Courtesy of AMERICAN HONDA MOTOR CO., INC.

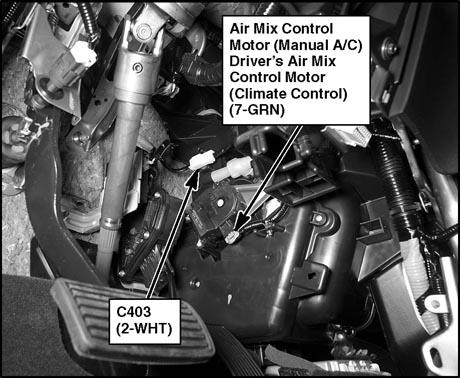

Fig 116: Under Left Side Of Dash

G00477247

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 117: Under Left Side Of Dash

G00477249

Courtesy of AMERICAN HONDA MOTOR CO., INC.

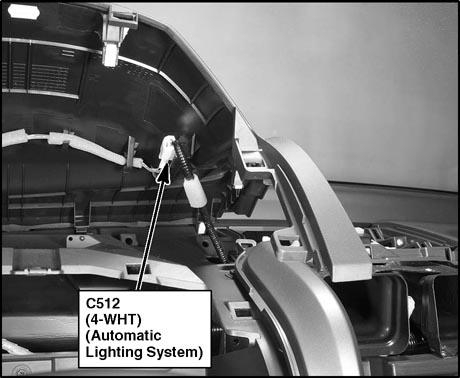

Fig 118: Left Side Of Dash

G00477250

Courtesy of AMERICAN HONDA MOTOR CO., INC.

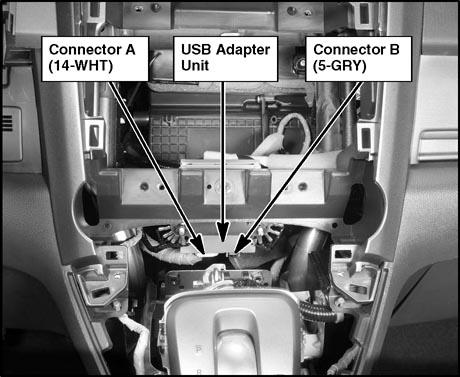

Fig 119: Under Middle Of Dash

G00477254

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 120: Under Middle Of Dash

G00477256

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 121: Under Middle Of Dash

G00477260

Courtesy of AMERICAN HONDA MOTOR CO., INC.

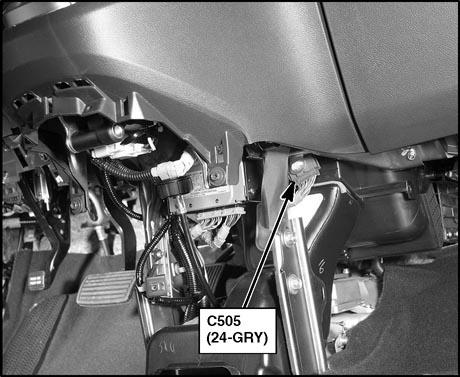

Fig 122: Under Middle Of Dash

G00477262

Courtesy of AMERICAN HONDA MOTOR CO., INC.

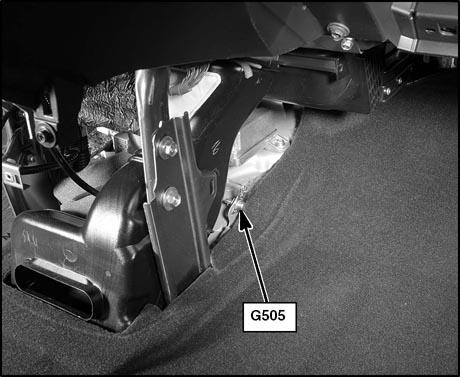

Fig 123: Under Middle Of Dash

G00477263

Courtesy of AMERICAN HONDA MOTOR CO., INC.

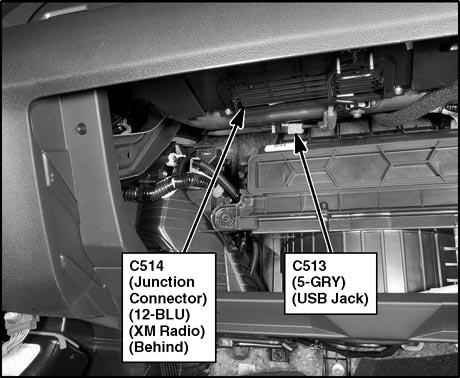

Fig 124: Behind Glove Box

G00477265

Courtesy of AMERICAN HONDA MOTOR CO., INC.

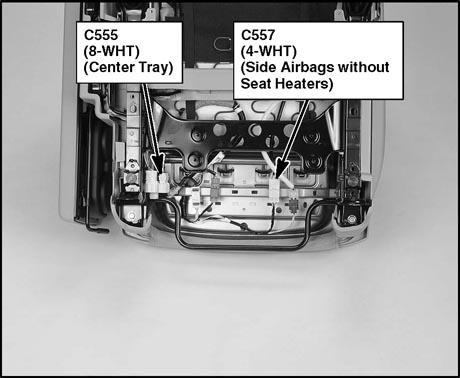

Fig 125: Under Front Passenger's Seat

G00477281

Courtesy of AMERICAN HONDA MOTOR CO., INC.

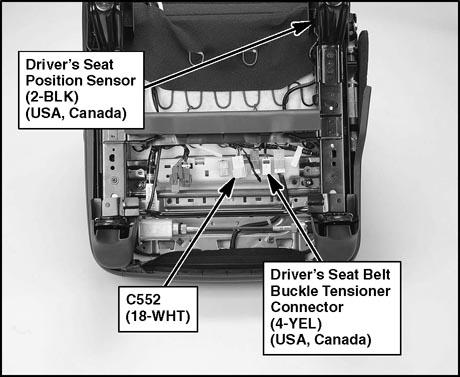

Fig 126: Under Driver's Seat (W/Driver's Power Seat)

G00477273

Courtesy of AMERICAN HONDA MOTOR CO., INC.

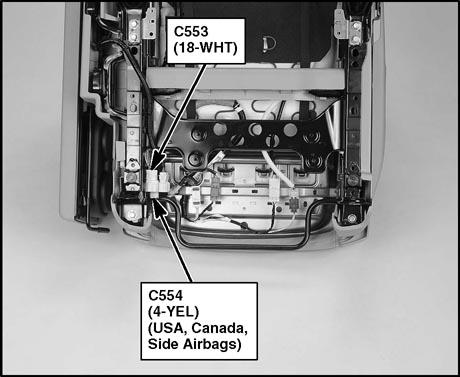

Fig 127: Under Front Passenger's Seat

G00477282

Courtesy of AMERICAN HONDA MOTOR CO., INC.

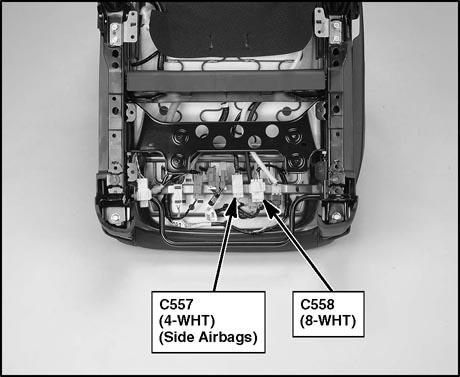

Fig 128: Under Front Passenger's Seat

G00477283

Courtesy of AMERICAN HONDA MOTOR CO., INC.

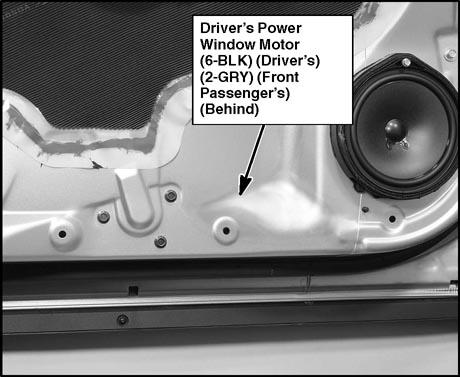

Fig 129: Driver's Door (Front Passenger's Similar)

G00477291

Courtesy of AMERICAN HONDA MOTOR CO., INC.

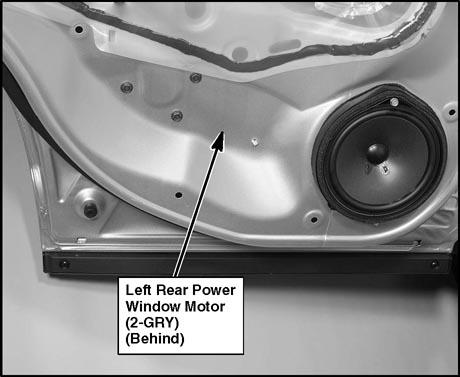

Fig 130: Left Rear Door (Right Similar)

G00477294

Courtesy of AMERICAN HONDA MOTOR CO., INC.

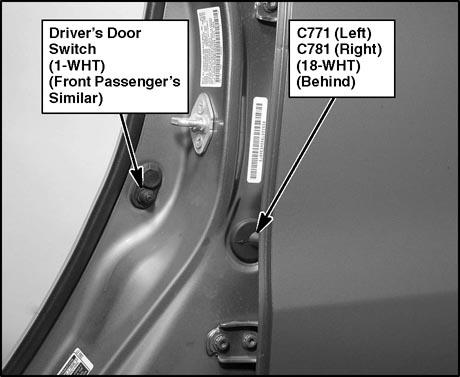

Fig 131: Left "B" Pillar (Right Similar)

G00477295

Courtesy of AMERICAN HONDA MOTOR CO., INC.

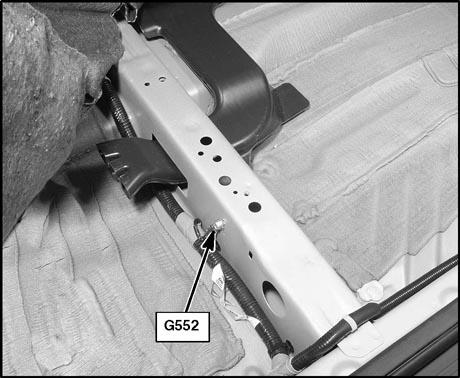

Fig 132: Right Side Of Floor

G00477300

Courtesy of AMERICAN HONDA MOTOR CO., INC.

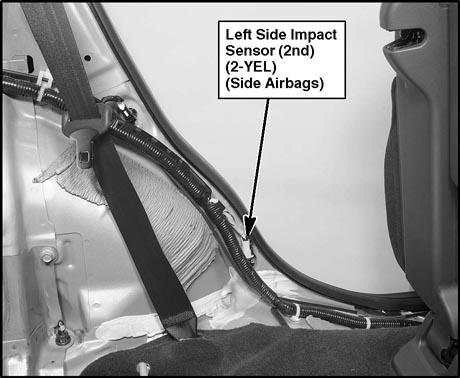

Fig 133: Left "C" Pillar

G00477305

Courtesy of AMERICAN HONDA MOTOR CO., INC.

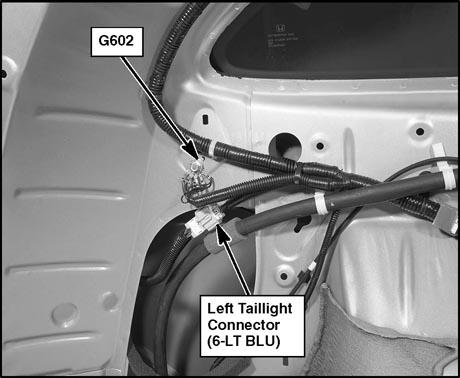

Fig 134: Left Side Of Cargo Area

G00477307

Courtesy of AMERICAN HONDA MOTOR CO., INC.

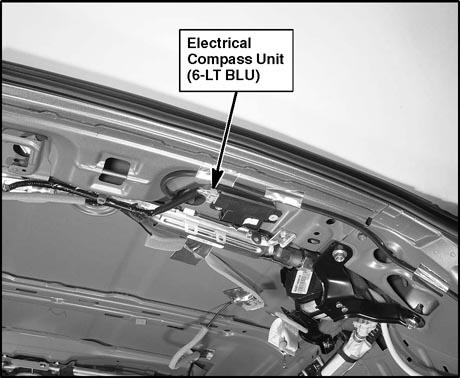

Fig 135: Rear Of Roof

G00477313

Courtesy of AMERICAN HONDA MOTOR CO., INC.

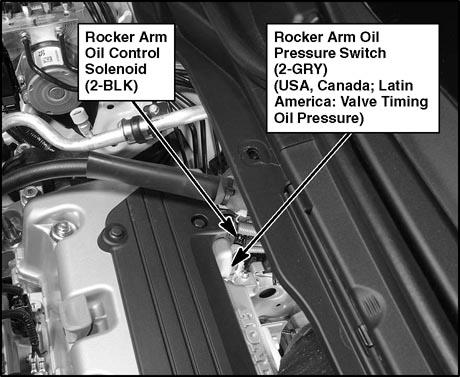

Fig 136: Right Side Of Engine

G00477188

Courtesy of AMERICAN HONDA MOTOR CO., INC.
