Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Modulator Control Unit | Right side of engine compartment. See Figure. |

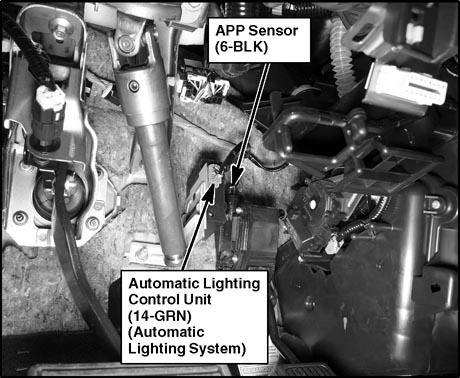

| Automatic Lighting Control Unit | Under left side of dash. See Figure. |
| ELD Unit (16) | In underhood fuse/relay box. See Figure. |

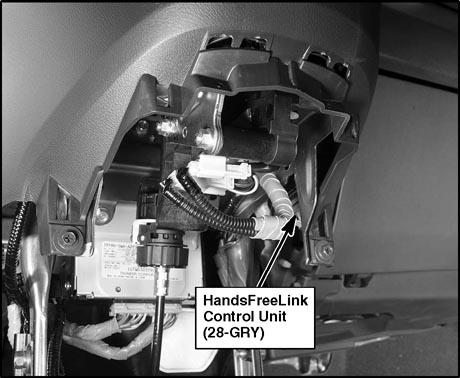

| HandsFreeLink Control Unit | Under Middle of Dash. See Figure. |
| Immobilizer-Keyless Control Unit | On steering column, integral to ignition switch. See Figure. |

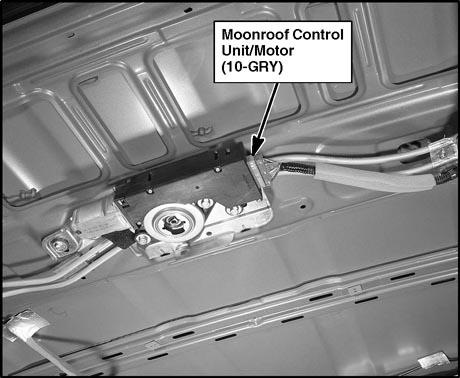

| Moonroof Control Unit/Motor | Center of roof. See Figure. |

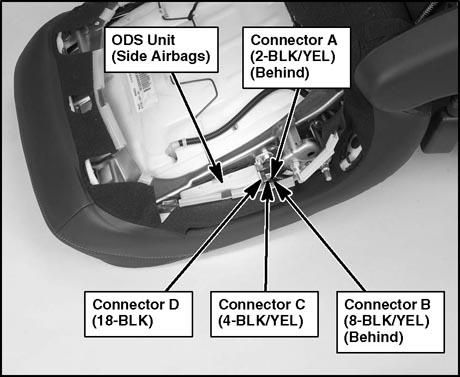

| ODS Unit | In front passenger's seat. See Figure. |

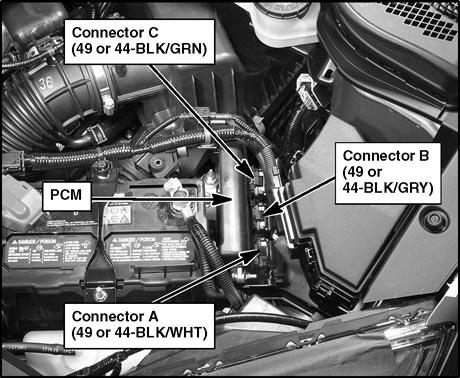

| PCM | Left side of engine compartment. See Figure. |

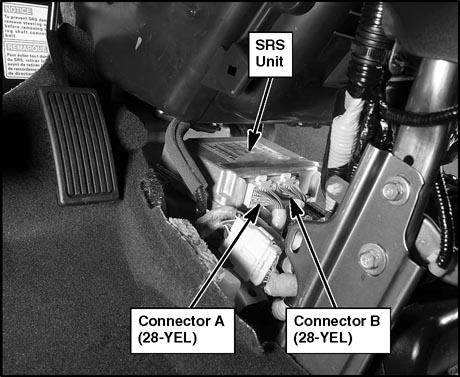

| SRS Unit | Under middle of dash. See Figure. |

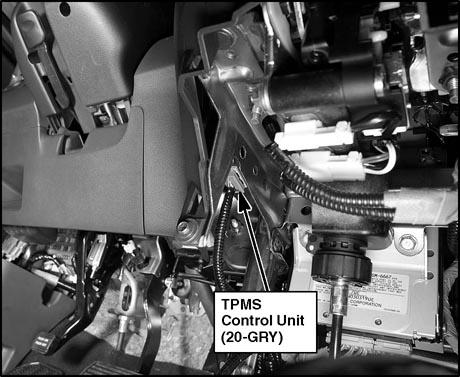

| TPMS Control Unit | Under left side of dash. See Figure. |

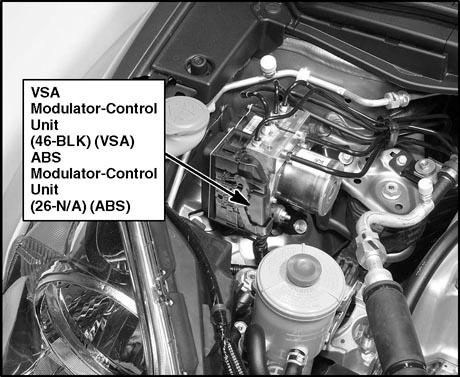

| VSA Modulator Control Unit | Right side of engine compartment. See Figure. |
