CR-V EX, 2.4 RE4
›
Repair and Diagnosis
›
Transmission
›
Automatic Trans
›
Automatic Transmission
›
System Description
›
Electronic Control System
›
PCM A/T Control System Electrical Connections - K24Z6 Engine
PCM A/T Control System Electrical Connections - K24Z6 Engine

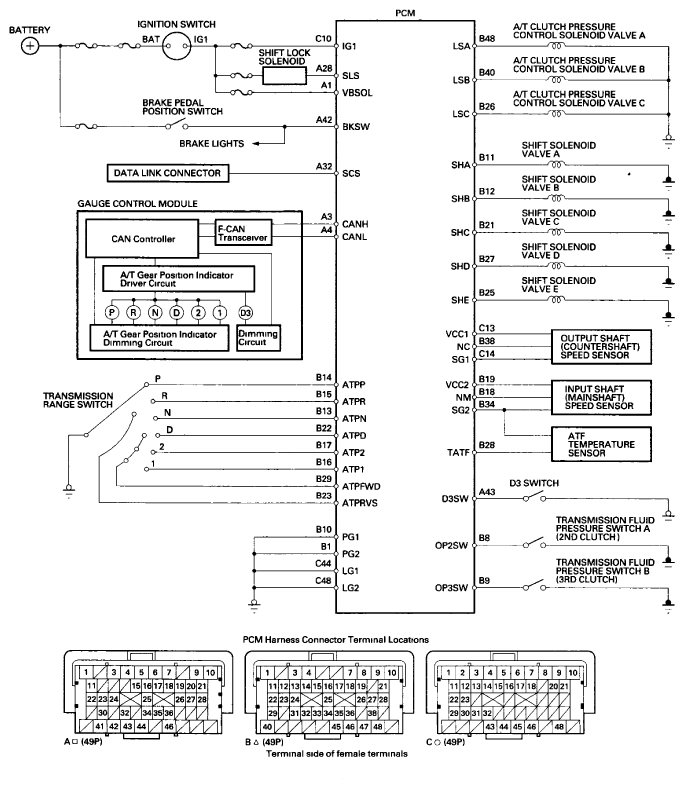

Fig 1: PCM A/T Control System Electrical Connections Diagram - K24Z6 Engine
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
