Exploded View

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

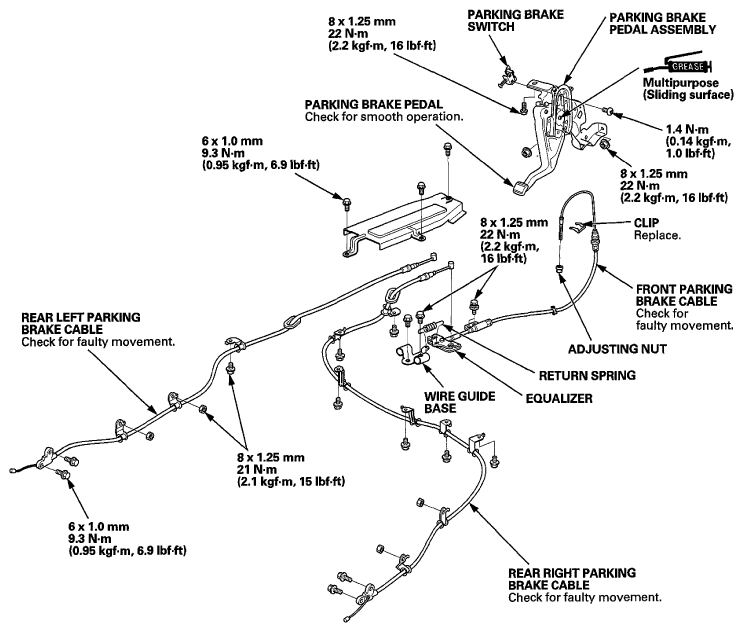

Fig 1: Exploded View Of Parking Brake Cable With Torque Specifications
G06969759Courtesy of AMERICAN HONDA MOTOR CO., INC.
NOTE:
  • The parking brake cables must not be bent or distorted. This will lead to stiff operation and premature cable failure.
  • Refer to the EXPLODED VIEW  as needed during these procedures.
