EX and SC Models With Navigation

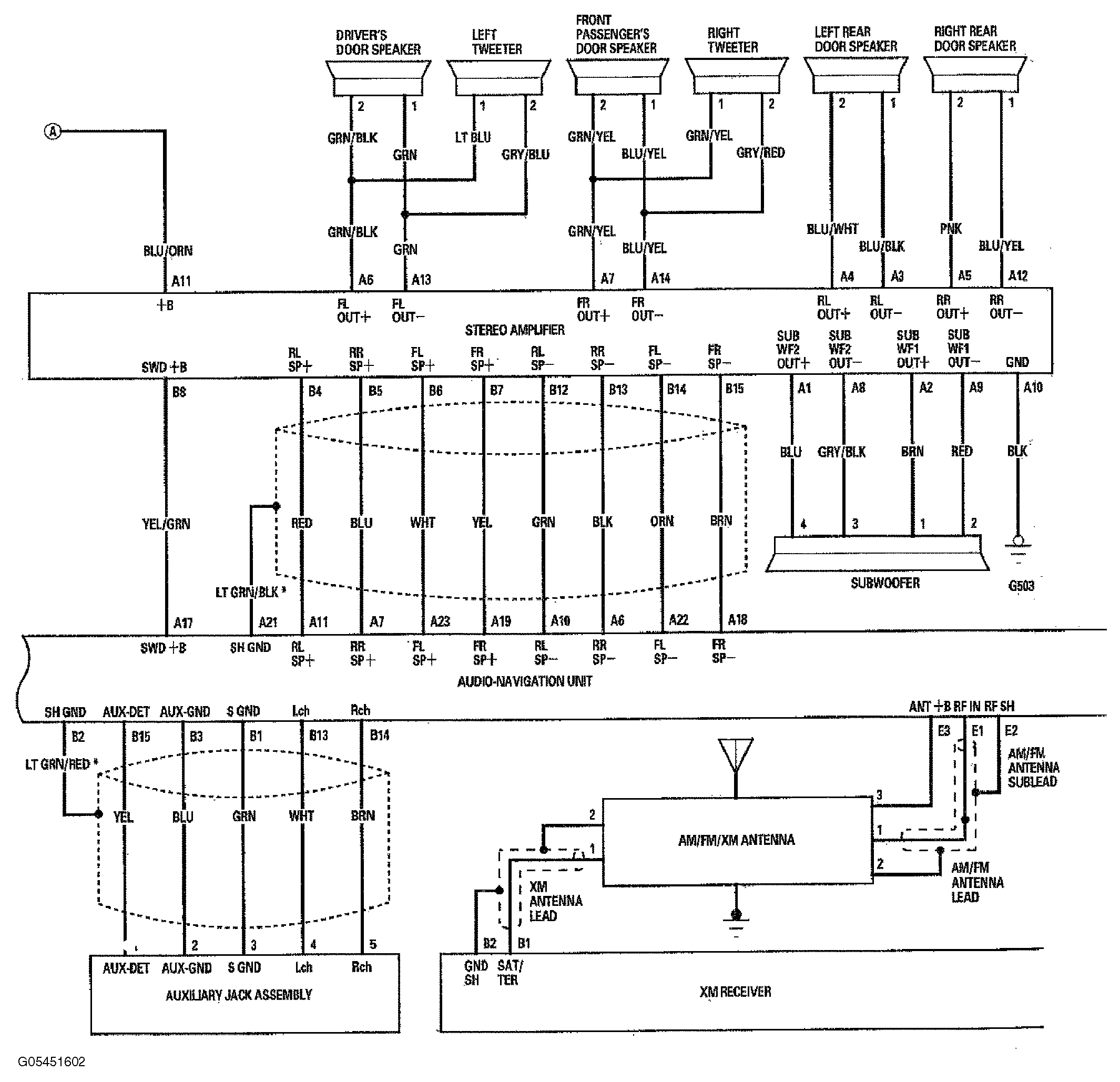

Fig 1: Identifying Audio System Circuit Diagram - EX & SC Models With Navigation (1 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

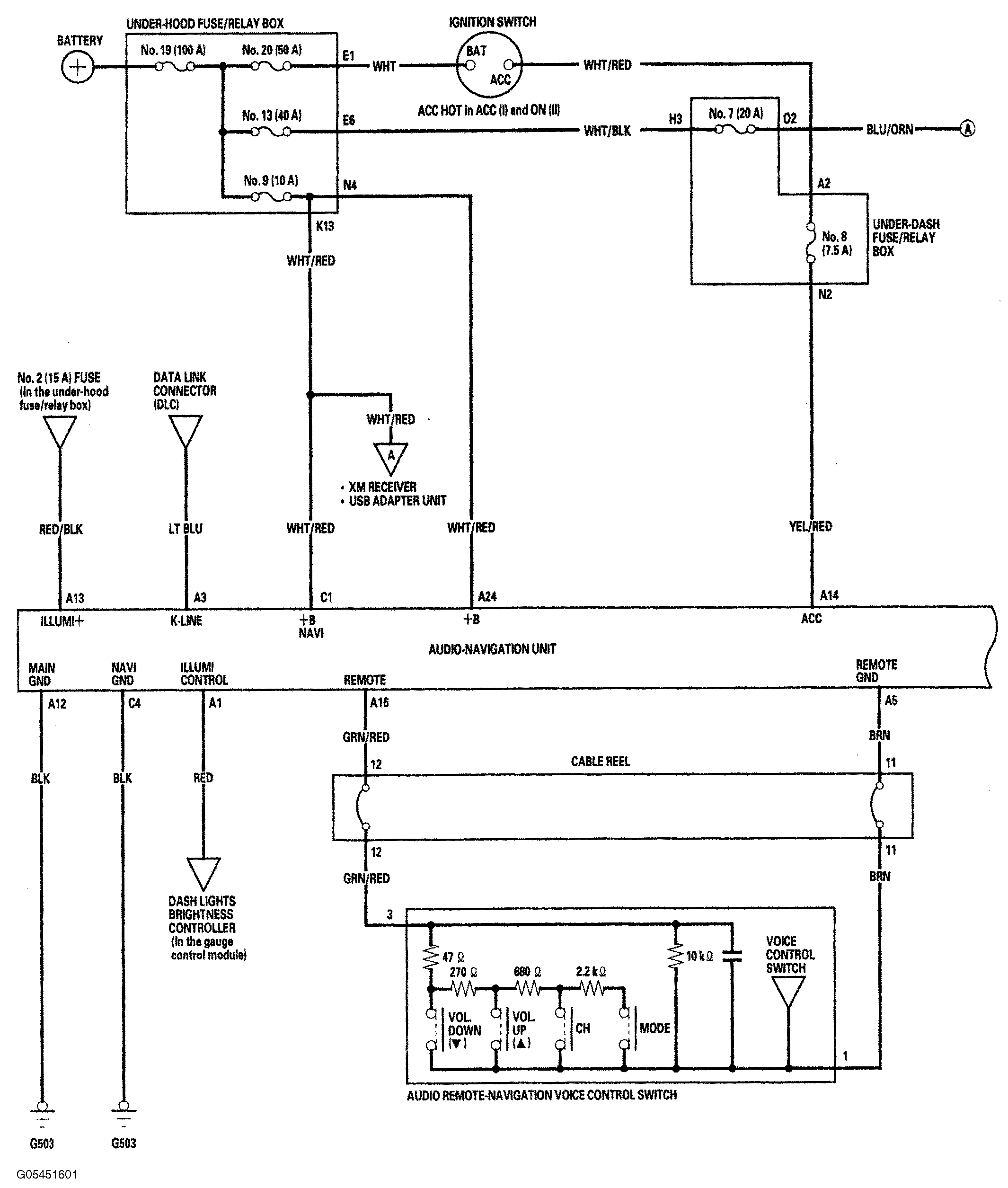

Fig 2: Identifying Audio System Circuit Diagram - EX & SC Models With Navigation (2 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

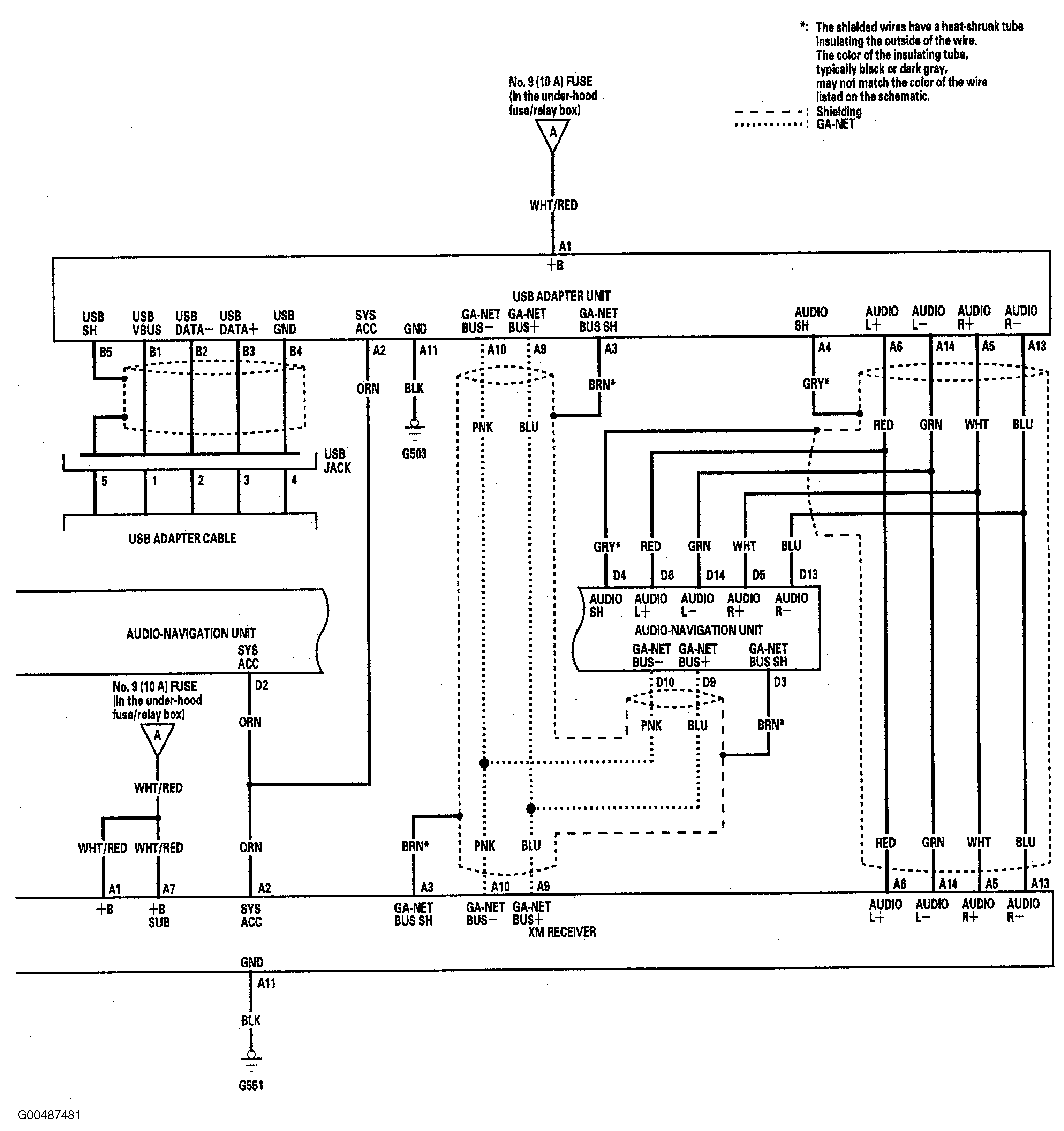

Fig 3: Identifying Audio System Circuit Diagram - EX & SC Models With Navigation (3 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
