A/T Controls

NOTE: For connector or component location "PHOTO", see OEM-COMPONENT LOCATION . For connector "VIEW", see OEM CONNECTOR END VIEWS .

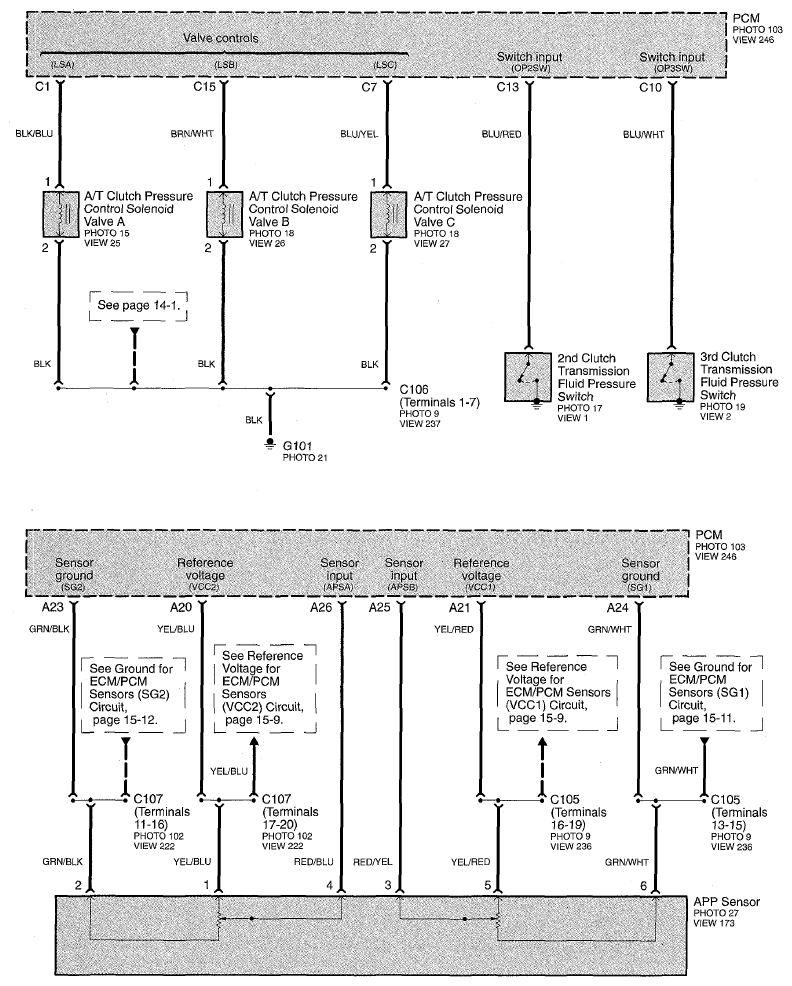

Fig 1: A/T Controls Circuit Diagram (Page 39)

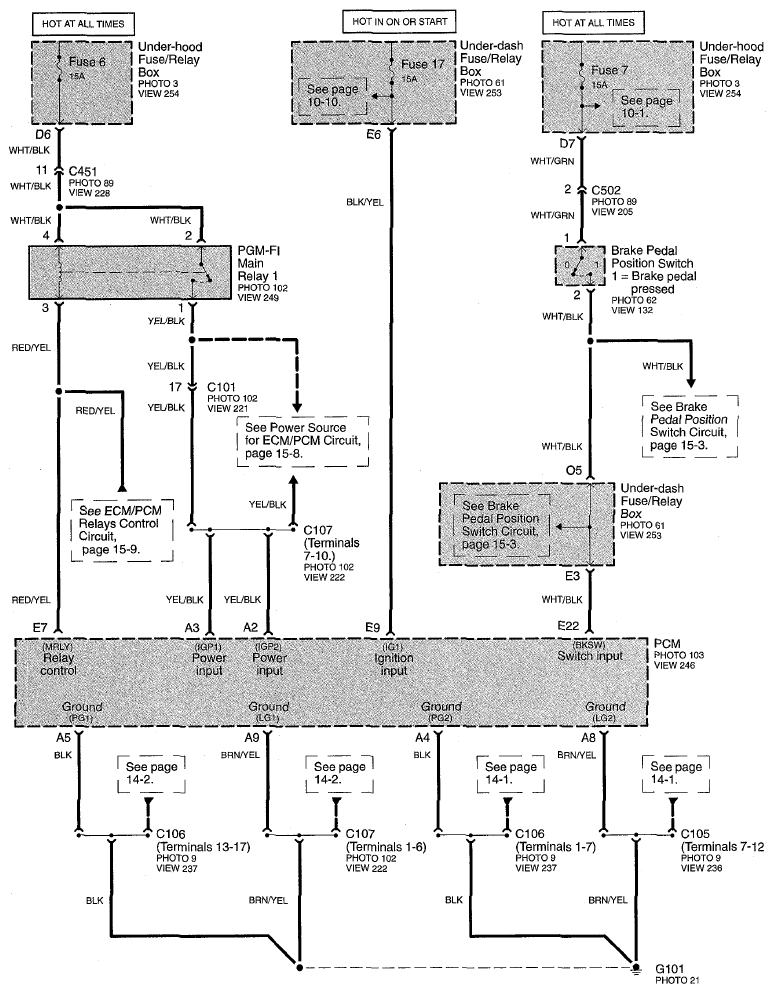

Fig 2: A/T Controls Circuit Diagram (Page 39-1)

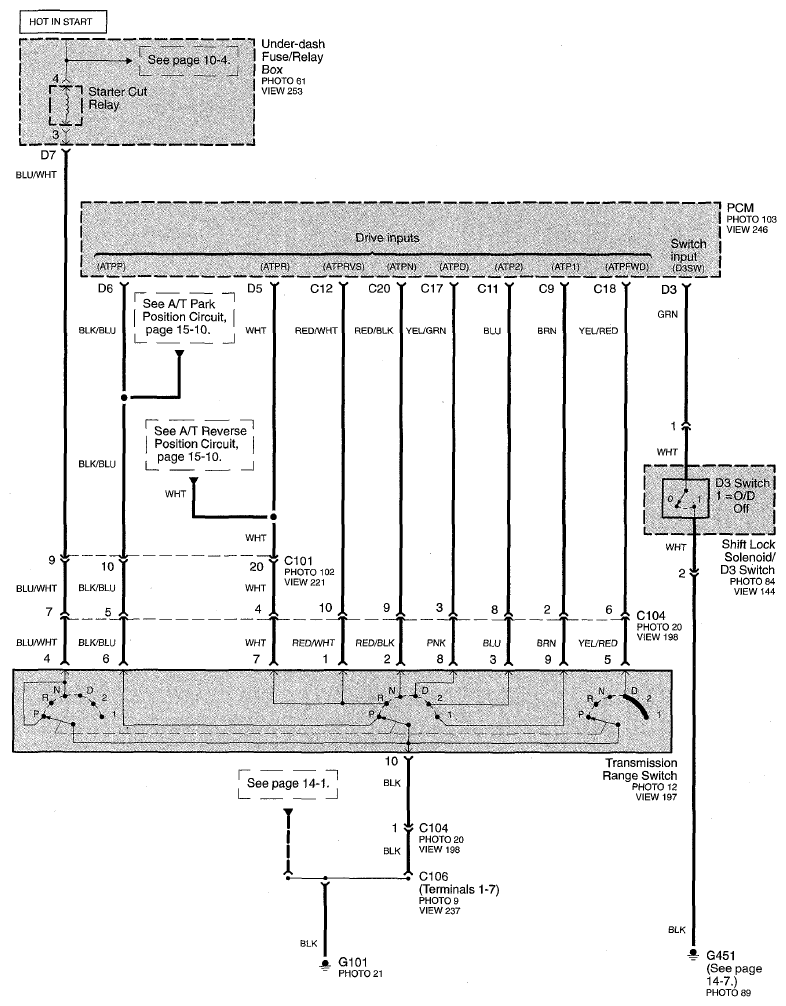

Fig 3: A/T Controls Circuit Diagram (Page 39-2)

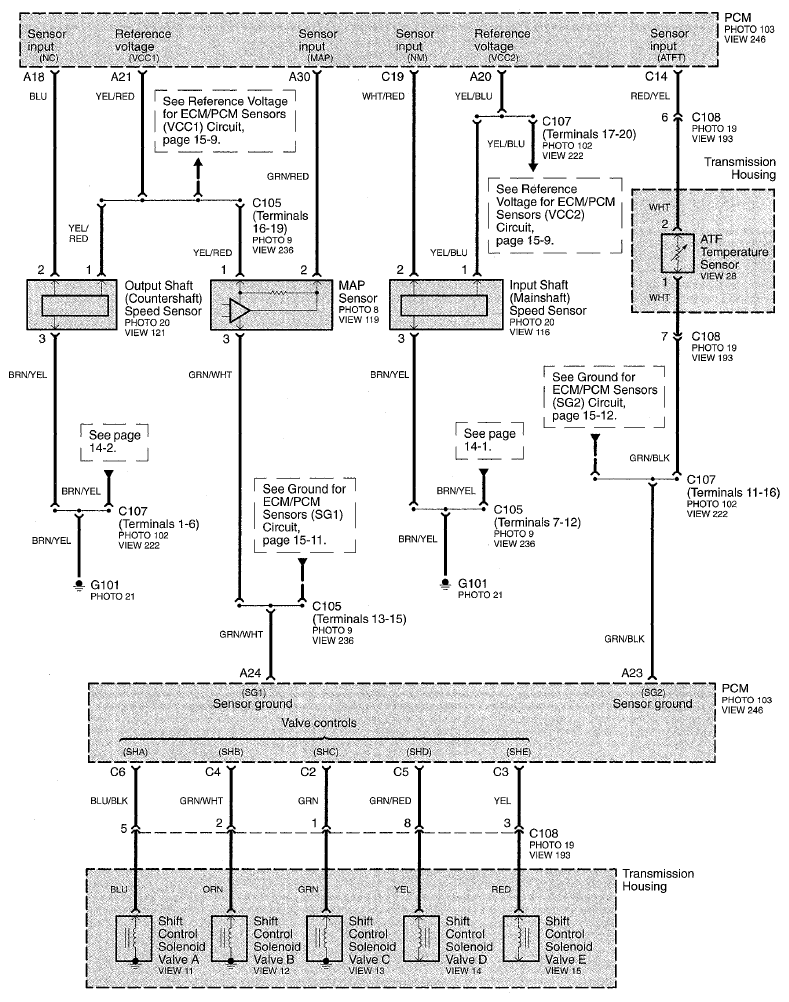

Fig 4: A/T Controls Circuit Diagram (Page 39-3)
