Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM Circuit Diagrams
›
Audio System
›
Navigation
Audio System: Navigation

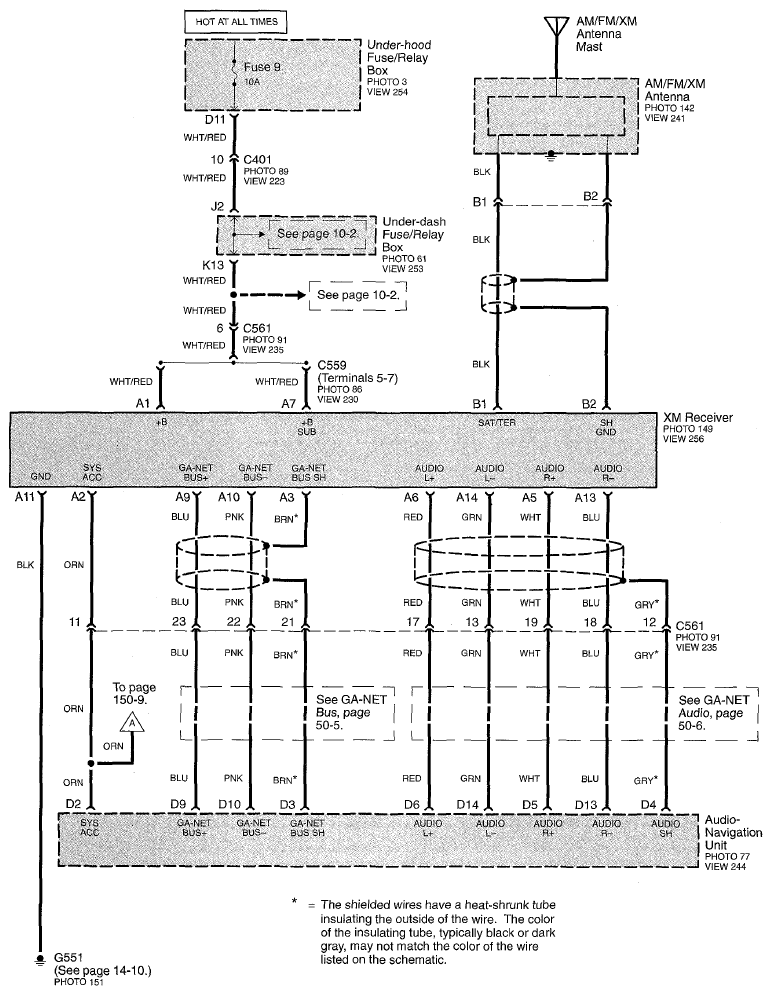

Fig 1: Audio System (Navigation) Circuit Diagram (Page 150-5)

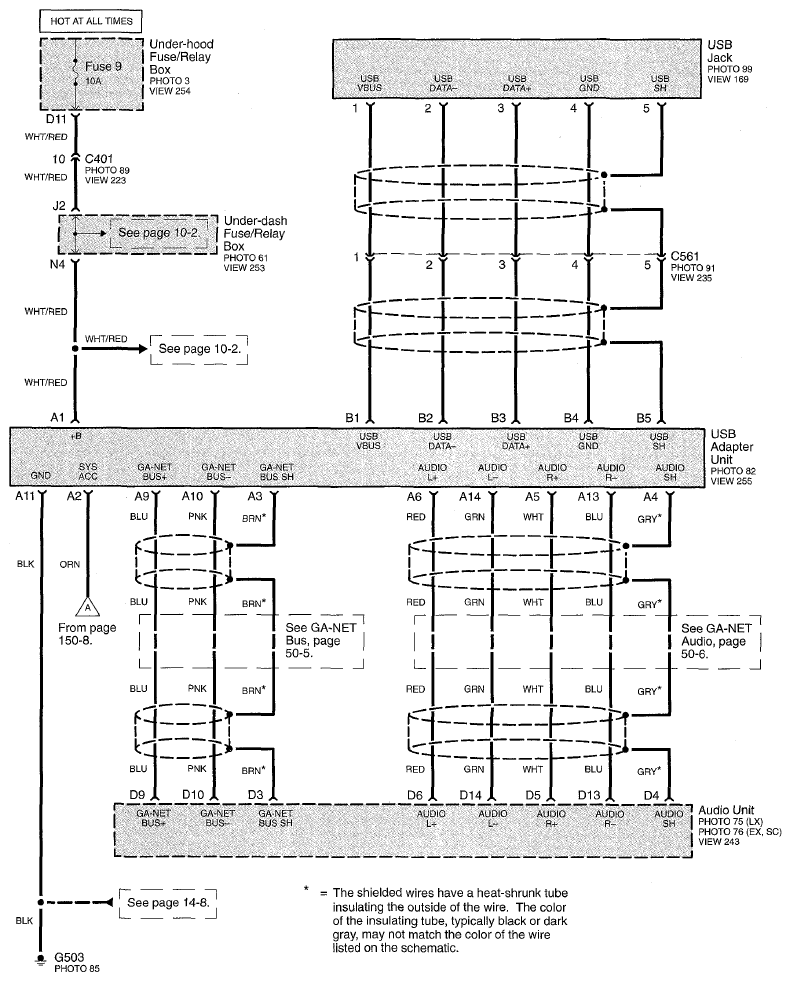

Fig 2: Audio System (Navigation) Circuit Diagram (Page 150-6)

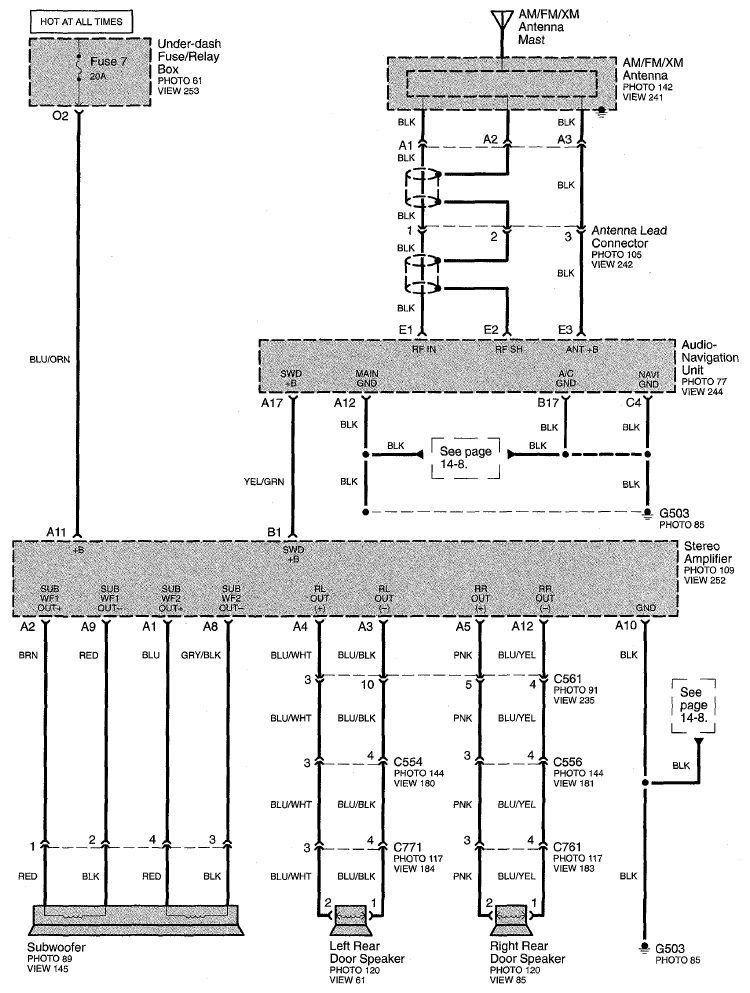

Fig 3: Audio System (Navigation) Circuit Diagram (Page 150-7)

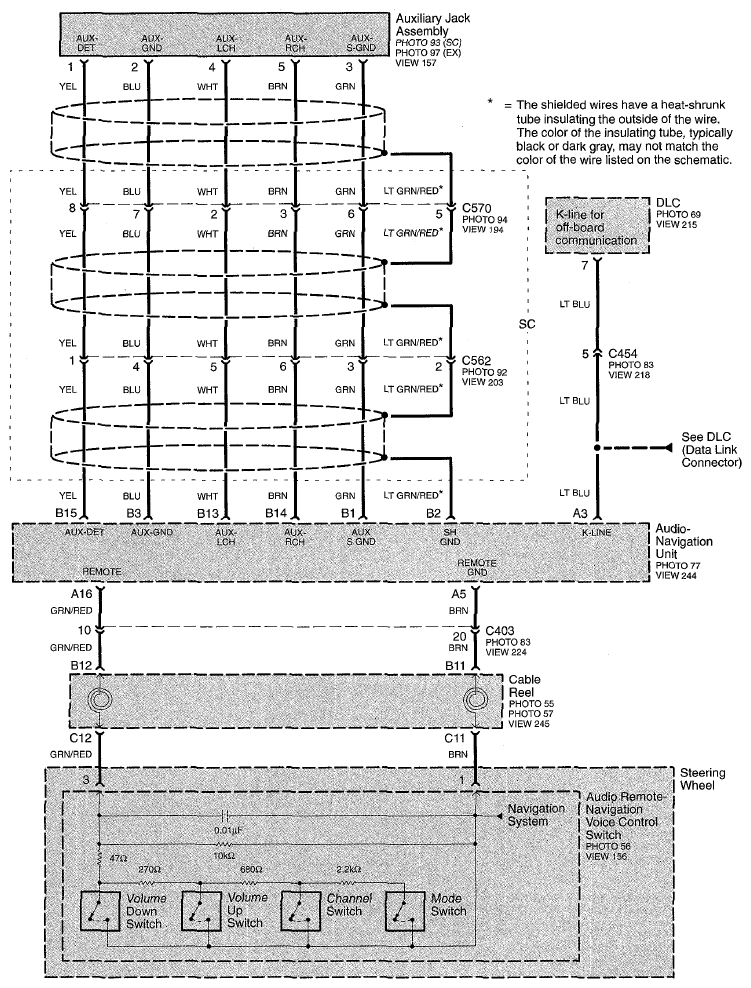

Fig 4: Audio System (Navigation) Circuit Diagram (Page 150-8)

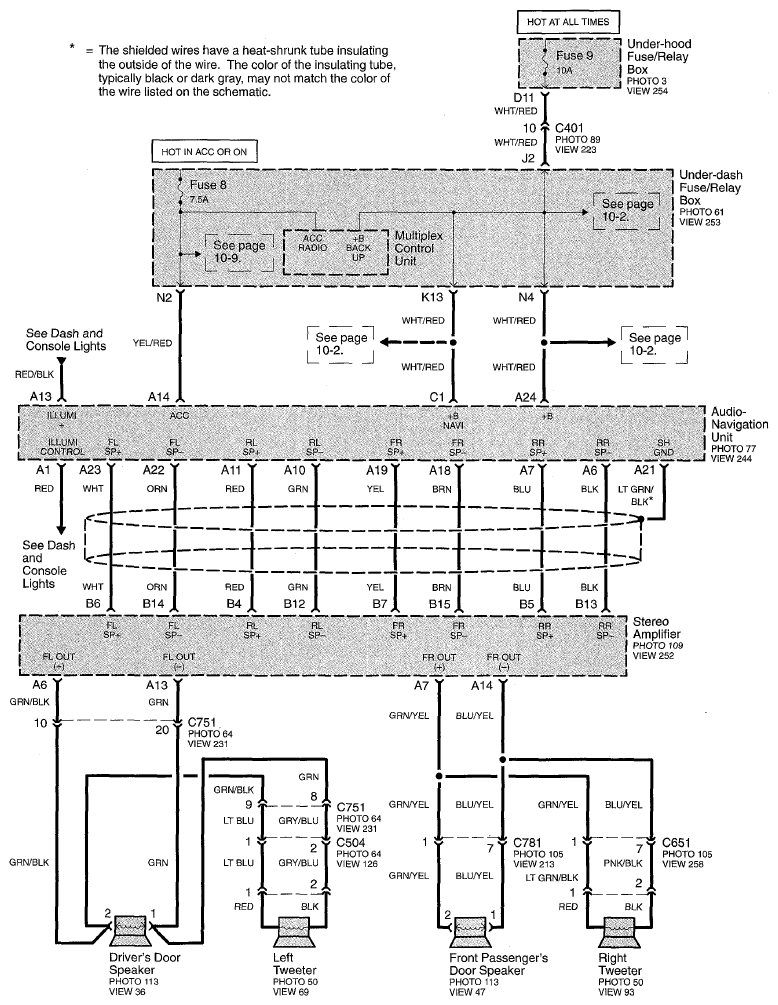

Fig 5: Audio System (Navigation) Circuit Diagram (Page 150-9)
