Passenger's Air Mix Control Motor Replacement

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Remove the glove box (see GLOVE BOX REMOVAL/INSTALLATION ) and the passenger's dashboard undercover (see PASSENGER'S DASHBOARD UNDERCOVER REMOVAL/INSTALLATION ).
With cool box: Remove the cool box inlet hose (A).

Fig 1: Identifying Cool Box Inlet Hose
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Detach the wire harness clips (A), then remove the self-tapping screw (B), the self-tapping screws (C), and the passenger's heater duct and cover (D).

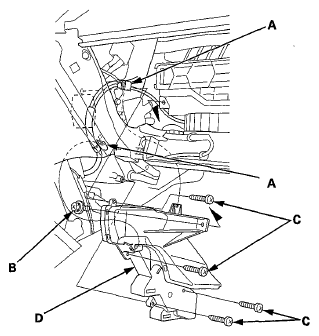

Fig 2: Identifying Wire Harness Clips, Self-Tapping Screw Passenger's, Heater Duct And Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the 7P connector (A) from the passenger's air mix control motor (B). Remove the self-tapping screws and the passenger's air mix control motor from the heater unit.

Fig 3: Identifying Passenger's Air Mix Control Motor And Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Make sure the air mix door and linkage move smoothly. Then install the motor in the reverse order of removal. Make sure the pin on the motor is properly engaged with the linkage. After installation, make sure the motor runs smoothly.
