Evaporator Temperature Sensor Replacement

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the connector (A) from the evaporator temperature sensor (B), then detach the connector clip (C). Remove the self-tapping screw and the evaporator temperature sensor.

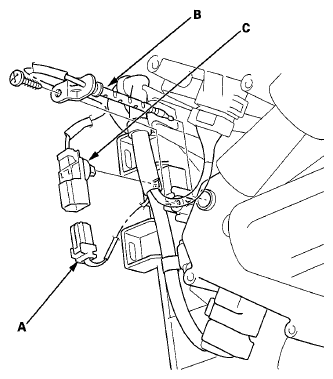

    Fig 1: Identifying Evaporator Temperature Sensor With Connector And Connector Clip
    G06968247Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the sensor in the reverse order of removal.
